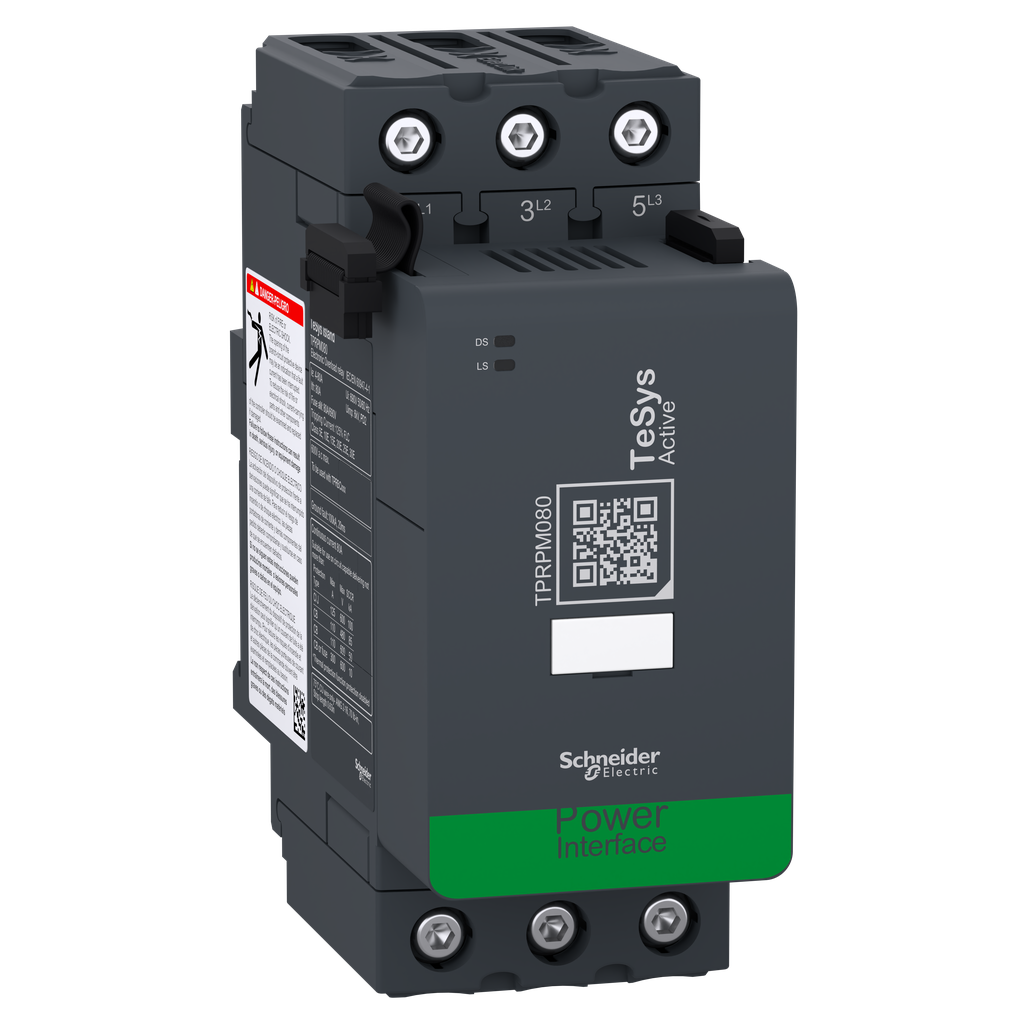

TPRPM080 - Power module, TeSys island, 80A at AC-1, 80A at AC-3, 37kW, 50hp

TPRPM080

Power module, TeSys island, 80A at AC-1, 80A at AC-3, 37kW, 50hp

TeSys island power module, 3 poles, 80A/690V. Connected to a TPRBC bus coupler it protects and monitors loads up to 80A and motors up to 37kW@400V / 40hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 4-80A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	United States
Width	55 mm
Height	136 mm
Weight	0.425 kg
Current Consumption	60 mA
[Ue] Rated Operational Voltage	<= 690 V AC 47...63 Hz
Power Dissipation In W	2.3 W at Ie AC-3
Range Of Product	TeSys
Reset	remotely or automatically
[Ith] Conventional Free Air Thermal Current	80 A (at 50 °C)
[Uc] Control Circuit Voltage	24 V DC supplied by the bus coupler
Product Or Component Type	power module
Product Name	TeSys island
Thermal Overload Class	class 5…30
[Uimp] Rated Impulse Withstand Voltage	6 kV
Device Presentation	power module connected to an automation controller through a bus coupler operational only when connected to a bus coupler
Function Available	upstream voltage presence detection electronic thermal overload protection monitoring of currents control of third party power devices when associated to TPRDG IO module
[Ie] Rated Operational Current	80 A (at <50 °C) at <= 440 V AC-3 80 A (at <50 °C) at <= 440 V AC-1 80 A (at <50 °C) AC-3e
Thermal Protection Adjustment Range	4-80 A
Product Compatibility	TPRBC bus coupler TPRDG digital IO module TPRAN analog IO module
Overvoltage Category	III
Maximum Horse Power Rating	5 hp at 120 V AC 60 Hz for 1 phase motors 10 hp at 240 V AC 60 Hz for 1 phase motors 20 hp at 208 V AC 60 Hz for 3 phase motors 20 hp at 240 V AC 60 Hz for 3 phase motors 40 hp at 480 V AC 60 Hz for 3 phase motors 50 hp at 600 V AC 60 Hz for 3 phase motors
Motor Power Kw	22 kW at 230 V AC 50 Hz 37 kW at 380...415 V AC 50 Hz 37 kW at 440 V AC 50 Hz 37 kW at 500 V AC 50 Hz 37 kW at 690 V AC 50 Hz
[Ui] Rated Insulation Voltage	690 V IEC 60947-4-1 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1
Device Short Name	TPRPM
Poles Description	3P
Mounting Mode	horizontal and vertical 35 mm symmetrical DIN rail)
Height	136 mm
Product Certifications	CCC UL EAC CSA
Standards	EN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
Connections - Terminals	EverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)rigid EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)rigid EverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)flexible without cable end EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)flexible without cable end EverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)flexible with cable end EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)flexible with cable end
Net Weight	0.425 kg
Metering Type	time device ON number of faults number of device power cycles average current Iavg average voltage Vavg max current Imax max voltage Vmax
Local Signalling	for DS (device status) 1 LED (green/red) for LS (load status) 1 LED (green/red)
Width	55 mm
Depth	125 mm
Tightening Torque	5-5 N.m 1-25 mm² hexagonal 4 mm 8-8 N.m 25-35 mm² hexagonal 4 mm
Protection Type	thermal overload protection motor overheat overcurrent undercurrent jam long start stall rapid cycle lockout rapid restart lockout phase reversal phase loss phase sequence phase unbalance ground current
Ambient Air Temperature For Operation	-10-50 °C without derating 50-60 °C with current derating
Shock Resistance	15 gn 11 ms) IEC 60068-2-27
Vibration Resistance	1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 1 gn 13-200 Hz) IEC 60068-2-6
Electromagnetic Compatibility	electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
Pollution Degree	2
Ambient Air Temperature For Storage	-25-70 °C
Protective Treatment	TC
Relative Humidity	5-95 %
Ip Degree Of Protection	IP20
Operating Altitude	0...6561.68 ft (0...2000 m) without derating
Fire Resistance	960 °C UL 94 850 °C IEC 60695-2-1 650 °C IEC 60695-2-12
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1904009EN
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1904009EN
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
