TPRDG4X2 - Digital IO module, TeSys island, 4 inputs, 2 outputs, 24VDC

TPRDG4X2

Digital IO module, TeSys island, 4 inputs, 2 outputs, 24VDC

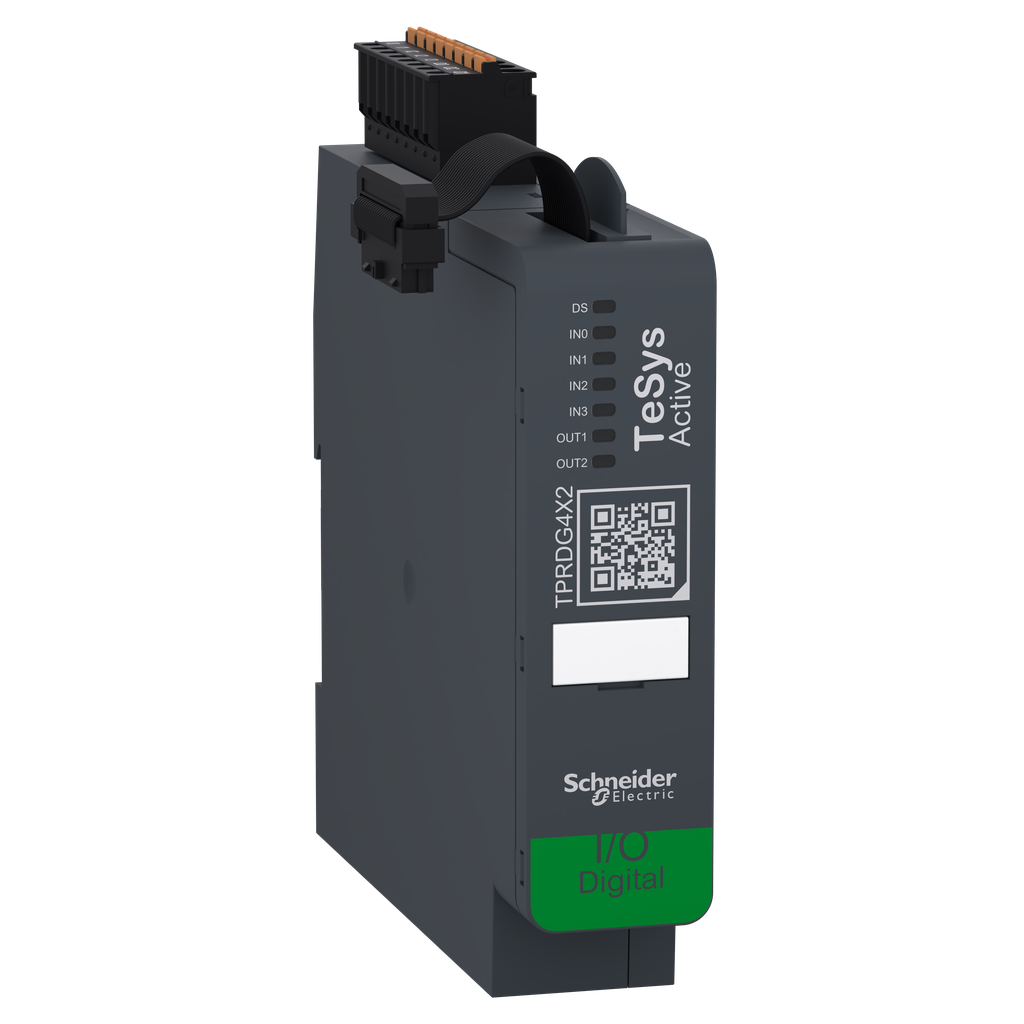

TeSys island digital IO module, 4 digital inputs 24V DC, 2 digital outputs 24V DC. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). It can be used to control external power switching devices when associated to a TPRPM power module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-10-60 °C
Ip Degree Of Protection	IP20
Shock Resistance	15 gn 11 ms) IEC 60068-2-27
Vibration Resistance	1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 1 gn 13-200 Hz) IEC 60068-2-6
Electromagnetic Compatibility	electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Pollution Degree	2
Ambient Air Temperature For Storage	-25-70 °C
Protective Treatment	TC
Relative Humidity	5-95 %
Operating Altitude	0...6561.68 ft (0...2000 m) without derating
Fire Resistance	960 °C UL 94
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1904009EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1904009EN
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Mounting Mode	horizontal and vertical 35 mm symmetrical rail)
[Us] Rated Supply Voltage	24 V DC supplied by the bus coupler
Height	118 mm
Product Certifications	UL CSA EAC (pending)
Standards	IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201
Connections - Terminals	input/output circuit removable spring terminal block 8 0.2-2.5 mm² AWG 24...AWG 14)rigid input/output circuit removable spring terminal block 8 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end input/output circuit removable spring terminal block 8 0.25-2.5 mm² AWG 22...AWG 14)flexible with cable end
Power Dissipation In W	0.5 W maximum
Net Weight	0.136 kg
Current Consumption	10 mA
Width	25 mm
[Uimp] Rated Impulse Withstand Voltage	0.5 kV IEC 61010-1
Depth	114 mm
Country of Origin	United States
Width	25 mm
Height	118 mm
Weight	0.136 kg
Discrete Input Logic	positive or negative, 0...5 V, 15...28.8 V
Discrete Output Logic	source or sink
Discrete Output Number	2 isolated with common point
Discrete Input Voltage	24 V DC 19.2...28.8 V)
Response Time	5 ms at 24 V digital input 5 ms at 24 V digital output
Protection Type	1 external fuse, 0.5 A fast each output
Discrete Output Voltage	24 V DC 19.2...28.8 V)
Discrete Input Number	4 isolated with common point conforming to IEC 61131-2 Type 1
Product Or Component Type	digital IO module
Product Name	TeSys island
Discrete Output Current	0.5 A maximum
Range	TeSys
Device Presentation	IO module providing 4 digital inputs and 2 digital outputs enabling advanced control functions in a TeSys island system control of third parties power devices when associated to a TPRPM power module operational only when connected to a bus coupler TPRBC
Product Compatibility	TPRBC bus coupler TPRPM power module
Local Signalling	for DS (device status) 1 LED (green/red) for I0 (input 1 status) 1 LED (green) for I1 (input 2 status) 1 LED (green) for I2 (input 3 status) 1 LED (green) for I3 (input 4 status) 1 LED (green) for Q0 (output 1 status) 1 LED (green) for Q1 (output 2 status) 1 LED (green)
Input Impedance	3.43 kOhm
Discrete Input Current	7 mA 24 V
Function Of Module	control of 4 sink/source digital inputs with common point control of 2 sink/source digital outputs with common point
Device Short Name	TPRDG
