Home > Schneider Electric > Contactors and Protection Relays > Motor management system > TeSys island > TPRBCEIP – Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)

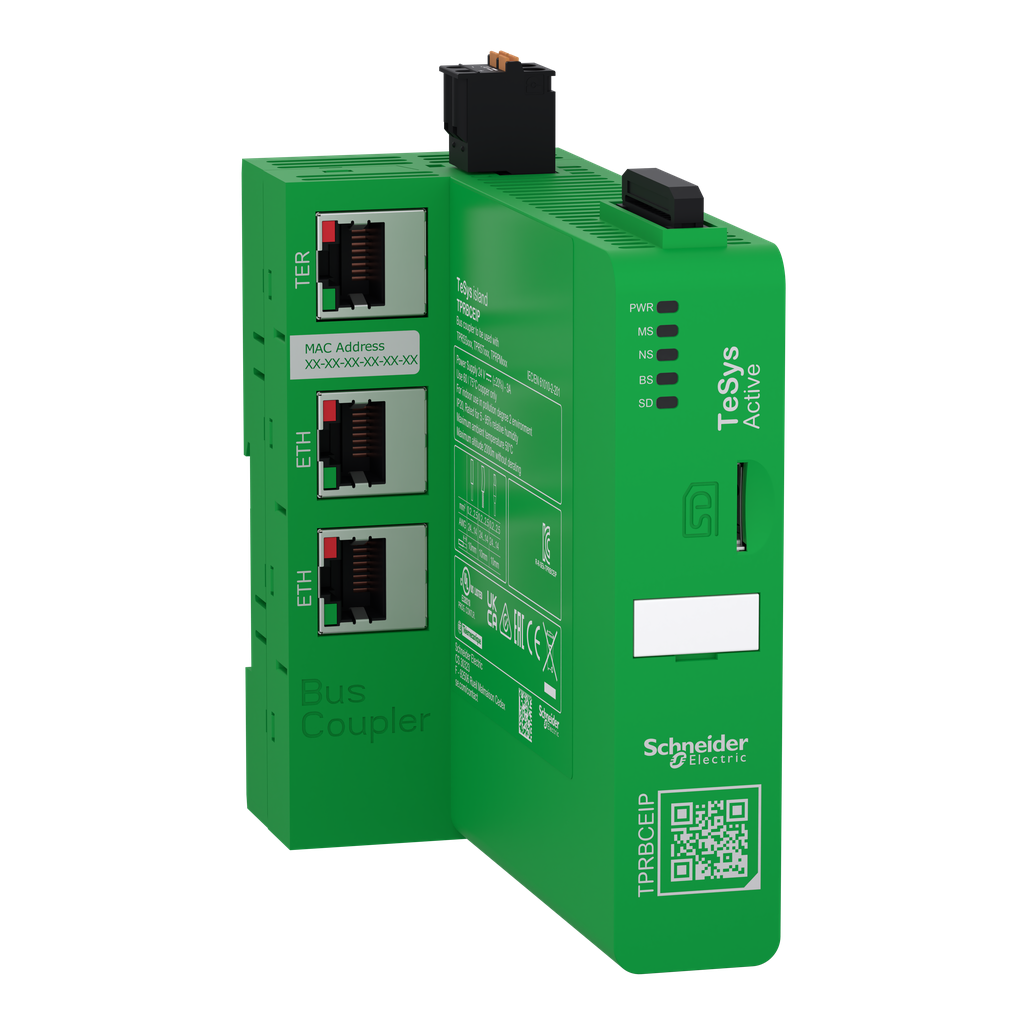

TPRBCEIP – Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)
TPRBCEIP
Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)

TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over EtherNet/IP or Modbus TCP. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for EtherNet/IP or Modbus TCP, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified, Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation -10-60 °C
Shock Resistance 15 gn 11 ms) IEC 60068-2-27
Vibration Resistance
  • 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6
  • 1 gn 13-200 Hz) IEC 60068-2-6
Electromagnetic Compatibility
  • electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
  • radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3
  • communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4
  • power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4
  • communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5
  • power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Pollution Degree 2
Ambient Air Temperature For Storage -25-70 °C
Protective Treatment TC
Relative Humidity 5-95 %
Ip Degree Of Protection IP20
Operating Altitude 0...6561.68 ft (0...2000 m) without derating
Fire Resistance 960 °C UL 94
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1904009EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI1904009EN
Eu Rohs Directive Compliant with Exemptions
Halogen Content Performance Halogen free plastic parts product
Mounting Mode horizontal and vertical 35 mm symmetrical rail)
Height 118 mm
Product Certifications
  • UL
  • CSA
  • EAC
  • Achilles level 2
Standards
  • EN/IEC 60947-4-1
  • CSA C22.2 No 61010-2-201
  • UL 61010-2-201
  • EN/IEC 61010-2-201
Connections - Terminals power supply removable spring terminal block 2 2.5-2.5 mm² AWG 14)rigid or flexible
Net Weight 0.204 kg
Cybersecurity Achilles certified
Width 50 mm
Depth 114 mm
Country of Origin Singapore
Width 50 mm
Height 118 mm
Weight 0.204 kg
Rated Current 3 A maximum
Exchange Mode half duplex, full duplex, autonegotiation Ethernet
Protection Type
  • external fuse, 3 A fast power supply
  • reverse polarity protection power supply
Product Or Component Type bus coupler
Product Name TeSys island
Local Signalling
  • 1 LED green/yellow PWR power supply status
  • 1 LED green/red MS module status
  • 1 LED green/red NS network status
  • 1 LED green/red BS internal bus status
  • 1 LED green/red SD SD card access (SD)
Power Dissipation In W 7 W maximum
Range TeSys
Device Presentation
  • point of connection between a group of starters and an automation controller
  • management of the complete island up to 20 modules
Communication Service
  • Ethernet/IP adapter
  • Modbus TCP server
  • DHCP client
  • BOOTP client
  • SNMP client
  • SNTP client
  • auto MDI/MDX function
Function Available
  • full integration with SoMove/MachineExpert for the programming of the island
  • one single 24V DC power supply for the complete island
  • two fieldbus ports for communication with an automation controller
  • one service port with an embedded webserver for maintenance
Communication Port Protocol
  • EtherNet/IP
  • Modbus TCP
Product Compatibility
  • TPRST motor starter
  • TPRSS SIL motor starter
  • TPRPM power module
  • TPRSM SIL interface module
  • TPRVM voltage interface module
  • TPRAN analog IO module
  • TPRDG digital IO module
Supply Voltage Limits 20.4-28.8 V DC
Integrated Connection Type
  • 2 RJ45 female Ethernet IP/Modbus TCP 10/100BASE-T, fieldbus port
  • 1 RJ45 female Ethernet TCP/IP, service port
  • 1 micro SD card port
[Us] Rated Supply Voltage 24 V DC
Device Short Name TPRBC
