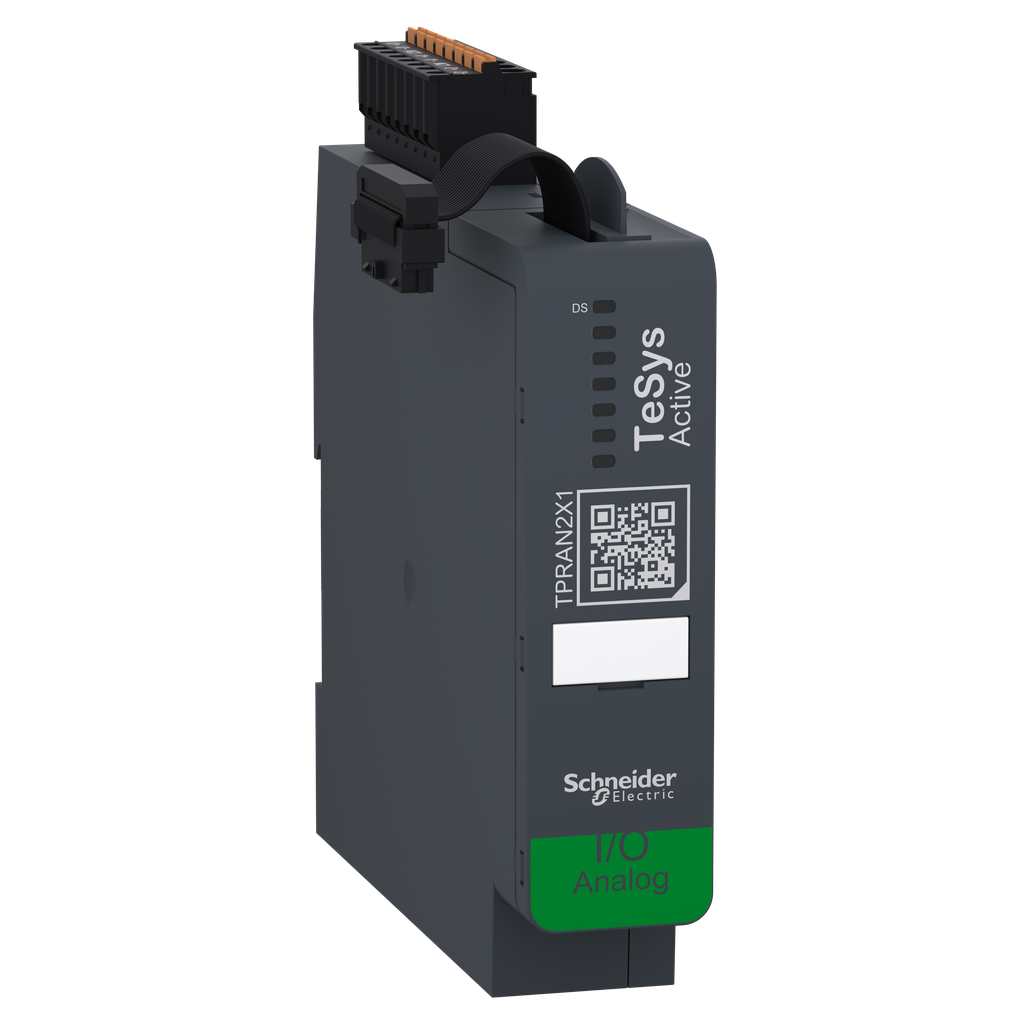

TPRAN2X1 – Analog IO module, TeSys island, 2 inputs, 1 output, 24VDC, Twisted shielded pairs cable
TPRAN2X1
Analog IO module, TeSys island, 2 inputs, 1 output, 24VDC, Twisted shielded pairs cable

TeSys island analog IO module, 2 analog inputs, 1 analog output. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). Two analog inputs can be configured for measurement of voltage (-10/+10V, 0/+10V), current (0-20mA, 4-20mA) or temperature probes (Ni, Pt, thermocouples). One analog output can be configured for driving voltage source (-10/+10V, 0/+10V) or current source (0-20mA, 4-20mA). Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation -10-60 °C
Ip Degree Of Protection IP20
Shock Resistance 15 gn 11 ms) IEC 60068-2-27
Vibration Resistance
  • 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6
  • 1 gn 13-200 Hz) IEC 60068-2-6
Electromagnetic Compatibility
  • electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
  • radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3
  • fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4
  • surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Pollution Degree 2
Ambient Air Temperature For Storage -25-70 °C
Protective Treatment TC
Relative Humidity 5-95 %
Operating Altitude 0...6561.68 ft (0...2000 m) without derating
Fire Resistance 960 °C UL 94
Warranty 18 months
Mercury Free Yes
Environmental Disclosure ENVPEP1904009EN
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI1904009EN
Eu Rohs Directive Compliant with Exemptions
Halogen Content Performance Halogen free plastic parts product
Mounting Mode horizontal and vertical 35 mm symmetrical rail)
[Us] Rated Supply Voltage 24 V DC supplied by the bus coupler
Height 118 mm
Product Certifications
  • UL
  • CSA
  • EAC (pending)
Standards
  • IEC 61010-2-201
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
Connections - Terminals
  • input/output circuit removable spring terminal block 8 0.2-2.5 mm² AWG 24...AWG 14)rigid
  • input/output circuit removable spring terminal block 8 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end
  • input/output circuit removable spring terminal block 8 0.25-2.5 mm² AWG 22...AWG 14)flexible with cable end
Power Dissipation In W 0.5 W maximum
Net Weight 0.172 kg
Current Consumption 160 mA
Width 25 mm
[Uimp] Rated Impulse Withstand Voltage 0.5 kV IEC 61010-1
Depth 114 mm
Country of Origin Indonesia
Width 25 mm
Height 118 mm
Weight 0.172 kg
Analogue Output Number 1 isolated
Input Impedance
  • <= 50 Ohm current
  • >= 1 MOhm voltage
  • >= 1 MOhm thermocouple
  • >= 1 MOhm temperature probe
Type Of Cable twisted shielded pairs cable <30 m input/output
Analogue Output Type
  • current 4...20 mA
  • current 0...20 mA
  • voltage 0...10 V
  • voltage - 10...10 V
Product Or Component Type analog IO module
Analogue Input Resolution 15 bits + sign full scale
Product Name TeSys island
Range TeSys
Device Presentation
  • IO module providing 2 analog inputs and 1 analog output
  • enabling advanced control functions in a TeSys island system
  • operational only when connected to a bus coupler TPRBC
Analogue Input Number 2 isolated with common point
Product Compatibility TPRBC bus coupler
Local Signalling for DS (device status) 1 LED (green/red)
Analogue Output Resolution
  • 12 bits, 4...20 mA full scale
  • 12 bits, 0...20 mA full scale
  • 12 bits, 0...10 V full scale
  • 11 bits + sign, - 10...10 V full scale
Function Of Module
  • measurement of voltage, current or temperature on 2 configurable analog inputs
  • driving voltage or current source on 1 configurable analog output
Device Short Name TPRAN
Measurement Accuracy
  • +/- 0.1 % of full scale voltage 25-25 °C
  • +/- 0.1 % of full scale current 25-25 °C
  • +/- 0.1 % of full scale temperature probe 25-25 °C
  • +/- 0.1 % of full scale in positive temperature range thermocouple 25-25 °C
  • +/- 0.4 % of full scale in negative temperature range thermocouple 25-25 °C
Analogue Input Type
  • current 4...20 mA
  • current 0...20 mA
  • voltage 0...10 V
  • voltage - 10...10 V
  • temperature probe - 60...180 °C Ni 100
  • temperature probe - 60...180 °C Ni 1000
  • temperature probe -200...+850 °C Pt 100
  • temperature probe - 200...600 °C Pt 1000
  • thermocouple - 200...1000 °C thermocouple J
  • thermocouple - 200...1300 °C thermocouple K
  • thermocouple 0...1760 °C thermocouple R
  • thermocouple 0...1760 °C thermocouple S
  • thermocouple 0...1820 °C thermocouple B
  • thermocouple - 200...400 °C thermocouple T
  • thermocouple - 200...1300 °C thermocouple N
  • thermocouple - 200...800 °C thermocouple E
  • thermocouple 0...2315 °C thermocouple C
