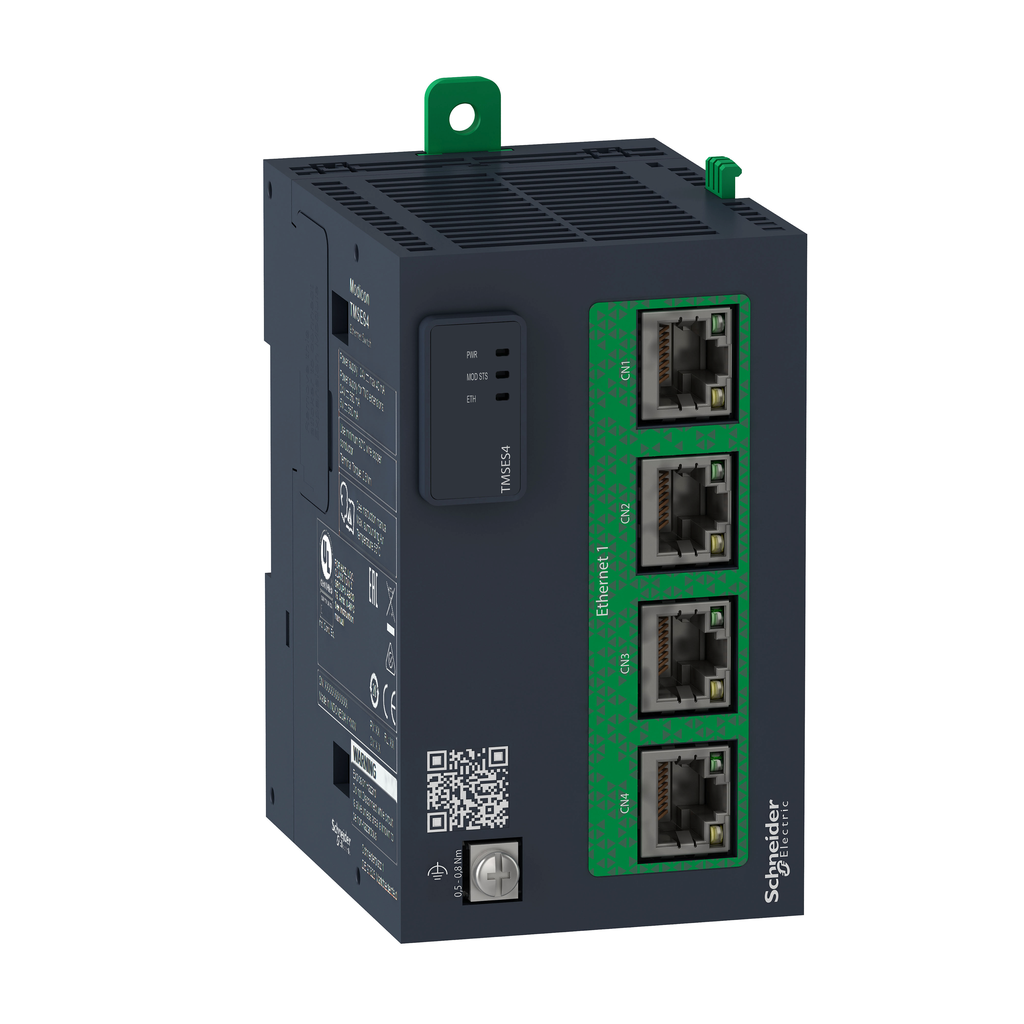

TMSES4 – smart communication module, Modicon M262, Ethernet, 4 RJ45
TMSES4
smart communication module, Modicon M262, Ethernet, 4 RJ45

This smart communication module for Modicon M262 motion controllers is designed to provide 4 additional Ethernet accesses to the controllers. TMSES4 benefits from cloud apps, analytics, allows connection to other Schneider/third-party cloud platforms with MQTT/HTTP protocols, JSON, TLS encryption. It embeds 4 Ethernet based networks (Ethernet/IP adapter, DHCP client, IEC VAR ACCESS, Modbus TCP server, SNMP, FTP client/server, SQL client, Web server. Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. TMS4 smart communication module figures self speed adaptation (10, 100, 1000mbps), Half or full duplex service, and autocrossing (MDIO). It is possible to connect up to three Ethernet smart communication modules on a motion controller, the power supply is embedded on the communication bus. It measures 60mm width, 88mm depth, and 100mm height. It weighs 0.403kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This smart communication module is compatible with Modicon M262 logic/motion controllers. It is configured by EcoStruxure Machine Expert software. TMSES4 smart communication module installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Services
  • self speed adaptation (10-100-1000 Mbits)
  • half or full duplex
  • autocrossing (MDIO)
Height 100 mm
Communication Service
  • Ethernet/IP adapter
  • DHCP client
  • IEC VAR ACCESS
  • Modbus TCP server
  • SNMP client/server
  • FTP client/server
  • SQL client
  • send and receive email from the controller based on TCP/UDP library
  • web server
  • OPC UA server
  • DNS client
  • MQTT
  • SNTP
  • TLS
Port Ethernet 10/100/1000 BASE-TX - 4 RJ45
Current Consumption 200 mA 24 V
Communication Port Protocol Ethernet
Mounting Support
  • top hat type TH35-15 rail IEC 60715
  • top hat type TH35-7.5 rail IEC 60715
  • plate or panel with fixing kit
Local Signalling
  • for PWR 1 LED (green)
  • for MOD STS 1 LED
  • for ETH 1 LED
Range Compatibility Modicon M262
Web Services web server
Width 60 mm
Number Of Module Per Plc
  • 1 maximum per logic controller
  • 1 maximum per motion controller
Depth 88.3 mm
Product Certifications
  • CE
  • cULus
  • RCM
  • EAC (pending)
  • Achilles
Resistance To Conducted Disturbances
  • 10 V 0.15...80 MHz IEC 61000-4-4
  • 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)
  • 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields
  • 10 V/m 80 MHz...1 GHz IEC 61000-4-3
  • 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3
  • 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Ambient Air Temperature For Operation
  • -20-60 °C horizontal installation
  • -20-50 °C vertical installation
Storage Altitude 0-3000 m
Standards
  • UL 61010-1
  • UL 61010-2-201
  • CSA C22.2 No 61010-1
  • CSA C22.2 No 61010-2-201
  • CSA C22.2 No 213
  • ANSI/ISA 12-12-01
  • IEC 61131-2
  • -
Pollution Degree 2
Shock Resistance 15 gn 11 ms
Vibration Resistance
  • 3.5 mm 2-8.4 Hz symmetrical rail
  • 1 gn 8.4-200 Hz symmetrical rail
  • 3.5 mm 2-8.4 Hz panel mounting
  • 1 gn 8.4-200 Hz panel mounting
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity
  • 10-95 %, without condensation in operation)
  • 10-95 %, without condensation in storage)
Ip Degree Of Protection IP20
Resistance To Electrostatic Discharge
  • 4 kV on contact IEC 61000-4-2
  • 8 kV on air IEC 61000-4-2
Resistance To Fast Transients
  • 2 kV IEC 61000-4-4 power lines)
  • 1 kV IEC 61000-4-4 Ethernet line)
  • 1 kV IEC 61000-4-4 serial link)
  • 1 kV IEC 61000-4-4 input)
  • 1 kV IEC 61000-4-4 transistor output)
Operating Altitude 0...6561.68 ft (0...2000 m)
Electromagnetic Emission
  • conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011
  • conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011
  • radiated emissions 40 dBµV/m A30-230 kHz IEC 55011
  • conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011
  • radiated emissions 47 dBµV/m A230-1000 MHz IEC 55011
Country of Origin Indonesia
Width 60 mm
Height 100 mm
Range Of Product Modicon M262
Product Or Component Type smart communication module
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1904004EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1904004EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
