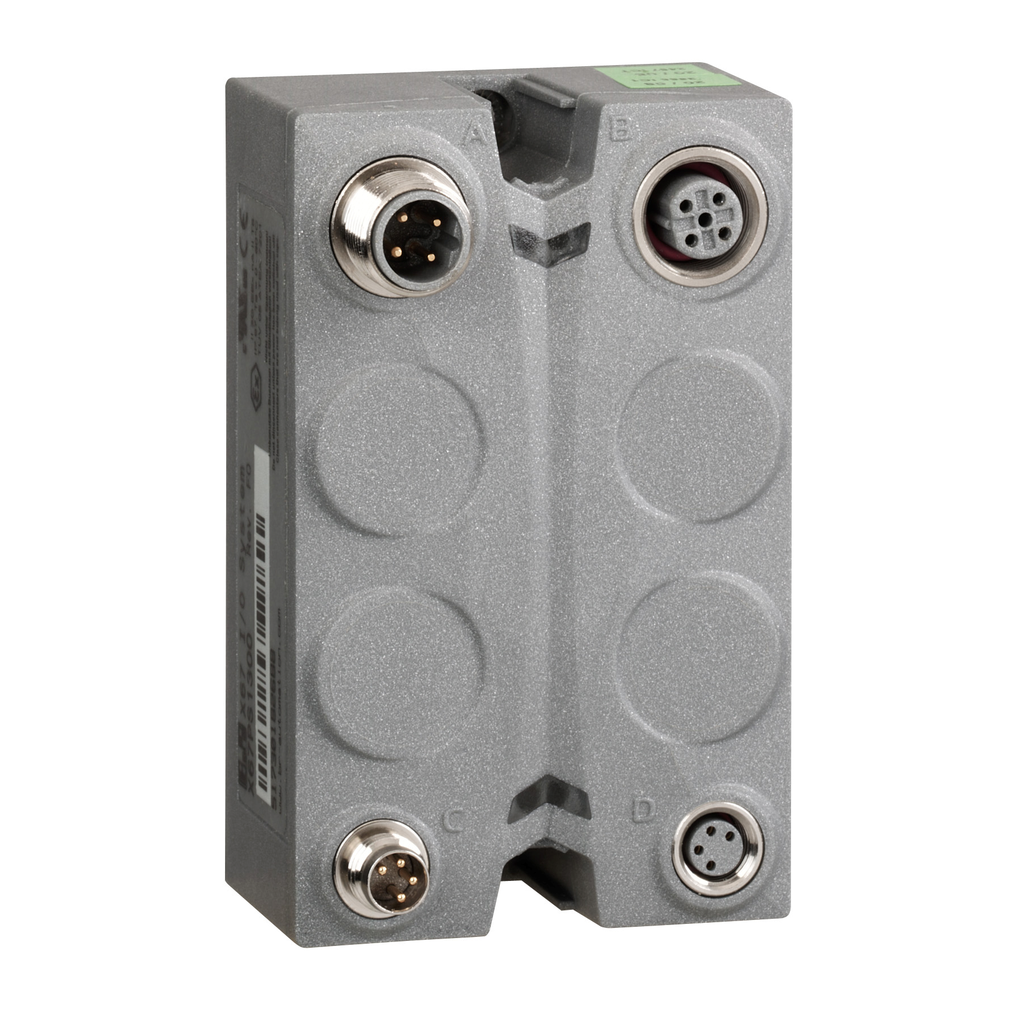

TM7SPS1A
Power distribution module, Modicon TM7, supply 24 V, 15 W
Specifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -10-60 °C |
| Resistance To Electromagnetic Fields |
|
| Standards | IEC 61131-2 |
| Storage Altitude | 0-3000 m |
| Shock Resistance | 30 gn 11 ms IEC 60721-3-5 Class 5M3 |
| Marking | CE |
| Vibration Resistance |
|
| Disturbance Radiated/Conducted | CISPR 11 |
| Electromagnetic Compatibility | EN/IEC 61000-4-6 |
| Surge Withstand |
|
| Ambient Air Temperature For Storage | -25-85 °C |
| Relative Humidity | 5-95 % without condensation |
| Resistance To Electrostatic Discharge |
|
| Resistance To Fast Transients |
|
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409005EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Nominal Power | 15 W |
| Fixing Mode | by 2 screws |
| Net Weight | 0.19 kg |
| Local Signalling | for sensor/actuator power supply status 2 LEDs |
| Operating Position | any position |
| Country of Origin | Austria |
| Weight | 0.19 kg |
| [Us] Rated Supply Voltage | 24 V |
| Range Of Product | Modicon TM7 |
| Electrical Connection |
|
| Product Or Component Type | power distribution module |
| Product Specific Application | supply 24 V DC I/O modules and bus TM7 |
| Supply Circuit Type | DC |
| Range Compatibility |
|
| Product Compatibility |
|
