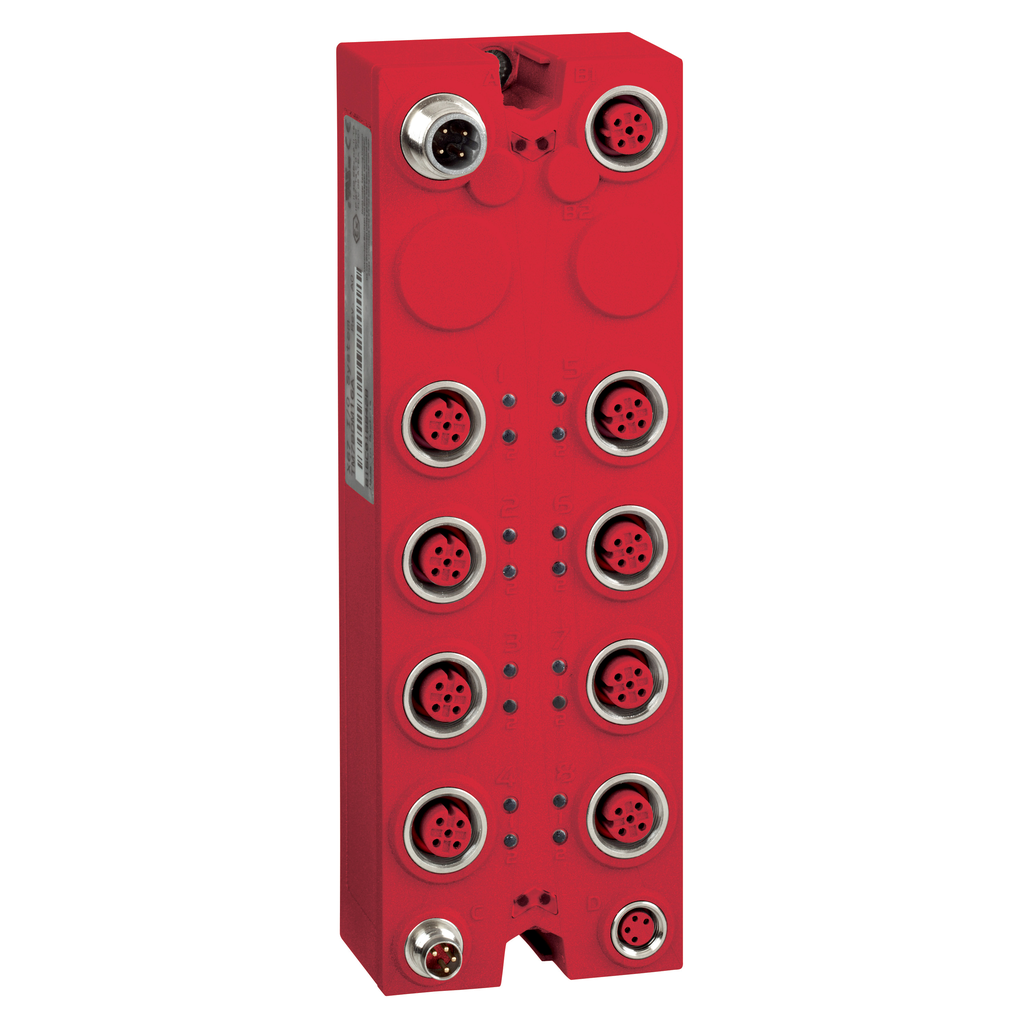

TM7SDM12DTFS – Safety discrete I/O expansion block, Modicon TM7, IP67, 8 DI/4 DO, 24 V DC, 2 A, M12 connector
TM7SDM12DTFS
Safety discrete I/O expansion block, Modicon TM7, IP67, 8 DI/4 DO, 24 V DC, 2 A, M12 connector

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications cULus
Ambient Air Temperature For Operation 0-60 °C
Electromagnetic Compatibility
  • electrostatic discharge immunity test, 4 kV on contact EN/IEC 61000-4-2
  • 1.2/50 µs shock waves immunity test, 1 kV unshielded links (differential mode) EN/IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test, 0.5 kV shielded links (common mode) EN/IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test, 1 kV shielded links (differential mode) EN/IEC 61000-4-5
  • conducted RF disturbances EN/IEC 61000-4-6
  • conducted and radiated emissions CISPR 11
  • electrostatic discharge immunity test, 8 kV in air EN/IEC 61000-4-2
  • susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz EN/IEC 61000-4-3
  • electrical fast transient/burst immunity test, 2 kV power supply EN/IEC 61000-4-4
  • electrical fast transient/burst immunity test, 1 kV input/output EN/IEC 61000-4-4
  • electrical fast transient/burst immunity test, 1 kV shielded cable EN/IEC 61000-4-4
  • 1.2/50 µs shock waves immunity test, 0.5 kV power supply (common mode) EN/IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test, 1 kV power supply (differential mode) EN/IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test, 0.5 kV unshielded links (common mode) EN/IEC 61000-4-5
Shock Resistance 30 gn 11 ms IEC 60721-3-5 Class 5M3
Marking CE
Vibration Resistance
  • 7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3
  • 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3
  • 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3
Ip Degree Of Protection IP67 conforming to IEC 61131-2
Pollution Degree 2 IEC 60664
Ambient Air Temperature For Storage -25-85 °C
Relative Humidity 5-95 % without condensation or dripping water
Operating Altitude 0...6561.68 ft (0...2000 m)
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1409005EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1409005EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Safety Reliability Data
  • PFD < 1E-5
  • MTTFd > 100 years
  • PFH < 1E-9
Discrete Input Voltage 24 V
Fixing Mode by 2 screws
Discrete Input Voltage Type DC
Discrete Output Voltage Type DC
Discrete Output Number
  • 0-4 <= 2 A configurable by software)
  • 8-8 clock push-pull <= 50 mA short-circuit and thermal limit
Discrete Input Number 0-8 configurable by software
Discrete Input Current 3.3 mA
Electrical Connection
  • 1 male connector M12 - B coding - 4 ways bus IN
  • 1 female connector M12 - B coding - 4 ways bus OUT
  • 8 female connectors M12 - A coding - 5 ways digital I/O
  • 1 male connector M8 - 4 ways power IN
  • 1 female connector M8 - 4 ways power OUT
Net Weight 0.35 kg
Discrete Output Voltage 24 V
Discrete Input Logic positive logic (sink)
Local Signalling
  • for power supply status 2 LEDs
  • for safety status 2 LEDs
  • for input/output status 12 LEDs
Operating Position vertical or horizontal position
Safety Level
  • SIL 3 IEC 61508
  • SIL 3 IEC 62061
  • PL = e EN 13849-1
Country of Origin Austria
Weight 0.35 kg
Range Of Product Modicon TM7
[Ue] Rated Operational Voltage 24 V DC
Product Or Component Type safety discrete I/O expansion block
Input/Output Number 8
Input/Output Number Of Splitter Box 8 I + 4 O
Bus Type TM7 bus
Enclosure Material Plastic
Range Compatibility
  • Modicon LMC058
  • Modicon M258
