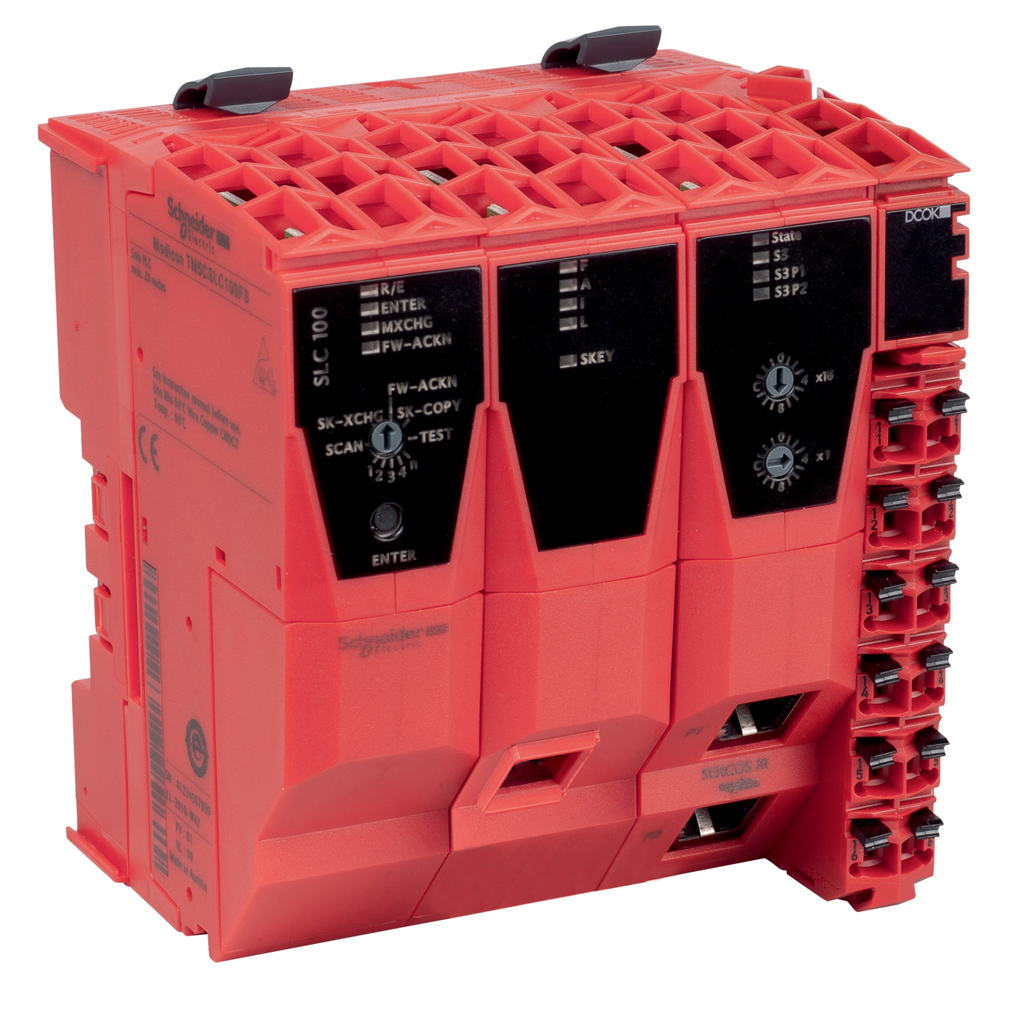

Controller system, Modicon TM5, Safe logic CPU standard, SERCOS 3 interface, 20 nodes
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This safe logic controller has Intel Xscale 266MHz processor with reverse polarity protection, and a 24 V DC power supply. The controller has integrated fuse (not interchangeable) input protection with fanless cooling. It offers SERCOS 3 (Ethernet) communication network with 100Mbps data transmission rate for the full duplex bus length, with 2 integrated shielded RJ45 ports. It supports maximum 20 safety nodes with 2 internal switches. It reaches Category 4 of safety level conforming to EN ISO 13849, and SIL 3 safety integrity level according to IEC 62061. It is an IP20 rated product. The housing colour is red. Its dimensions are 87.5mm (width) x 75mm (depth) x 99mm (height). It weighs 0.29kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with motion controller, communicating on Sercos 3 fieldbus. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Standards |
|
| Ambient Air Temperature For Operation |
|
| Ambient Air Temperature For Storage | -25-70 °C |
| Relative Humidity | 5-95 % without condensation |
| Ip Degree Of Protection | IP20 |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2203008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2203008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Maximum Cable Distance Between Devices | 100 m between station |
| Safety Reliability Data |
|
| Height | 99 mm |
| Cycle Time | 1 ms |
| Power Consumption In W | 5.1 W |
| Marking | CE |
| Net Weight | 0.29 kg |
| Communication Network Type | SERCOS III Ethernet) |
| Function Available |
|
| Transmission Rate | 100 Mbit/s for full duplex |
| Number Of Devices |
|
| Color | Red |
| Type Of Cooling | fanless |
| Local Signalling |
|
| Input Protection Type | integrated fuse (not interchangeable) |
| Width | 87.5 mm |
| Realtime Clock | with non-volatile memory |
| Depth | 75 mm |
| Rated Voltage | 24-24 V -15...20 % |
| Safety Level |
|
| Country of Origin | Austria |
| Width | 87.5 mm |
| Height | 99 mm |
| Weight | 0.29 kg |
| Range Of Product | Modicon TM5 |
| Product Or Component Type | controller system |
| Processor Name | Intel Xscale 266 MHz |
| Device Application | safety logic controller |
| Reverse Polarity Protection | yes |
