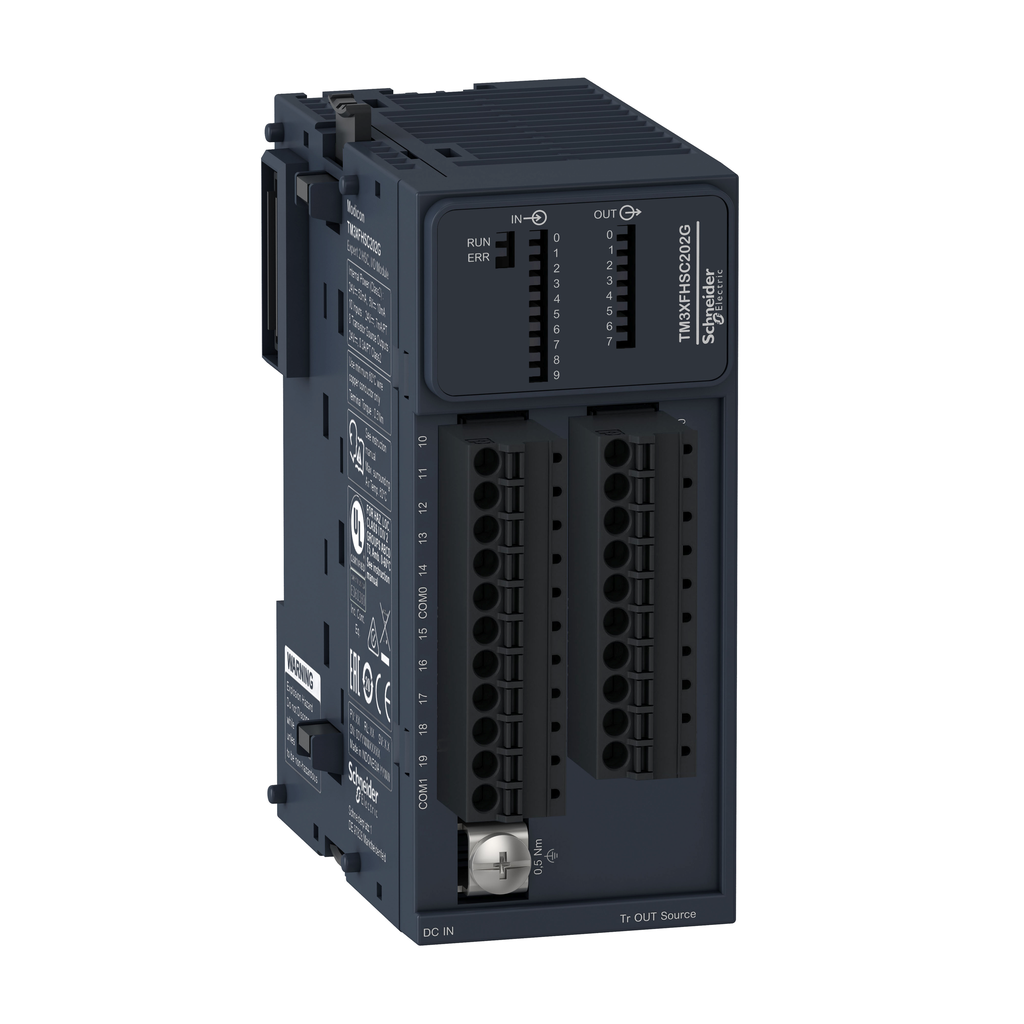

TM3XHSC202G – counter module, Modicon TM3, high speed, 2 channels HSC, 10 inputs, 8 outputs, spring
TM3XHSC202G
counter module, Modicon TM3, high speed, 2 channels HSC, 10 inputs, 8 outputs, spring

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Reset automatic reset
Height 90 mm
Discrete Output Logic source
Discrete Input Voltage 24 V DC
Output Voltage 24 V DC transistor output
Counting Frequency 200 kHz
Services
  • HSC simple One shot/Modulo
  • HSC main single phase One shot/Modulo/Event counting
  • HSC main dual phase Modulo/Free-large
  • period meter Edge to Edge, Edge to Opposite
Net Weight 150 g
Discrete Output Current 300 mA fast output Q0...Q7)
Event Management
  • No event
  • Thresholds < 10 µs
Output Voltage Limits 30 V DC
Current Consumption
  • 100 mA 5 V DC
  • 50 mA 24 V DC
Output Protection Type against overload and short-circuits
Local Signalling
  • 1 LED I/O
  • 1 LED RUN
  • 1 LED ERR
Discrete Input Logic sink or source
Counting Mode
  • 2 main expert function (main counting function, frequency meter, period meter)
  • Max 8 simple counting function
Mounting Support
  • top hat type TH35-15 rail IEC 60715
  • top hat type TH35-7.5 rail IEC 60715
  • plate or panel with fixing kit
Electrical Circuit Type
  • standard input
  • latch input
Width 39 mm
Depth 85 mm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1904007EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1904007EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin United States
Width 39 mm
Height 90 mm
Weight 150 g
[Us] Rated Supply Voltage 24 V DC external supply - 15...20 %)
Range Of Product Modicon TM3
Number Of Input Channels 10
Product Or Component Type module hight speed counting
Discrete I/O Number 18
Range Compatibility Modicon M262
Number Of Output Channels 8
Product Certifications
  • CE
  • cULus
  • IACS E10
  • RCM
  • UKCA
  • EAC
Resistance To Conducted Disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-4
Resistance To Electromagnetic Fields
  • 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3
  • 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3
  • 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
Ambient Air Temperature For Operation
  • -20-60 °C horizontal installation
  • -20-50 °C vertical installation
Storage Altitude 0-3000 m
Standards
  • CSA C22.2 No 142
  • ANSI/ISA 12-12-01
  • UL 1604
  • CSA C22.2 No 213
  • EN/IEC 61131-2:2007
  • UL 508
  • EN/IEC 61010-2-201
Pollution Degree 2
Shock Resistance 15 gn 11 ms
Vibration Resistance
  • 3.5 mm 2-8.4 Hz DIN rail
  • 1 gn 8.4-200 Hz DIN rail
  • 3.5 mm 2-8.4 Hz panel
  • 1 gn 8.4-200 Hz panel
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity
  • 10-95 %, without condensation in operation)
  • 10-95 %, without condensation in storage)
Ip Degree Of Protection IP20 with protective cover in place
Resistance To Electrostatic Discharge
  • 8 kV in air EN/IEC 61000-4-2
  • 4 kV on contact EN/IEC 61000-4-2
Operating Altitude 0...6561.68 ft (0...2000 m)
Resistance To Fast Transients
  • 2 kV alimentation cableEN/IEC 61000-4-4
  • 1 kV Ethernet lineEN/IEC 61000-4-4
  • 1 kV serial linkEN/IEC 61000-4-4
  • 1 kV inputEN/IEC 61000-4-4
  • 1 kV transistor outputEN/IEC 61000-4-4
Electromagnetic Emission
  • conducted emissions 120...69 dBµV/m QP10-150 kHz EN/IEC 55011
  • conducted emissions 63 dBμV/m QP1.5-30 MHz EN/IEC 55011
  • radiated emissions 40 dBµV/m class A30-230 MHz EN/IEC 55011
  • conducted emissions 79...63 dBμV/m QP150-1500 kHz EN/IEC 55011
  • radiated emissions 47 dBµV/m class A230-1000 MHz EN/IEC 55011
