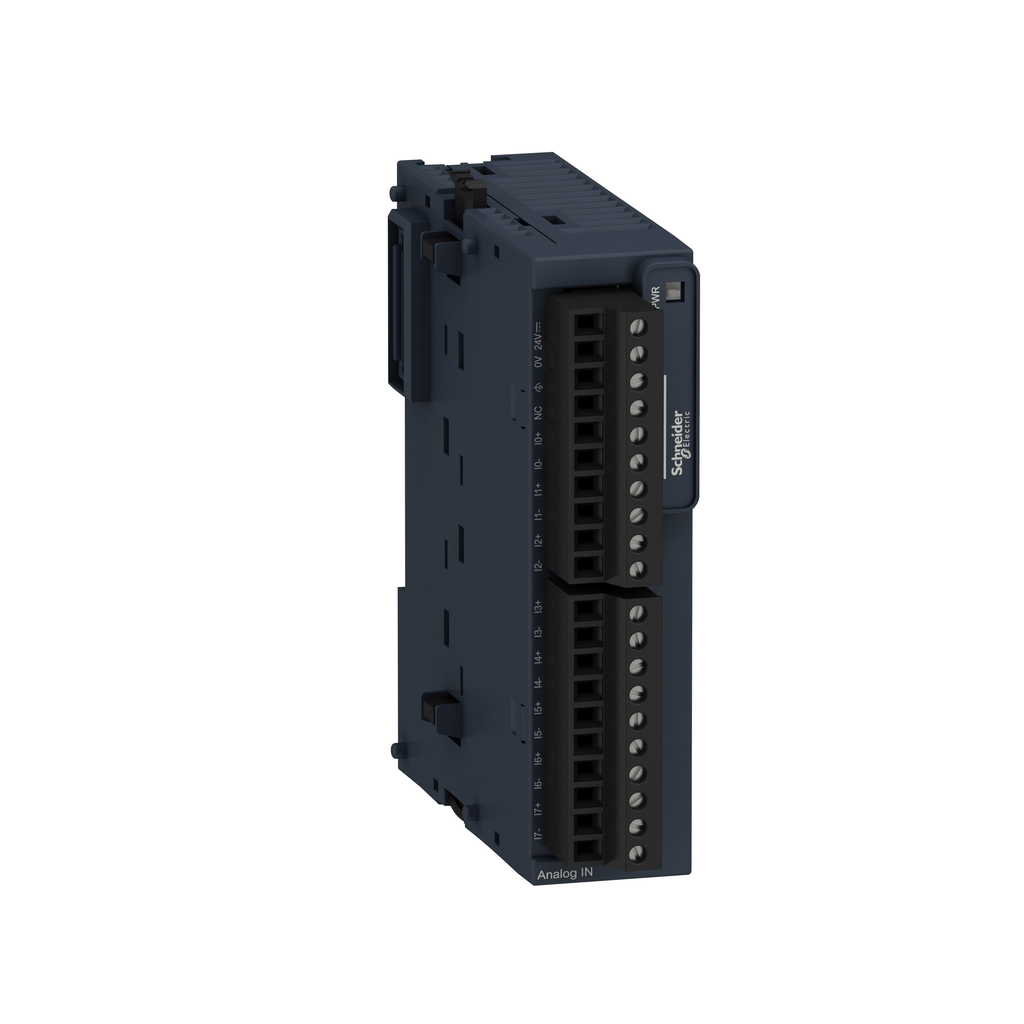

TM3TI8T - analog input module, Modicon TM3, 8 temperature inputs, screw, 24V DC

TM3TI8T

analog input module, Modicon TM3, 8 temperature inputs, screw, 24V DC

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 16bit and 15bit + sign resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 30mA at 24V DC via external supply, 45mA/40mA at 5V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1402009EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1402009EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Connection	10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs and supply 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs
Height	90 mm
Input Impedance	>= 1 MOhm thermocouple >= 1 MOhm temperature probe >= 1 MOhm thermistor
Type Of Cable	twisted shielded pairs cable <30 m input
Non-Linearity	+/- 0.2 %FS
Lsb Value	0.1 °C thermocouple 0.1 °C NTC 1 Ohm PTC/NTC
Marking	CE
Analogue Input Resolution	16 bits 15 bits + sign
Net Weight	0.11 kg
Absolute Accuracy Error	+/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C
Current Consumption	30 mA 24 V DC via external supply 45 mA 5 V DC via bus connector 40 mA 5 V DC via bus connector
Conversion Time	100 ms + 100 ms per channel + 1 controller cycle time
Temperature Drift	+/- 0.01 %FS/°C
Supply Voltage Limits	20.4-28.8 V
Mounting Support	top hat type TH35-15 rail IEC 60715 top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Local Signalling	for PWR 1 LED (green)
Surge Withstand	1 kV power supply common mode IEC 61000-4-5 0.5 kV power supply differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5
Cross Talk	<= 1 LSB
Width	23.6 mm
Depth	70 mm
[Us] Rated Supply Voltage	24 V DC
Insulation	between input and supply 1500 V AC between input and internal logic 500 V AC
Sampling Duration	100 ms
Repeat Accuracy	+/-0.5 %FS
Country of Origin	Japan
Width	23.6 mm
Height	90 mm
Weight	0.11 kg
Range Of Product	Modicon TM3
Product Or Component Type	analog input module
Analogue Input Number	8
Range Compatibility	Modicon M221 Modicon M241 Modicon M251 Modicon M262
Analogue Input Type	thermocouple - 200...1000 °C thermocouple J thermocouple - 200...1300 °C thermocouple K thermocouple 0...1760 °C thermocouple R thermocouple 0...1760 °C thermocouple S thermocouple 0...1820 °C thermocouple B thermocouple - 200...400 °C thermocouple T thermocouple - 200...1300 °C thermocouple N thermocouple - 200...800 °C thermocouple E thermocouple 0...2315 °C thermocouple C NTC 10k thermistor -90...150 °C PTC thermistor 100...10000 Ohm thermocouple - 200...1000 °C
Product Certifications	CE UKCA RCM EAC cULus cULus HazLoc
Resistance To Conducted Disturbances	10 V 0.15...80 MHz IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Standards	IEC 61131-2
Immunity To Microbreaks	10 ms
Ambient Air Temperature For Operation	-10-55 °C horizontal installation -10-35 °C vertical installation
Storage Altitude	0-3000 m
Pollution Degree	2
Shock Resistance	15 gn 11 ms
Resistance To Magnetic Fields	30 A/m IEC 61000-4-8
Vibration Resistance	3.5 mm 5-8.4 Hz DIN rail 3 gn 8.4-150 Hz DIN rail
Ambient Air Temperature For Storage	-25-70 °C
Relative Humidity	10-95 %, without condensation in operation) 10-95 %, without condensation in storage)
Resistance To Electrostatic Discharge	8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2
Ip Degree Of Protection	IP20
Resistance To Fast Transients	1 kV IEC 61000-4-4 I/O)
Operating Altitude	0...6561.68 ft (0...2000 m)
Electromagnetic Emission	radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
