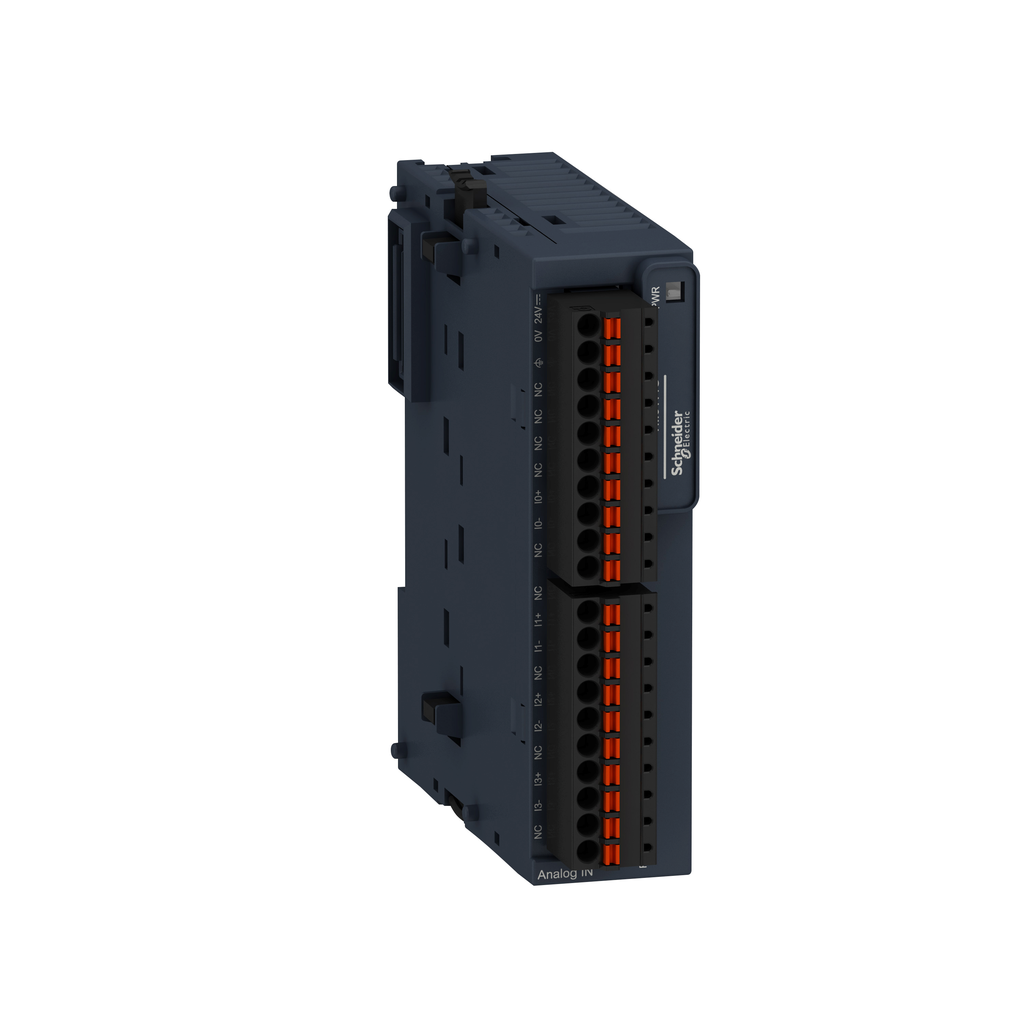

TM3TI4DG - analog input module, Modicon TM3, 4 temperature differential inputs, spring, 24V DC

TM3TI4DG

analog input module, Modicon TM3, 4 temperature differential inputs, spring, 24V DC

Add to Quote Catalogue

Specifications

Country of Origin	Japan
Width	23.6 mm
Height	90 mm
Weight	0.11 kg
Range Of Product	Modicon TM3
Product Or Component Type	analog input module
Analogue Input Number	4
Range Compatibility	Modicon M221 Modicon M241 Modicon M251 Modicon M262
Analogue Input Type	thermocouple - 200...1000 °C thermocouple J thermocouple - 200...1300 °C thermocouple K thermocouple 0...1760 °C thermocouple R thermocouple 0...1760 °C thermocouple S thermocouple 0...1820 °C thermocouple B thermocouple - 200...400 °C thermocouple T thermocouple - 200...1300 °C thermocouple N thermocouple - 200...800 °C thermocouple E thermocouple 0...2315 °C thermocouple C
Electrical Connection	10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs and supply 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs
Height	90 mm
Input Impedance	>= 1 MOhm thermocouple
Type Of Cable	twisted shielded pairs cable <30 m input
Non-Linearity	+/- 0.2 %FS
Lsb Value	0.1 °C thermocouple
Permissible Continuous Overload	13 V voltage 40 mA current
Marking	CE
Analogue Input Resolution	16 bits 15 bits + sign
Net Weight	0.11 kg
Absolute Accuracy Error	+/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C
Current Consumption	45 mA 5 V DC via bus connector 50 mA 5 V DC via bus connector 35 mA 24 V DC via external supply 40 mA 24 V DC via external supply
Conversion Time	100 ms + 100 ms per channel + 1 controller cycle time thermocouple
Temperature Drift	+/- 0.01 %FS/°C
Supply Voltage Limits	20.4-28.8 V
Mounting Support	top hat type TH35-15 rail IEC 60715 top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Local Signalling	for PWR 1 LED (green)
Surge Withstand	1 kV power supply common mode IEC 61000-4-5 0.5 kV power supply differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5
Cross Talk	<= 1 LSB
Width	23.6 mm
Depth	70 mm
[Us] Rated Supply Voltage	24 V DC
Insulation	between input and supply 1500 V AC between input and internal logic 500 V AC
Sampling Duration	100 ms thermocouple
Repeat Accuracy	+/-0.5 %FS
Product Certifications	CE UKCA RCM EAC cULus cULus HazLoc
Resistance To Conducted Disturbances	10 V 0.15...80 MHz IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Standards	IEC 61131-2
Immunity To Microbreaks	10 ms
Ambient Air Temperature For Operation	-10-55 °C horizontal installation -10-35 °C vertical installation
Storage Altitude	0-3000 m
Pollution Degree	2
Shock Resistance	15 gn 11 ms
Vibration Resistance	3.5 mm 5-8.4 Hz DIN rail 3 gn 8.4-150 Hz DIN rail
Ambient Air Temperature For Storage	-25-70 °C
Relative Humidity	10-95 %, without condensation in operation) 10-95 %, without condensation in storage)
Resistance To Electrostatic Discharge	8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2
Ip Degree Of Protection	IP20
Resistance To Fast Transients	1 kV IEC 61000-4-4 I/O)
Operating Altitude	0...6561.68 ft (0...2000 m)
Electromagnetic Emission	radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Eu Rohs Directive	Under investigation
