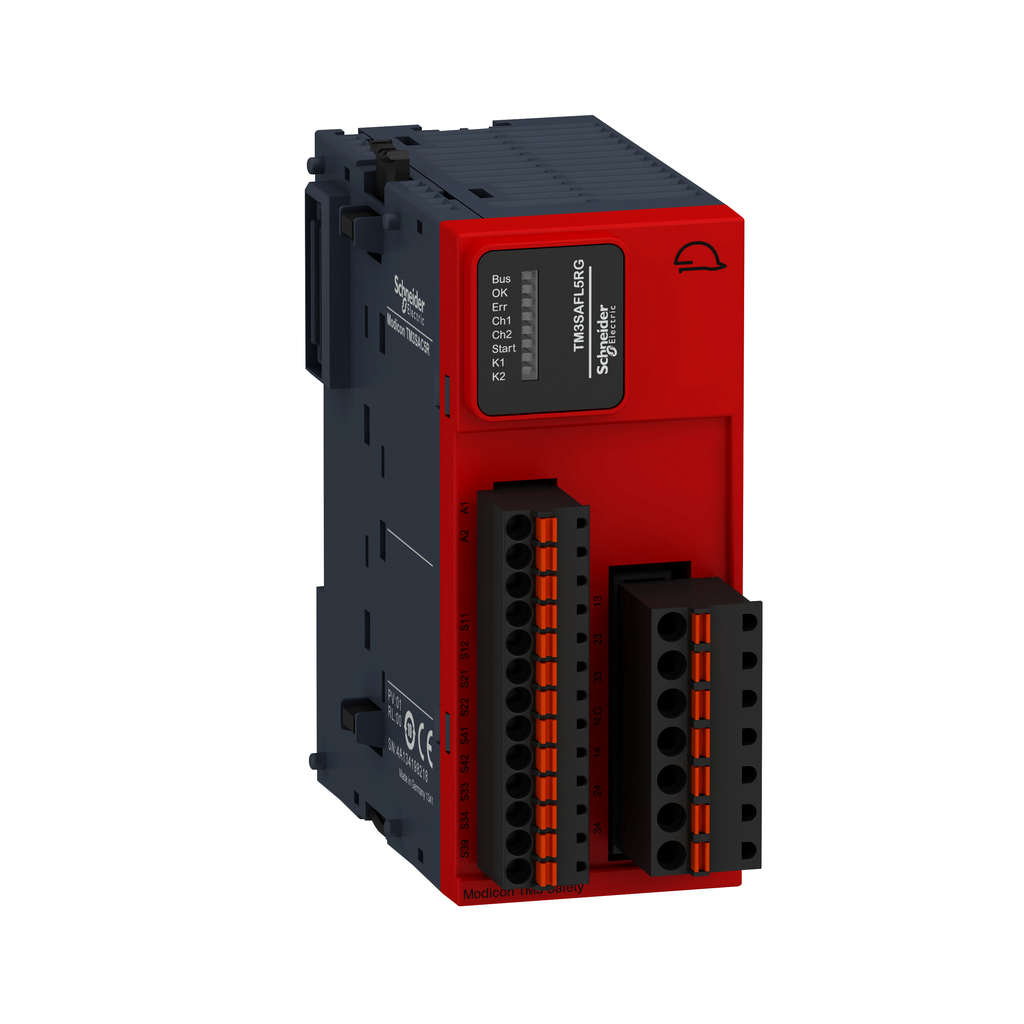

TM3SAFL5RG - Safety module, Modicon TM3 Safety, 2 Function, Cat 3 PL d/SIL CL2 (spring) 24 VDC

TM3SAFL5RG

Safety module, Modicon TM3 Safety, 2 Function, Cat 3 PL d/SIL CL2 (spring) 24 VDC

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The safety module provides 3 normally opened contacts and unlimited synchronisation time between inputs. It is a safety module with a rated supply voltage of 24V DC, an external supply current consumption of 100mA at 24V DC on power supply and a power consumption 0.2W at 5V DC, 3.6W at 24V DC. The main functions of this module are emergency stop, movable guard, multiple emergency stop, proximity sensor and electro-sensitive protection equipment (ESPE) monitoring. It is furnished with spring terminal for electrical connection. It is an IP20 rated product. Its dimensions are 43.7mm (Width) x 73mm (Depth) x 94mm (Height). It weighs 0.19kg. It is suitable for emergency stop, switch and safety light curtain monitoring applications. This product is certified by RCM, CSA, UL, TÜV, ANSI Haz Loc Class 1 Division 2, EAC. It supports wall mount using attached fasteners. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1403010EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1403010EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CSA 61010-2-201 (pending) RCM UL 61010-2-201 EAC ANSI Haz Loc Class 1 Division 2 (pending) CSA Haz Loc Class 1 Division 2 (pending) TÜV
Output Voltage	10 V relay output
Power Consumption In W	0.2 W 5 V DC 3.6 W 24 V DC
[Uc] Control Circuit Voltage	24 V DC
Height	94 mm
Standards	ISO 13849-1:2008 ISO 13849-2:2012 IEC 62061:2005 IEC 61508:2010 IEC 60947-5-1:2010 IEC 61131-2:2007 IEC 60204-1:2005 IEC 60204-1:2009/A1 IEC 61010-1:2010 EN 50581:2012
Output Thermal Current	6 A per relay relay output
Connections - Terminals	captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34 captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34 captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34 captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34 captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34 captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals
Product Compatibility	safety light curtains EN/IEC 61496-1 (type 4)
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3 susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3 magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8 electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4 electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5 conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011 radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011
Minimum Output Current	10 mA relay output
Marking	RCM UL CSA EAC CE TÜV EFUP 10
[Ith] Conventional Free Air Thermal Current	18 A
Associated Fuse Rating	4 A gG or gL relay output IEC 60947-5-1 6 A fast blow relay output IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	4 kV III IEC 60647-5-1
Net Weight	0.19 kg
Current Consumption	100 mA 24 V DC external supply
Output Type	relay instantaneous opening, 3 NO, potential free
[Us] Rated Supply Voltage	24 V - 15...20 % DC
[Ui] Rated Insulation Voltage	300 V 2)IEC 60647-5-1
Mounting Support	top hat type TH35-7.5 rail IEC 60715 top hat type TH35-15 rail IEC 60715 wall mount using attached fasteners
Local Signalling	for user 8 LEDs (green/red)
Maximum Switching Voltage	230 V AC-15 50 Hz relay instantaneous opening) 24 V DC-13 relay instantaneous opening)
Electrical Connection	spring terminal
Safety Reliability Data	DC = 95 % ISO 13849-1 PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A MTTFd = 85 years ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A SFF = 95 % IEC 61508-1 HFT = 1 IEC 61508-1 type = A IEC 61508-1
Input Protection Type	internal, electronic
Width	43.7 mm
Number Of Safety Circuits	3 NO relay instantaneous opening
Depth	73 mm
Synchronisation Time Between Inputs	unlimited
Maximum Cable Distance Between Devices	30 m
Maximum Response Time On Input Open	40 ms
Breaking Capacity	360 VA holding AC-15 B300 relay output 3600 VA inrush AC-15 B300 relay output
Country of Origin	France
Width	43.7 mm
Height	94 mm
Weight	0.19 kg
Range Of Product	Modicon TM3 Safety
Product Or Component Type	safety module
Safety Module Application	for emergency stop, switch and safety light curtain monitoring
Function Of Module	emergency stop monitoring 2-channel wiring monitoring of a movable guard with 2 switches and automatic start monitoring of a movable guard multiple emergency stop monitoring 2-channel wiring proximity sensor monitoring PNP/PNP monitoring of electro-sensitive protection equipment (ESPE) PNP/PNP
Device Short Name	TM3SAFL
Safety Level	can reach PL d/category 3 ISO 13849-1 2008 can reach PL d/category 3 ISO 13849-2 2012 can reach SILCL 2 IEC 62061 2005 can reach SIL 2 IEC 61508 2010
Resistance To Conducted Disturbances	10 V 0.15...80 MHz IEC 61000-4-6
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Standards	IEC 60204-1 EN 1088/ISO 14119 ISO 13850 IEC 60947-1 IEC 60947-5-1
Ambient Air Temperature For Operation	-10-55 °C horizontal installation
Storage Altitude	0-3000 m
Pollution Degree	2
Ip Degree Of Protection	IP20 terminals)IEC 60529
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Resistance To Magnetic Fields	30 A/m 50/60 Hz IEC 61000-4-8
Vibration Resistance	+/- 3.5 mm 5-150 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-25-70 °C
Relative Humidity	10-95 %, without condensation in operation) 10-95 %, without condensation in storage)
Surge Withstand	1 kV power lines (DC) differential mode IEC 61000-4-5 DC 1 kV power lines (DC) common mode IEC 61000-4-5 DC
Resistance To Electrostatic Discharge	8 kV in air IEC 61000-4-2 6 kV on contact IEC 61000-4-2
Mechanical Robustness	bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27
Operating Altitude	0...6561.68 ft (0...2000 m)
Resistance To Fast Transients	3 kV power lines (DC) DC)IEC 61000-4-4 2 kV I/O linesIEC 61000-4-4
Electromagnetic Emission	radiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3 radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3
