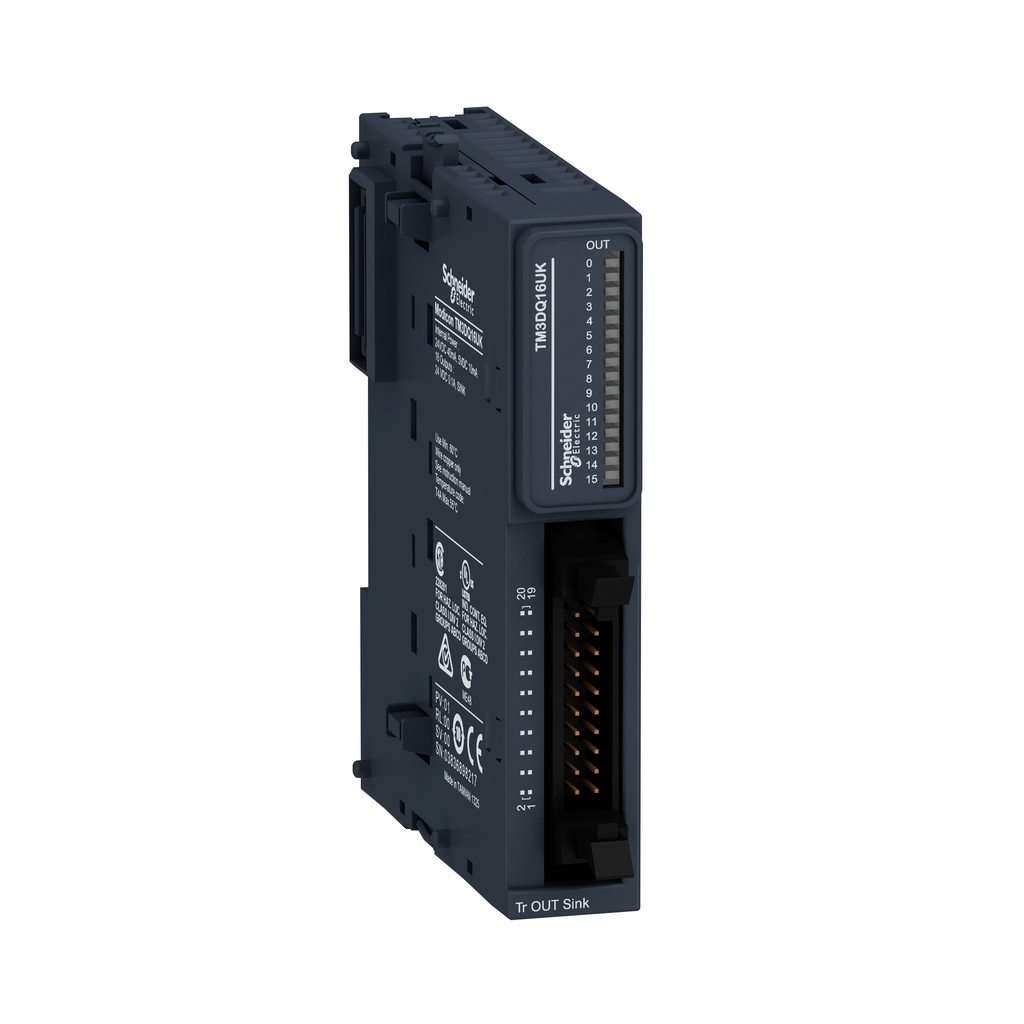

TM3DQ16UK - Discrete output module, Modicon TM3, 16 outputs transistor NPN (HE10)

TM3DQ16UK

Discrete output module, Modicon TM3, 16 outputs transistor NPN (HE10)

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1402009EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1402009EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	United States
Width	21.4 mm
Height	90 mm
Weight	0.111 kg
Discrete Output Type	transistor
Range Of Product	Modicon TM3
Discrete Output Logic	negative logic (sink)
Discrete Output Number	16
Product Or Component Type	discrete output module
Discrete Output Current	100 mA transistor output
Discrete Output Voltage	24 V DC transistor output
Range Compatibility	Modicon M241 Modicon M251 Modicon M221 Modicon M262
Product Certifications	cULus CE UKCA RCM EAC cULus HazLoc
Resistance To Conducted Disturbances	10 V 0.15...80 MHz IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Standards	IEC 61131-2
Ambient Air Temperature For Operation	-10-35 °C vertical installation -10-55 °C horizontal installation
Storage Altitude	0-3000 m
Pollution Degree	2
Shock Resistance	15 gn 11 ms
Resistance To Magnetic Fields	30 A/m 50/60 Hz IEC 61000-4-8
Vibration Resistance	3.5 mm 5-8.4 Hz DIN rail 3 gn 8.4-150 Hz DIN rail 3.5 mm 5-8.4 Hz panel 3 gn 8.4-150 Hz panel
Ambient Air Temperature For Storage	-25-70 °C
Relative Humidity	10-95 %, without condensation in operation) 10-95 %, without condensation in storage)
Surge Withstand	1 kV I/O common mode IEC 61000-4-5 DC
Ip Degree Of Protection	IP20 with protective cover in place
Resistance To Electrostatic Discharge	8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2
Operating Altitude	0...6561.68 ft (0...2000 m)
Resistance To Fast Transients	1 kV I/OIEC 61000-4-4
Electromagnetic Emission	radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Maximum Cable Distance Between Devices	unshielded cable <5 m transistor output
Electrical Connection	HE-10 connector for outputs
Height	90 mm
Marking	CE
Response Time	450 µs (turn-on) 450 µs (turn-off)
Discrete I/O Number	16
Net Weight	0.111 kg
Maximum Voltage Drop	<0.4 V
Current Consumption	5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state off) 15 mA 5 V DC via bus connector at state on) 20 mA 24 V DC via bus connector at state on)
Mounting Support	top hat type TH35-15 rail IEC 60715 top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Local Signalling	for output status 1 LED per channel (green)
Width	21.4 mm
Depth	81.3 mm
Maximum Leakage Current	0.1 mA transistor output
Insulation	between output and internal logic 500 V AC non-insulated between outputs

Documents

TM3 Digital I/O Modules, Instruction sheet (EN) - HRB59605_09 (pdf)
Spec Sheet
Catalog Modicon TM3 Expansion IO modules for Modicon M221, M241, M251 and M262 plc_February 2023 - Catalog+Modicon+TM3+Expansion+IO+modules+for+Modicon+M221+M241+M251+and+M262+plc_February+2023 (pdf)
