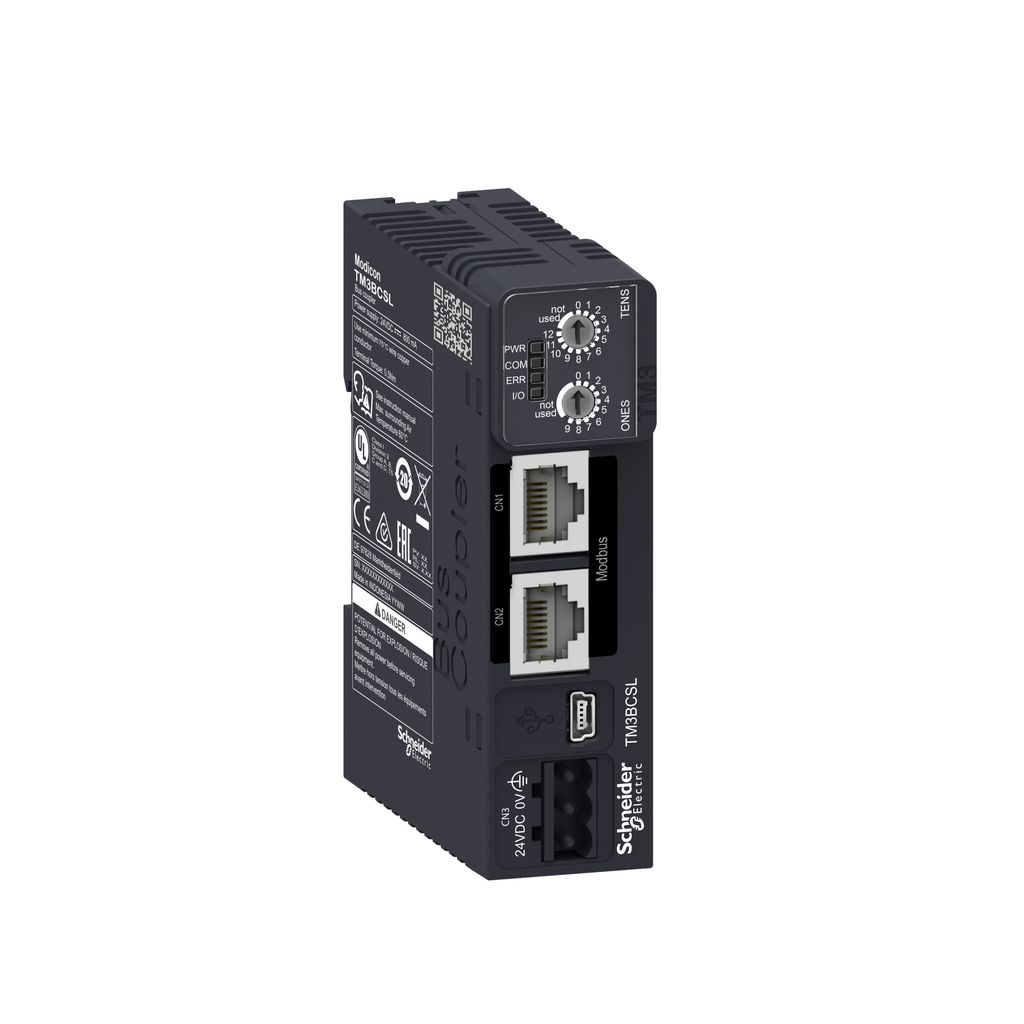

TM3BCSL
bus coupler module, Modicon TM3, distributed IO, optimized, Serial Line interface, IP20
Specifications
| Ambient Air Temperature For Operation | -10-60 °C |
|---|---|
| Storage Altitude | 0-3000 m |
| Pollution Degree | 2 |
| Vibration Resistance | 3M4 35 x 15 mm symmetrical DIN rail |
| Ip Degree Of Protection | IP20 conforming to IEC/EN 61010-2-201 |
| Ambient Air Temperature For Storage | -25-70 °C |
| Relative Humidity | 10-95 % non-condensing |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Product Certifications |
|
| Communication Network Type | Modbus |
| Height | 96.5 mm |
| Standards |
|
| Connector Type |
|
| Web Services | web server, USB |
| Communication Service | Modbus slave device profile |
| Exchange Mode | half duplex |
| Net Weight | 0.10 kg |
| Fixing Mode |
|
| Current Consumption | 0.8 A 24 V DC internal supply maximum 7 expansion modules |
| Topology | daisy chain |
| Communication Port Protocol | Modbus serial |
| Local Signalling |
|
| Width | 27 mm |
| Transmission Rate | 1.2...115.2 kbit/s |
| Depth | 70 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1712005EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1712005EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Indonesia |
| Width | 27 mm |
| Height | 96.5 mm |
| Weight | 0.10 kg |
| Range Of Product | Modicon TM3 |
| Product Or Component Type | I/O distributed module |
| Product Specific Application | bus coupler module |
| Product Compatibility |
|
