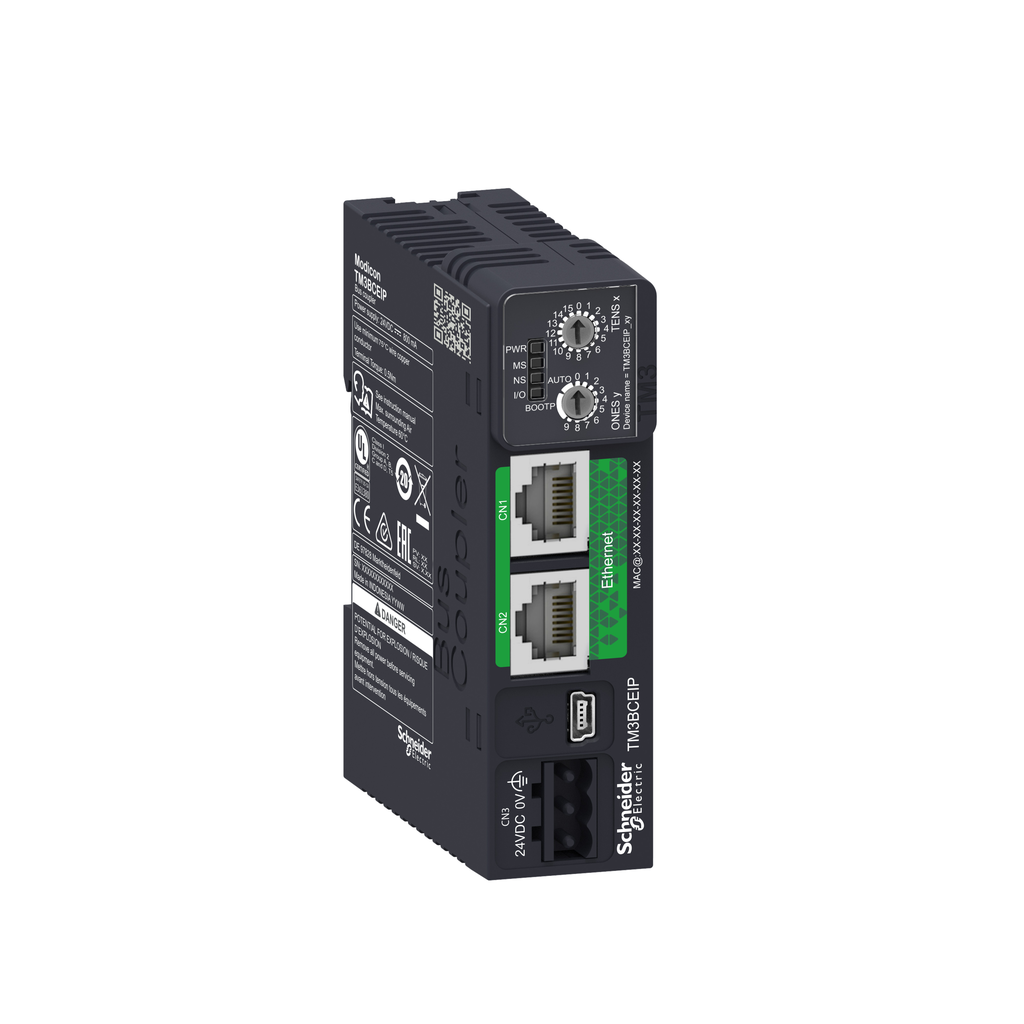

distributed IO module, Modicon TM3, IP20 optimized bus coupler, Ethernet interface
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The I/O distributed module supports daisy chain topology. It offers half duplex, full duplex and auto negotiation exchange mode with 10/100Mbps data transmission rate. This processor provides web services like web server, ethernet and web server, USB. It features 1 LED for PWR (system status), 1 LED for MS (module status), 1 LED for NS (network status) and 1 LED for I/O status signaling. It is an IP20 rated product. Its dimensions are 27mm (width) x 70mm (depth) x 96.5mm (height). It weighs 0.10kg. It is suitable for bus coupler module. It is compatible with logic controller and motion controller. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. Boost the performance of controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241, M251 and M262 logic controllers.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1712005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1712005EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -10-60 °C |
| Storage Altitude | 0-3000 m |
| Pollution Degree | 2 |
| Vibration Resistance | 3M4 35 x 15 mm symmetrical DIN rail |
| Ip Degree Of Protection | IP20 conforming to IEC/EN 61010-2-201 |
| Ambient Air Temperature For Storage | -25-70 °C |
| Relative Humidity | 10-95 % non-condensing |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Country of Origin | United States |
| Width | 27 mm |
| Height | 96.5 mm |
| Weight | 0.10 kg |
| Range Of Product | Modicon TM3 |
| Product Or Component Type | I/O distributed module |
| Product Specific Application | bus coupler module |
| Product Compatibility |
|
| Product Certifications |
|
| Communication Network Type |
|
| Height | 96.5 mm |
| Standards |
|
| Connector Type |
|
| Web Services |
|
| Communication Service |
|
| Exchange Mode | half duplex, full duplex, autonegotiation |
| Net Weight | 0.10 kg |
| Fixing Mode |
|
| Current Consumption | 0.8 A 24 V DC internal supply maximum 7 expansion modules |
| Topology | daisy chain |
| Communication Port Protocol | Ethernet IP/Modbus TCP |
| Local Signalling |
|
| Port Ethernet | 10/100BASE-T |
| Width | 27 mm |
| Transmission Rate | 10/100 Mbit/s |
| Depth | 70 mm |
