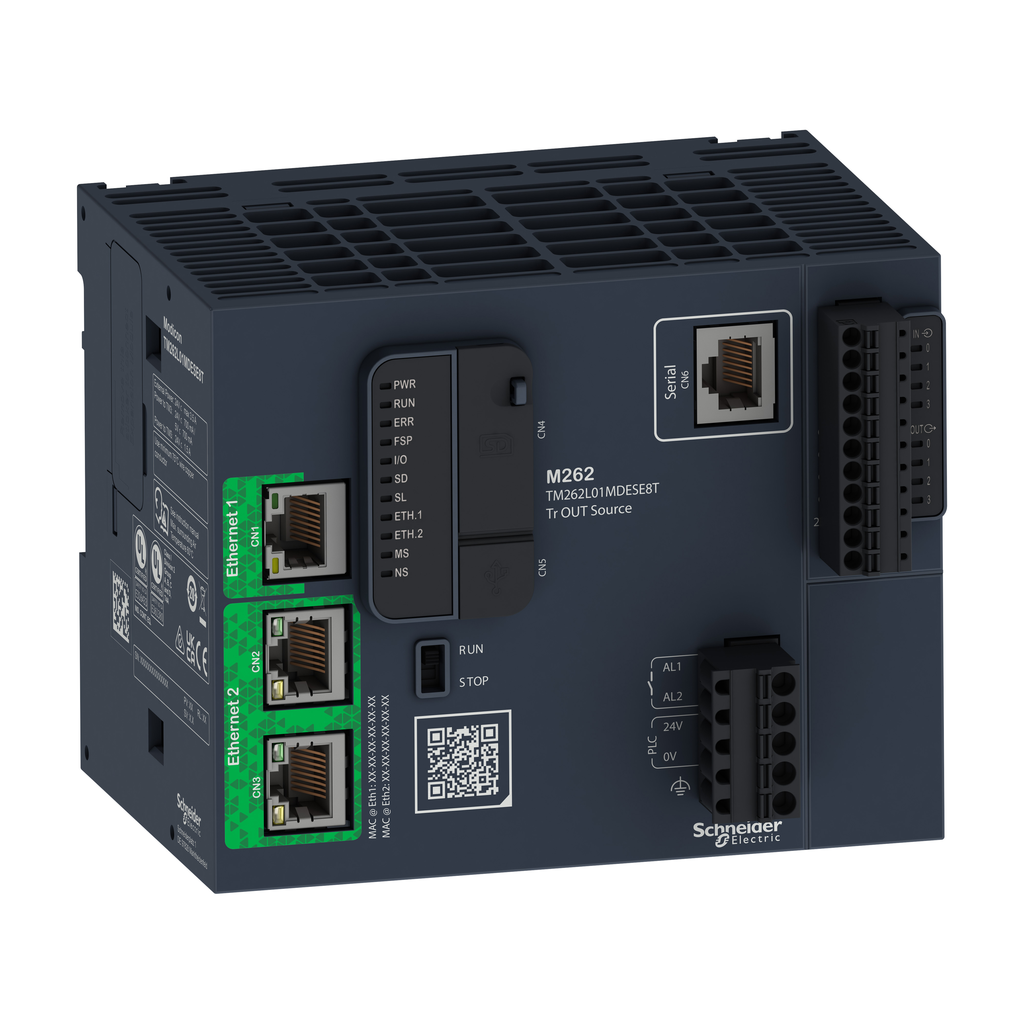

TM262L01MDESE8T - distributed PAC controller, Modicon M262

TM262L01MDESE8T

distributed PAC controller, Modicon M262

Add to Quote Catalogue

Specifications

Country of Origin	Indonesia
Width	125 mm
Height	100 mm
Weight	0.655 kg
[Us] Rated Supply Voltage	24 V DC - 15...20 %
Range Of Product	EcoStruxure Automation Expert
Product Or Component Type	dPAC module
Power Consumption In W	82 W
Data Backed Up	1 GB built-in flash memory backup of user programs
Electrical Connection	removable spring terminal block for inputs and outputs removable spring terminal block for connecting the 24 V DC power supply
Maximum Cable Distance Between Devices	shielded cable <30 m RS485 link shielded cable <15 m RS232
Height	100 mm
Inrush Current	40 A
Communication Service	OPC UA server (Encrypt) HTTPs Methods (API) NTP client
Transmission Rate	57.6 kbit/s 15-15 m RS485 57.6 kbit/s 3-3 m RS232 10/100 Mbit/s Ethernet1 10/100/1000 Mbit/s Ethernet2
Clock Drift	<= 10 s/month 25-25 °C
Communication Port Protocol	EtherNet/IP scanner Modbus TCP client/server Modbus TCP IO scanner Modbus SL client/server
Backup Time	1000 h 25 °C
Maximum Number Of I/O Expansion Module	7 TM3 IO module (local I/O-Architecture) 7 TM3 IO module (remote I/O-Architecture)
Net Weight	0.655 kg
Integrated Connection Type	Ethernet 1 RJ45 10/100BASE-T Ethernet 2 2 RJ45 100/1000BASE-T serial link RJ45 RS232/RS485 TM3 IO bus
Supply Voltage Limits	20.4-28.8 V DC
Mounting Support	top hat type TH35-15 rail IEC 60715 top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Local Signalling	for PWR 1 LED (green/red) for RUN 1 LED (green/red) for ERROR (fault) 1 LED (green/red) for stop forced 1 LED (green/red) for I/O error (I/O) 1 LED (green/red) for SD card activity 1 LED (green/orange) for SL activity 1 LED (green/orange) for ETH1 state 1 LED (green/red) for ETH2 state 1 LED (green/red) for EIP MS 1 LED (green/red) for EIP NS 1 LED (green/red)
Surge Withstand	1 kV power lines (DC) common mode EN/IEC 61000-4-5 1 kV shielded cable common mode EN/IEC 61000-4-5 0.5 kV relay output differential mode EN/IEC 61000-4-5 1 kV input common mode EN/IEC 61000-4-5 1 kV transistor output common mode EN/IEC 61000-4-5
Execution Time For 1 Kinstruction	0.005 ms
Overvoltage Protection	with
Realtime Clock	with
Width	125 mm
Depth	90 mm
Insulation	between supply and internal logic 500 V AC non-insulated between supply and ground
Maximum Number Of Connected Devices	EtherNet/IP <64 Modbus TCP <64 Modbus TCP/EtherNet/IP <96
Product Certifications	CE cULus cULus HazLoc Class I Division 2 CSA 22-2 No 213 RCM
Resistance To Conducted Disturbances	10 V 0.15...80 MHz EN/IEC 61000-4-4 3 V 0.1...80 MHz 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
Immunity To Microbreaks	0.01 ms
Storage Altitude	0-3000 m
Standards	UL 61010-1 UL 61010-2-201 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 CSA C22.2 No 213 ANSI/ISA 12-12-01 EN 61131-2
Pollution Degree	2
Ambient Air Temperature For Operation	-20-60 °C horizontal installation) -20-50 °C vertical installation) -20-45 °C flat mounting)
Shock Resistance	15 gn 11 ms
Vibration Resistance	3.5 mm 2-8.4 Hz symmetrical rail 1 gn 8.4-200 Hz symmetrical rail 3.5 mm 2-8.4 Hz panel mounting 1 gn 8.4-200 Hz panel mounting
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 %, without condensation in operation) 5-95 %, without condensation in storage)
Ip Degree Of Protection	IP20
Resistance To Electrostatic Discharge	4 kV on contact EN/IEC 61000-4-2 8 kV on air EN/IEC 61000-4-2
Resistance To Fast Transients	2 kV EN/IEC 61000-4-4 power lines) 1 kV EN/IEC 61000-4-4 Ethernet line) 1 kV EN/IEC 61000-4-4 serial link) 1 kV EN/IEC 61000-4-4 input) 1 kV EN/IEC 61000-4-4 transistor output)
Operating Altitude	0...6561.68 ft (0...2000 m)
Electromagnetic Emission	conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 radiated emissions 40 dBµV/m30-230 kHz EN/IEC 55011 conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 radiated emissions230-1000 MHz EN/IEC 55011
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1904006EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1904006EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
