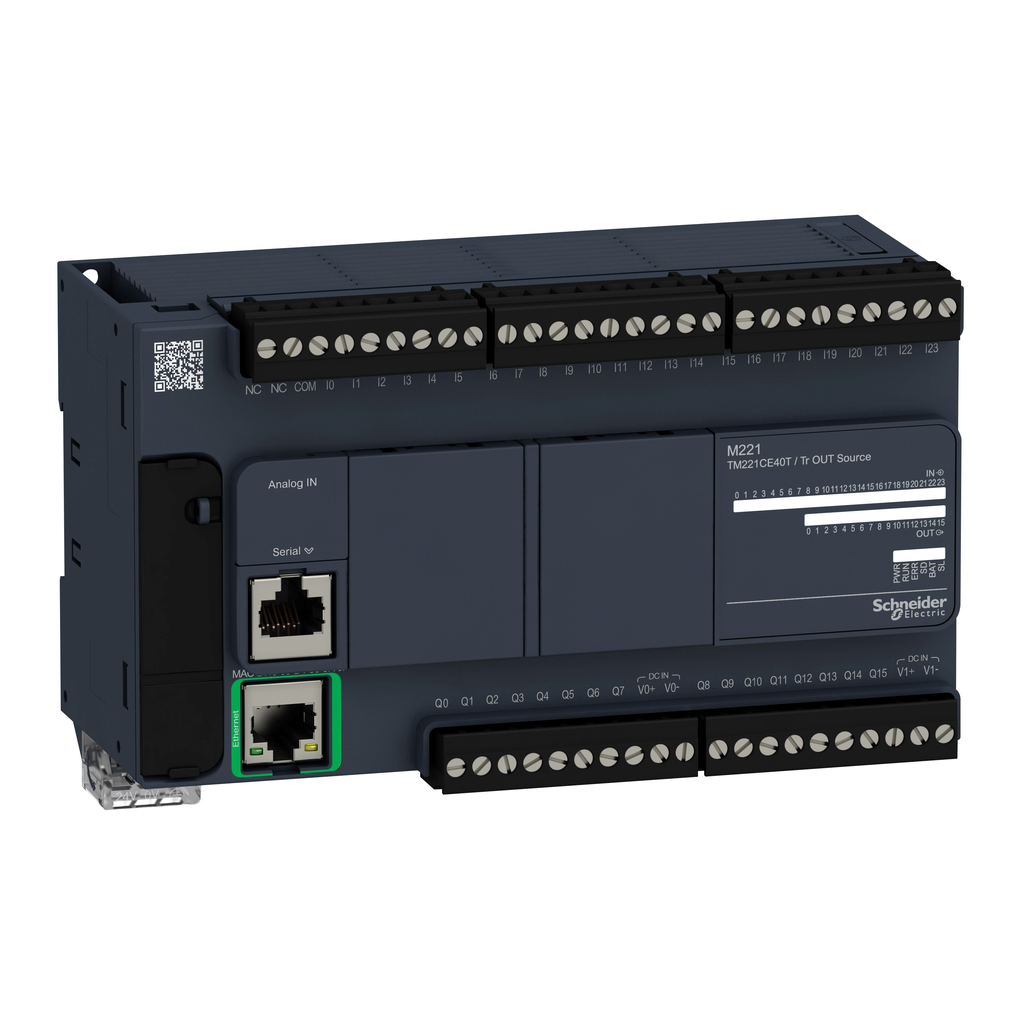

TM221CE40T – logic controller, Modicon M221, 40 IO, transistor, PNP, Ethernet
TM221CE40T
logic controller, Modicon M221, 40 IO, transistor, PNP, Ethernet

This TM221 controller is part of the Modicon M221 Logic controller range. It has 40 logic I/O and it is supplied with 24V DC. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • RCM
  • EAC
  • ABS
  • LR
  • cULus
  • DNV-GL
  • CE
  • UKCA
  • cULus HazLoc
Resistance To Conducted Disturbances
  • 10 V 0.15...80 MHz IEC 61000-4-6
  • 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)
  • 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields
  • 10 V/m 80 MHz...1 GHz IEC 61000-4-3
  • 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3
  • 1 V/m 2...2.7 GHz IEC 61000-4-3
Standards
  • IEC 61131-2
  • UL 508
  • CAN/CSA C22.2 No. 213
  • IACS E10
  • ANSI/ISA 12-12-01
Immunity To Microbreaks 10 ms
Storage Altitude 0-3000 m
Pollution Degree <= 2
Ambient Air Temperature For Operation
  • -10-55 °C horizontal installation)
  • -10-35 °C vertical installation)
Shock Resistance 147 m/s² 11 ms
Resistance To Magnetic Fields 30 A/m 50/60 Hz IEC 61000-4-8
Vibration Resistance
  • 3.5 mm 5-8.4 Hz symmetrical rail
  • 3.5 mm 5-8.4 Hz panel mounting
  • 1 gn 8.4-150 Hz symmetrical rail
  • 1 gn 8.4-150 Hz panel mounting
Ambient Air Temperature For Storage -25-70 °C
Environmental Characteristic ordinary and hazardous location
Relative Humidity
  • 10-95 %, without condensation in operation)
  • 10-95 %, without condensation in storage)
Ip Degree Of Protection IP20 with protective cover in place
Resistance To Electrostatic Discharge
  • 8 kV in air IEC 61000-4-2
  • 4 kV on contact IEC 61000-4-2
Surge Withstand
  • 2 kV power lines (AC) common mode IEC 61000-4-5
  • 2 kV relay output common mode IEC 61000-4-5
  • 1 kV I/O common mode IEC 61000-4-5
  • 1 kV shielded cable common mode IEC 61000-4-5
  • 0.5 kV power lines (DC) differential mode IEC 61000-4-5
  • 1 kV power lines (AC) differential mode IEC 61000-4-5
  • 1 kV relay output differential mode IEC 61000-4-5
  • 0.5 kV power lines (DC) common mode IEC 61000-4-5
Resistance To Fast Transients
  • 2 kV IEC 61000-4-4 power lines)
  • 2 kV IEC 61000-4-4 relay output)
  • 1 kV IEC 61000-4-4 I/O)
  • 1 kV IEC 61000-4-4 Ethernet line)
  • 1 kV IEC 61000-4-4 serial link)
Operating Altitude 0...6561.68 ft (0...2000 m)
Electromagnetic Emission
  • conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011
  • conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011
  • conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011
  • conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011
  • radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011
  • conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011
  • radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
Country of Origin Taiwan
Width 160 mm
Height 90 mm
Weight 0.456 kg
Discrete Output Type transistor
Range Of Product Modicon M221
Discrete Output Number 16 transistor 2 fast output
Product Or Component Type logic controller
Discrete Output Current 0.5 A
Discrete Output Voltage 24 V DC
Analogue Input Number 2 0...10 V
[Us] Rated Supply Voltage 24 V DC
Discrete Input Number 24 , discrete input 4 fast input IEC 61131-2 Type 1
Discrete Input Logic sink or source (positive/negative)
Data Backed Up 256 kB built-in flash memory backup of application and data
Exct Time For Event Task 60 µs response time
Input Impedance
  • 3.4 kOhm discrete input
  • 100 kOhm analog input
  • 4.9 kOhm fast input
Electrical Connection
  • removable screw terminal block for inputs
  • removable screw terminal block for outputs
  • terminal block, 3 for connecting the 24 V DC power supply
  • connector, 4 for analogue inputs
  • mini B USB 2.0 connector for a programming terminal
Maximum Cable Distance Between Devices
  • shielded cable <10 m fast input
  • unshielded cable <30 m output
  • unshielded cable <30 m digital input
  • unshielded cable <1 m analog input
  • shielded cable <3 m fast output
Height 90 mm
Discrete Output Logic positive logic (source)
Discrete Input Voltage 24 V
Maximum Power Consumption In W
  • 17 W 24 V with max number of I/O expansion module)
  • 4.9 W 24 V without I/O expansion module)
Inrush Current 35 A
Discrete Input Voltage Type DC
Communication Service
  • Modbus TCP slave device
  • Ethernet/IP adapter
  • Modbus TCP server
  • Modbus TCP client
  • DHCP client
Positioning Functions
  • PTO 2 pulse/direction 100 kHz)
  • PTO 1 CW/CCW 100 kHz)
Port Ethernet 10BASE-T/100BASE-TX 1 100 m copper cable
Maximum Current Per Output Common 4 A
Transmission Rate
  • 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485
  • 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232
  • 480 Mbit/s USB
Clock Drift <= 30 s/month 25-25 °C
Battery Type BR2032 or CR2032X lithium non-rechargeable
Output Frequency
  • 100 kHz fast output (PWM/PLS mode) Q0...Q1
  • 5 kHz output Q2...Q3
  • 0.1 kHz output Q4...Q15
Communication Port Protocol
  • USB port USB - SoMachine-Network
  • non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
  • Ethernet
Protection Type overload and short-circuit protection 1 A
Marking CE
Backup Time 1 year 25 °C by interruption of power supply)
Discrete I/O Number 40
Reset Time 1 s automatic reset
Regulation Loop adjustable PID regulator up to 14 simultaneous loops
Maximum Number Of I/O Expansion Module
  • 7 (local I/O-Architecture)
  • 14 (remote I/O-Architecture)
Power Supply Output Current
  • 0.52-0.52 A 5 V expansion bus
  • 0.3-0.3 A 24 V expansion bus
Net Weight 0.456 kg
Voltage State 0 Guaranteed <= 5 V input
Maximum Voltage Drop <1 V
Configurable Filtering Time
  • 0 ms input
  • 3 ms input
  • 12 ms input
Maximum Size Of Object Areas
  • 512 %KW constant words
  • 255 %TM timers
  • 255 %C counters
  • 8000 %MW memory words
  • 512 %M memory bits
Memory Capacity
  • 256 kB user application and data RAM 10000 instructions
  • 256 kB internal variables RAM
Conversion Time 1 ms per channel + 1 controller cycle time analog input
Voltage State 1 Guaranteed >= 15 V input
Function Available
  • PWM
  • PLS
  • frequency generator
Control Signal Type
  • A/B
  • pulse/direction
  • single phase
Supply Voltage Limits 20.4-28.8 V
Integrated Connection Type
  • USB port mini B USB 2.0
  • non isolated serial link serial 1 RJ45 RS232/RS485
  • Ethernet RJ45
Execution Time Per Instruction 0.2 µs Boolean
Mechanical Durability 20000000 cycles transistor output
Absolute Accuracy Error +/- 1 % of full scale analog input
Mounting Support
  • top hat type TH35-15 rail IEC 60715
  • top hat type TH35-7.5 rail IEC 60715
  • plate or panel with fixing kit
Local Signalling
  • for PWR 1 LED (green)
  • for RUN 1 LED (green)
  • for module error (ERR) 1 LED (red)
  • for SD card access (SD) 1 LED (green)
  • for BAT 1 LED (red)
  • for I/O state 1 LED per channel (green)
  • for SL 1 LED (green)
  • for ACT Ethernet network activity (green)
  • for Link (Link Status) Ethernet network link (yellow)
Response Time
  • 35 µs turn-off, I2...I5 input
  • 5 µs turn-on, I0, I1, I6, I7 fast input
  • 35 µs turn-on, other terminals input
  • 5 µs turn-off, I0, I1, I6, I7 fast input
  • 100 µs turn-off, other terminals input
  • 5 µs turn-on, turn-off, Q0...Q1 output
  • 50 µs turn-on, turn-off, Q2...Q3 output
  • 300 µs turn-on, turn-off, other terminals output
Discrete Input Current
  • 7 mA discrete input
  • 5 mA fast input
Execution Time For 1 Kinstruction 0.3 ms event and periodic task
Analogue Input Resolution 10 bits
Realtime Clock with
Lsb Value 10 mV
Width 160 mm
Depth 70 mm
Maximum Tungsten Load <12 W output and fast output
Maximum Leakage Current 0.1 mA transistor output
Data Storage Equipment 2 GB SD card optional)
Insulation
  • between input and internal logic 500 V AC
  • between fast input and internal logic 500 V AC
  • non-insulated between inputs
  • between output and internal logic 500 V AC
  • non-insulated between analogue input and internal logic
  • non-insulated between analogue inputs
Supply serial)serial link supply 5 V, <200 mA
Counting Input Number 4 fast input (HSC mode) 100 kHz 32 bits
Permitted Overload On Inputs
  • +/- 30 V DC 5 min maximum)analog input
  • +/- 13 V DC permanent)analog input
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1403012EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1403012EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
