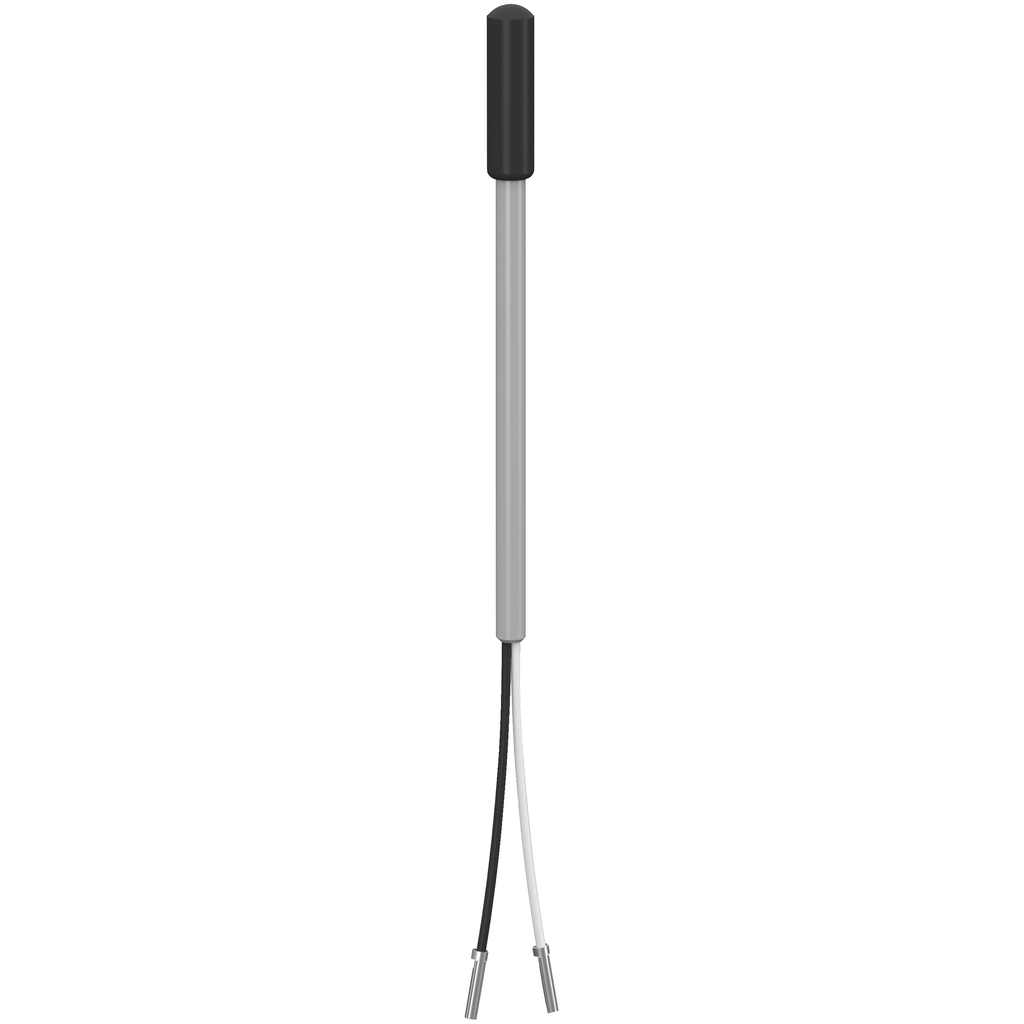

TM1STNTCRN52015
NTC 1,5m IP68 5x20 -50+110°C Grey
Specifications
| Cable Length | 1.5 m +/- 3 %) |
|---|---|
| Temperature Probe Type | NTC |
| Height | 5 mm |
| Mounting Support | cables |
| Fixing Mode | clip-on |
| Electrical Connection | 2 conductors cable controller side |
| Material | thermoplastic rubber |
| Connections - Terminals | cable, 2 x 0.25 mm² with wire end ferrule |
| Cable Outer Diameter | 3.3 mm |
| Color | Gray |
| Width | 20 mm |
| Country of Origin | Italy |
| Width | 20 mm |
| Height | 5 mm |
| Range Of Product | Modicon M171 |
| Accessory / Separate Part Category | thermal management accessory |
| Product Specific Application | temperature control |
| Accessory / Separate Part Type | probe |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ip Degree Of Protection | IP68 |
