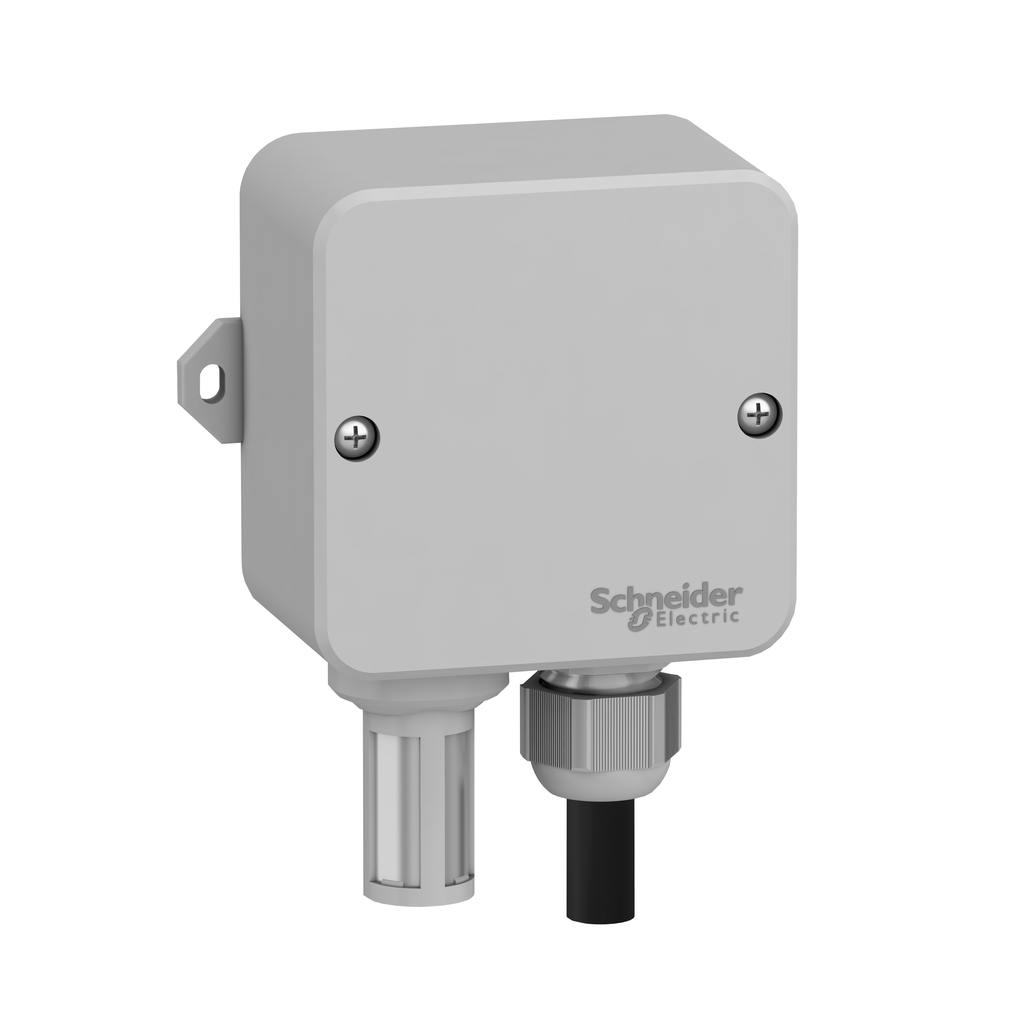

TM1SHC4
Humidity sensor, 4-20 mA
Specifications
| Height | 122 mm |
|---|---|
| Device Mounting | wall mounted |
| Mounting Support | mounting box |
| Fixing Mode | 2 fixing points |
| Electrical Connection | screw-clamp terminals |
| Net Weight | 0.14 kg |
| Output Type | current 4...20 mA +/- 3 % RH |
| Average Consumption In Ma | 20 mA |
| [Us] Rated Supply Voltage | 9...28 V DC |
| Product Specific Application | humidity control |
| Width | 100 mm |
| Depth | 50.5 mm |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-60 °C |
| Pollution Degree | 2 |
| Relative Humidity | 0-100 % |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | I |
| Ip Degree Of Protection | IP65 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1709014EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1709014EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | United States |
| Width | 100 mm |
| Height | 122 mm |
| Weight | 0.14 kg |
| Range Of Product | Modicon M171/M172 |
| Accessory / Separate Part Category | measurement accessory |
| Accessory / Separate Part Type | probe |
