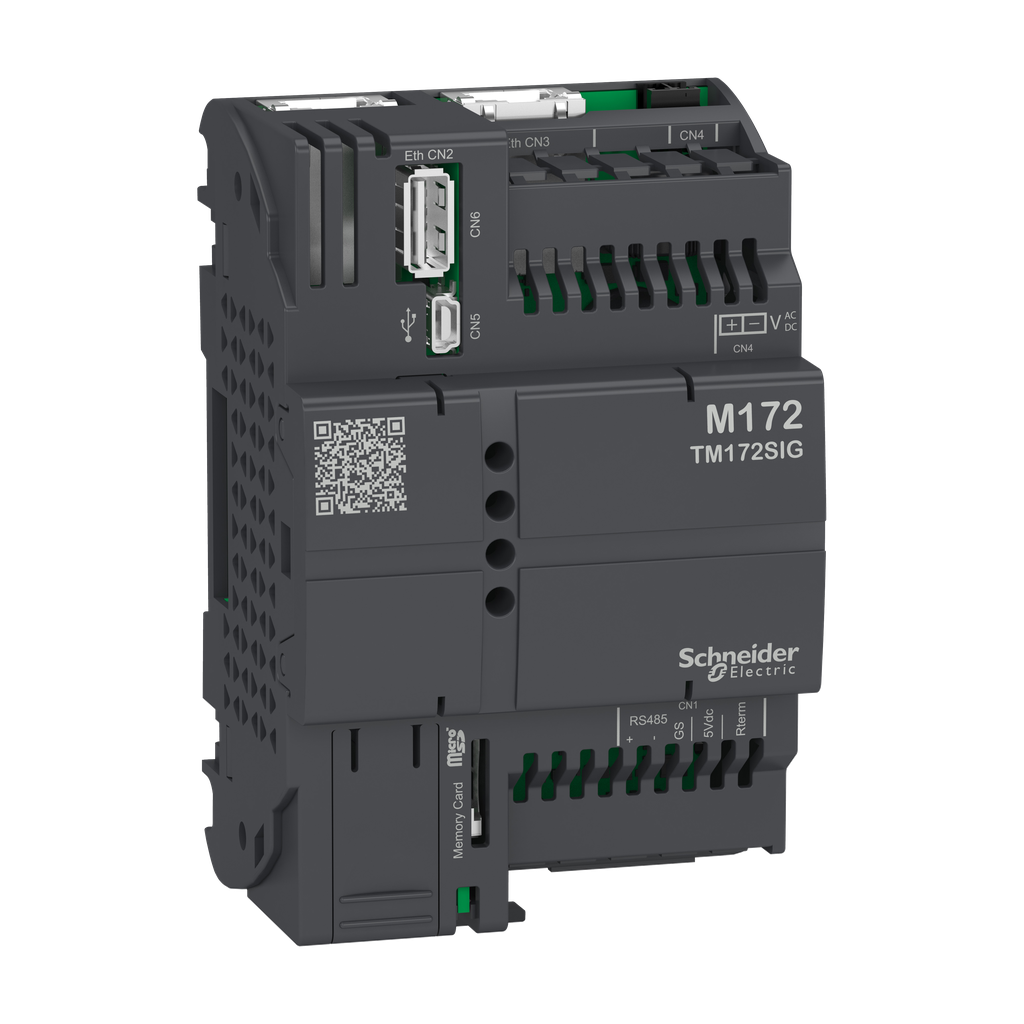

TM172SIG
M172 IIoT Secure Interface Gateway
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2207003EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2207003EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Italy |
| Width | 110 mm |
| Height | 60 mm |
| Weight | 0.165 kg |
| Range Of Product | Modicon M171/M172 |
| Product Or Component Type | communication module |
| Communication Port Protocol |
|
| Concept | Modbus |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-55 °C |
| Pollution Degree | 2 |
| Shock Resistance | 1 g 11 ms |
| Ambient Air Temperature For Storage | -30-70 °C |
| Relative Humidity | 5-95 % non-condensing |
| Ip Degree Of Protection | IP20 |
| Height | 60 mm |
| Physical Interface |
|
| Power Consumption In W | 8 W |
| Supply | external power supply |
| Net Weight | 0.165 kg |
| Integrated Connection Type |
|
| Transmission Rate |
|
| Local Signalling |
|
| Width | 110 mm |
| Overvoltage Category | I |
| Depth | 72 mm |
| Product Compatibility | logic controller M172 |
| Memory Description |
|
Documents
- TM172SI. Secure Interface, Instruction Sheet - 9IS54844.00_TM172SI+Secure+Interface+-+IS+-+10L+-+0322 (pdf)
- Build HVAC machines with sustainability by design! - 998-21165013_GMA_Modicon+sustainability+flyer_QA1 (pdf)
- Spec Sheet
- Modicon M171/M172/M173_Logic controllers for HVAC and Pumping applications - Modicon+M171+M172+M173_Logic+controllers+for+HVAC+and+Pumping+applications_Catalog+January+2024 (pdf)
