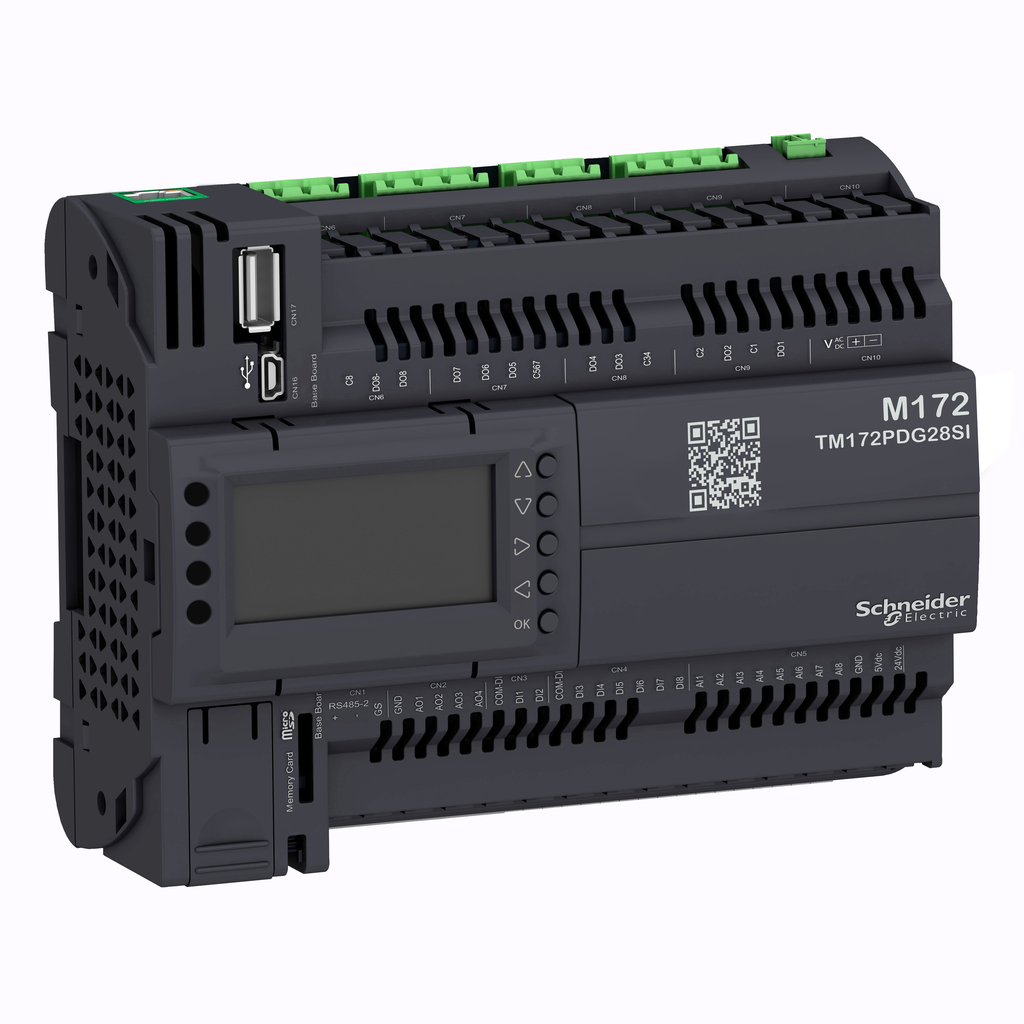

TM172PDG28SI - Modicon M172 Performance Display 28 I/Os, Eth, Solid State Relay

TM172PDG28SI

Modicon M172 Performance Display 28 I/Os, Eth, Solid State Relay

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1709014EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1709014EN
Upgradeability	Upgradeable through digital modules and upgraded components
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Power Consumption In W	12 W 24 V AC/DC
Height	110 mm
Mounting Support	DIN rail panel mounting with accessory
Discrete Input Voltage	24 V AC/DC
Display Type	Backlit LCD - 128 x 64 pixels
Net Weight	0.3 kg
Number Of Port	1 CAN port - screw terminal block 1 USB type A - USB type A female 1 USB type mini B - USB device port Mini-B 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
[Us] Rated Supply Voltage	24 V +/- 10 % AC 20...38 V DC
Sensor Power Supply	5-5 V DC 50 mA supplied by the controller 24-24 V DC 150 mA supplied by the controller
Local Signalling	for programmable 1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green) for power 1 LED (green)
Input Impedance	10 kOhm
Discrete Input Current	2.5 mA
Realtime Clock	built-in clock, clock drift <= 30 s/month at -20-65 °C
Width	144 mm
Analogue Input Type	impedance 0...1500 hOhm 1 hOhm 10 kOhm impedance 0...300 daOhm 1 daOhm 2 kOhm NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm voltage 0...10 V 1 digit > 10 kOhm NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended) current 0...20 mA/4...20 mA 1 digit < 150 Ohm PTC temperature probe - 55...150 °C 0.1 °C 2 kOhm voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric) Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm direct input > 10 kOhm
Overvoltage Category	II
Depth	60.5 mm
Input/Output Number	8 digital input 8 analog input 4 analog output 8 digital output
Discrete Input Logic	sink or source (positive/negative)
Measurement Accuracy	NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C PTC - 55...155 °C +/- 1.1 °C Pt 1000 - 200...-100 °C +/- 10 °C Pt 1000 - 100...-50 °C +/- 2.5 °C Pt 1000 - 50...100 °C +/- 1.5 °C Pt 1000 100…400 °C +/- 2.4 °C Pt 1000 400...850 °C +/- 10 °C 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit 4...20 mA +/- 1 % of full scale +/- 1 digit 0...10 V +/- 1 % of full scale +/- 1 digit 0...5 V +/- 1 % of full scale +/- 1 digit hOhm 0...1500 hOhm +/- 8.5 hOhm daOhm 0...300 daOhm +/- 2.5 daOhm
Product Certifications	EAC CE cURus CSA RCM
Standards	CAN/CSA-E60730-1 CSA E60730-2-9 EN 60068-2-27 EN 60068-2-6 Fc EN 60730-1 EN 60730-2-9 UL 60730-1 UL 60730-2-9 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-11 UL94 (material V0)
Pollution Degree	2
Ambient Air Temperature For Operation	-20-65 °C UL 60730-1 -20-55 °C horizontal UL 60730-1
Directives	2014/30/EU - electromagnetic compatibility 2014/35/EU - low voltage directive
Ambient Air Temperature For Storage	-30-70 °C
Relative Humidity	5-95 % non-condensing
Ip Degree Of Protection	IP20
Operating Altitude	0...6561.68 ft (0...2000 m)
Country of Origin	United States
Width	144 mm
Height	110 mm
Weight	0.3 kg
Analogue Output Number	2 voltage 0...10 V 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
Range Of Product	Modicon M171/M172
Discrete Output Number	1 relay outputs SPDT with independent common 3 relay outputs SPST with same common 2 relay outputs SPST with same common 2 solid state, isolated SSR with independent common
Variant	programmable
Product Or Component Type	programmable controllers
Number Of Inputs/Outputs	28
Discrete Output Current	3 A relay SPDT 3 A relay SPST 0.5 A solid state, isolated
Analogue Input Number	8 configurable by pair
Discrete Input Number	8
Product Specific Application	HVAC control
