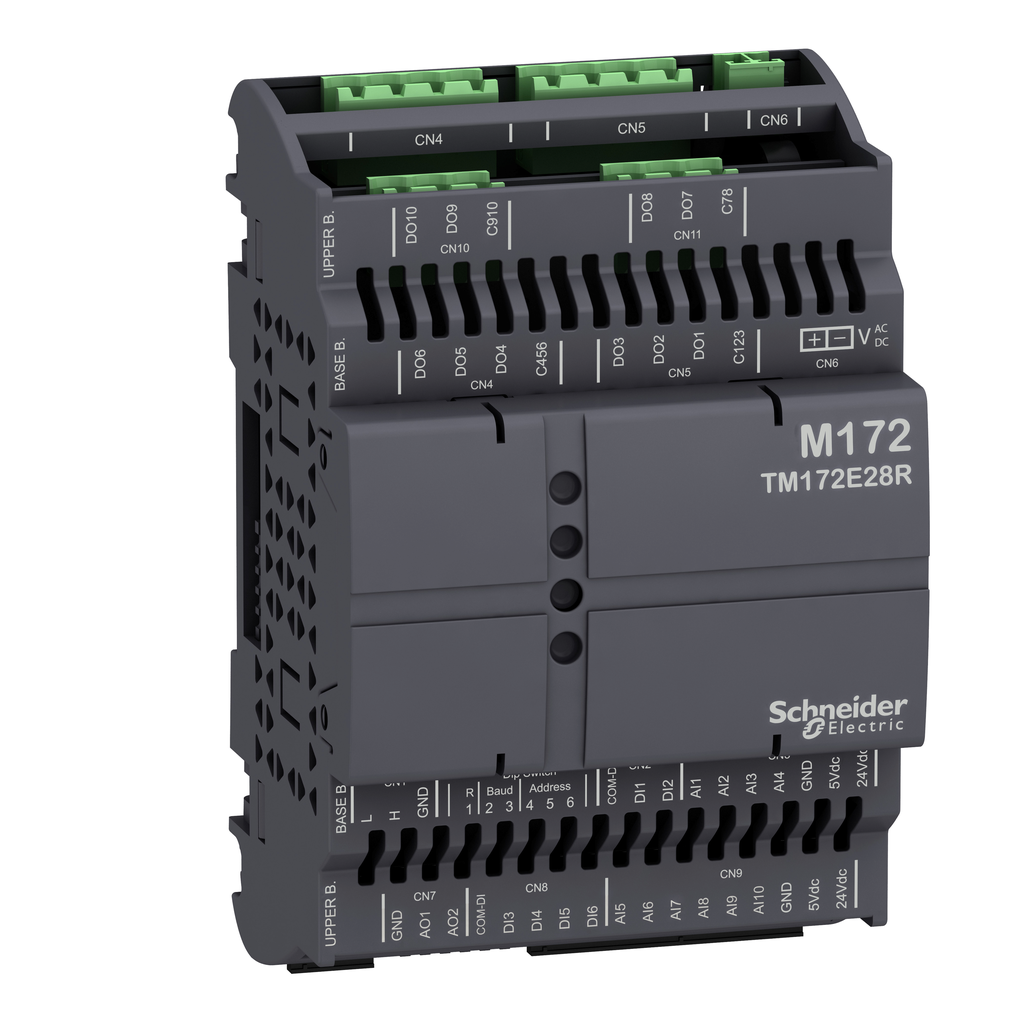

Expansion module, Modicon M172/M172/M173, optimized and performance, 28 IO
This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 6 discrete inputs with 2 display positive logic (sink) up to 2kHz and 4 display positive logic (sink). It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 10 configurable by pair analogue input with 2 programmable analogue outputs. It is an IP20 rated product. Its dimensions are 72mm (width) x 59mm (depth) x 110mm (height). It weighs 0.19kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1709014EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1709014EN |
| Upgradeability | Upgradeable through digital modules and upgraded components |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Power Consumption In W |
|
| Height | 110 mm |
| Mounting Support |
|
| Discrete Input Voltage | 24 V AC/DC |
| Display Type | Without Display |
| Net Weight | 0.19 kg |
| Number Of Port | 1 CAN port - screw terminal block |
| [Us] Rated Supply Voltage |
|
| Sensor Power Supply |
|
| Input Impedance | 20 kOhm |
| Discrete Input Current | 2.5 mA AC/DC |
| Realtime Clock | without clock |
| Width | 72 mm |
| Analogue Input Type |
|
| Overvoltage Category | II |
| Depth | 59 mm |
| Input/Output Number |
|
| Discrete Input Logic |
|
| Measurement Accuracy |
|
| Product Certifications |
|
| Standards |
|
| Pollution Degree | 2 |
| Ambient Air Temperature For Operation | -20-65 °C UL 60730-1 |
| Directives |
|
| Ambient Air Temperature For Storage | -30-70 °C |
| Relative Humidity | 5-95 % non-condensing |
| Ip Degree Of Protection | IP20 |
| Country of Origin | Italy |
| Width | 72 mm |
| Height | 110 mm |
| Weight | 0.19 kg |
| Analogue Output Number | 2 programmable |
| Range Of Product | Modicon M171/M172 |
| Discrete Output Number |
|
| Product Or Component Type | additional I/O module |
| Number Of Inputs/Outputs | 28 |
| Discrete Output Current | 3 A relay SPST |
| Analogue Input Number | 10 configurable by pair |
| Discrete Input Number |
|
| Product Specific Application | HVAC control |
