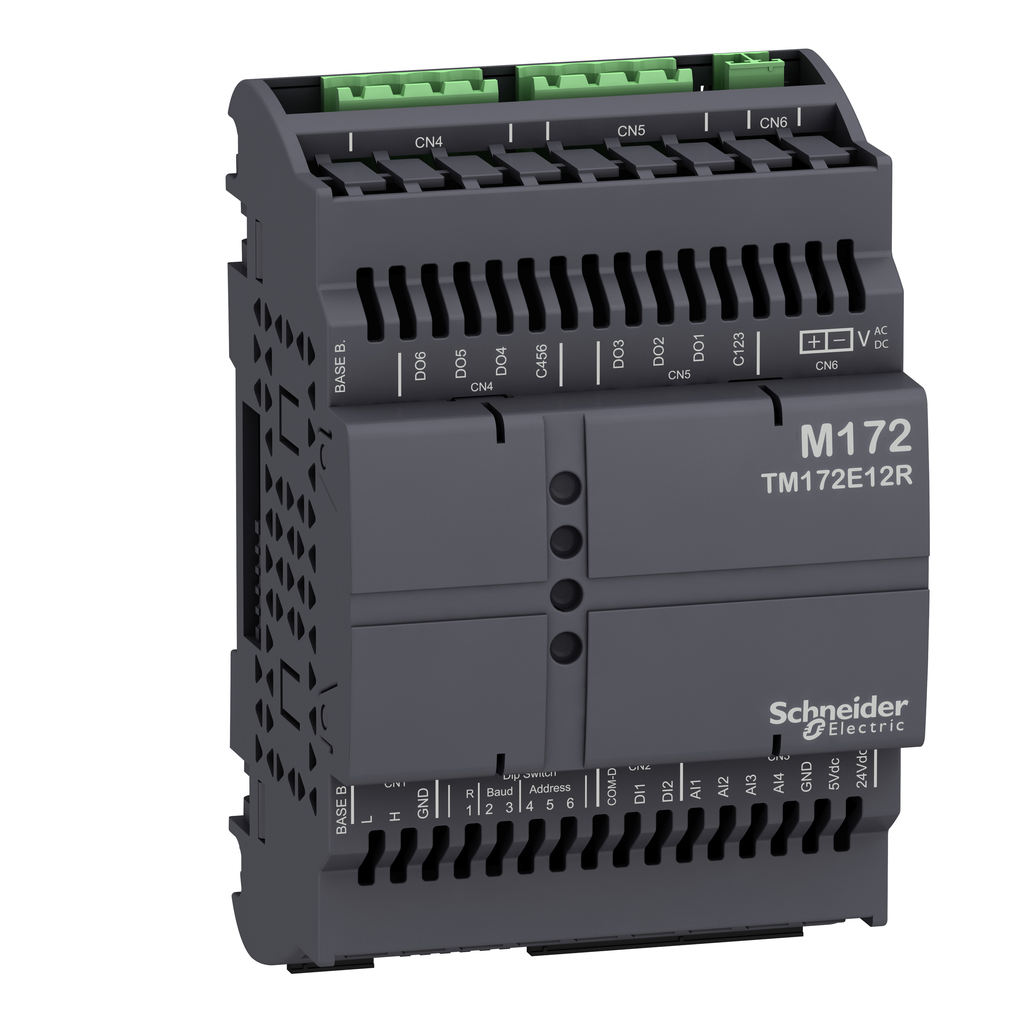

TM172E12R
Modicon M172 Optimized and Performance expansion 12 I/Os
Specifications
| Country of Origin | Italy |
|---|---|
| Width | 72 mm |
| Height | 110 mm |
| Weight | 0.14 kg |
| Range Of Product | Modicon M171/M172 |
| Discrete Output Number | 3 relay outputs SPST with same common |
| Product Or Component Type | additional I/O module |
| Number Of Inputs/Outputs | 12 |
| Discrete Output Current | 3 A relay SPST |
| Analogue Input Number | 4 configurable by pair |
| Discrete Input Number | 2 |
| Product Specific Application | HVAC control |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1709014EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1709014EN |
| Upgradeability | Upgradeable through digital modules and upgraded components |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards |
|
| Pollution Degree | 2 |
| Ambient Air Temperature For Operation | -20-65 °C UL 60730-1 |
| Directives |
|
| Ambient Air Temperature For Storage | -30-70 °C |
| Relative Humidity | 5-95 % non-condensing |
| Ip Degree Of Protection | IP20 |
| Power Consumption In W |
|
| Height | 110 mm |
| Mounting Support |
|
| Discrete Input Voltage | 24 V AC/DC |
| Display Type | Without Display |
| Net Weight | 0.14 kg |
| Number Of Port | 1 CAN port - screw terminal block |
| [Us] Rated Supply Voltage |
|
| Sensor Power Supply |
|
| Input Impedance | 20 kOhm |
| Discrete Input Current | 2.5 mA AC/DC |
| Realtime Clock | without clock |
| Width | 72 mm |
| Analogue Input Type |
|
| Overvoltage Category | II |
| Depth | 59 mm |
| Input/Output Number |
|
| Discrete Input Logic | positive logic (sink) up to 2 kHz |
| Measurement Accuracy |
|
Documents
- TM172E12R / TM172E28R - M172 Optimized & Performance Expansion, Instruction Sheet - QGH26895_04 (pdf)
- Build HVAC machines with sustainability by design! - 998-21165013_GMA_Modicon+sustainability+flyer_QA1 (pdf)
- Spec Sheet
- Modicon M171/M172/M173_Logic controllers for HVAC and Pumping applications - Modicon+M171+M172+M173_Logic+controllers+for+HVAC+and+Pumping+applications_Catalog+January+2024 (pdf)
