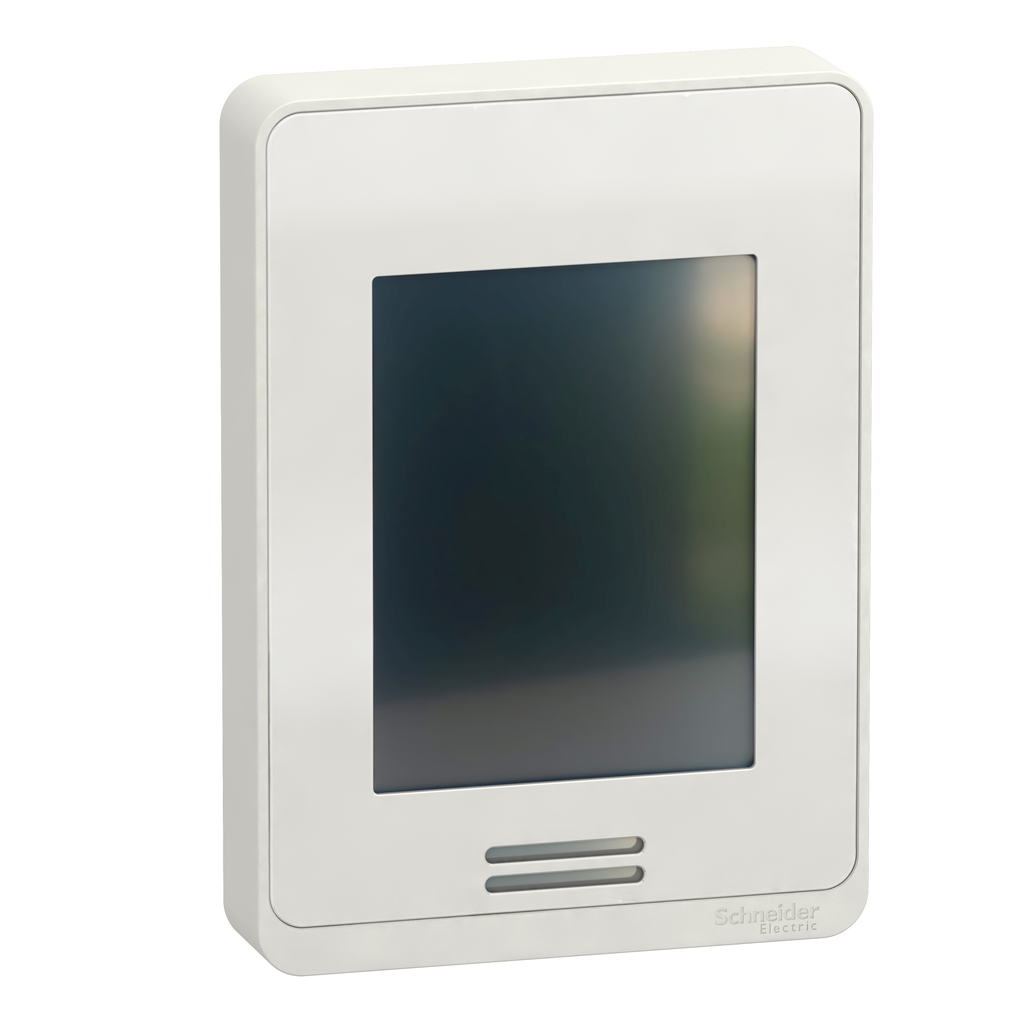

TM172DCLWTH - Modicon M172 Display Color TouchScreen, Temperature & Humidity built-in sensors

TM172DCLWTH

Modicon M172 Display Color TouchScreen, Temperature & Humidity built-in sensors

This product is part of the Modicon M171/M172 range, an offer of display modules for HVAC solutions. This display module features an LCD display and color touchscreen with 320 x 240 pixels display resolution. It offers external source supply with rated supply voltage of 24V AC/DC. Its dimensions are 86mm (width) x 25mm (depth) x 120mm (height). It weighs 0.34kg. This product is certified by CE, RCM, EAC and CTUVus. It meets EN 60950-1, EN 55024, CSA C22.2 No 24, EN 55032 and UL 873 standards. It is compatible with logic controller M172 and logic controller M171. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Height	120 mm
Power Consumption In W	3.2 VA 1.3 W
Display Resolution	320 x 240 pixels
Net Weight	0.34 kg
[Us] Rated Supply Voltage	24 V AC/DC
Color	White
Width	86 mm
Display Type	LCD display colour touchscreen
Analogue Input Type	NTC 10k type 2 temperature probe - 40...50 °C +/- 0.1 °C NTC 10k temperature probe at 21 °C +/- 0.5 °C humidity probe 10...90 % without condensation 10...20 % +/- 10 % humidity probe 10...90 % without condensation 20...80 % +/- 5 % humidity probe 10...90 % without condensation 80...90 % +/- 10 %
Depth	25 mm
Product Compatibility	logic controller M172 logic controller M171
Country of Origin	Mexico
Width	86 mm
Height	120 mm
Weight	0.34 kg
Range Of Product	Modicon M171/M172
Supply	external source
Product Or Component Type	display module
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1410006
California Proposition 65	WARNING: This product can expose you to chemicals including: LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1410006
Eu Rohs Directive	Compliant with Exemptions
Product Certifications	cTUVus EAC RCM CE
Ambient Air Temperature For Operation	0-50 °C
Standards	UL 873 EN 55032 CSA C22.2 No 24 EN 55024 IEC 60950-1
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-30-50 °C
