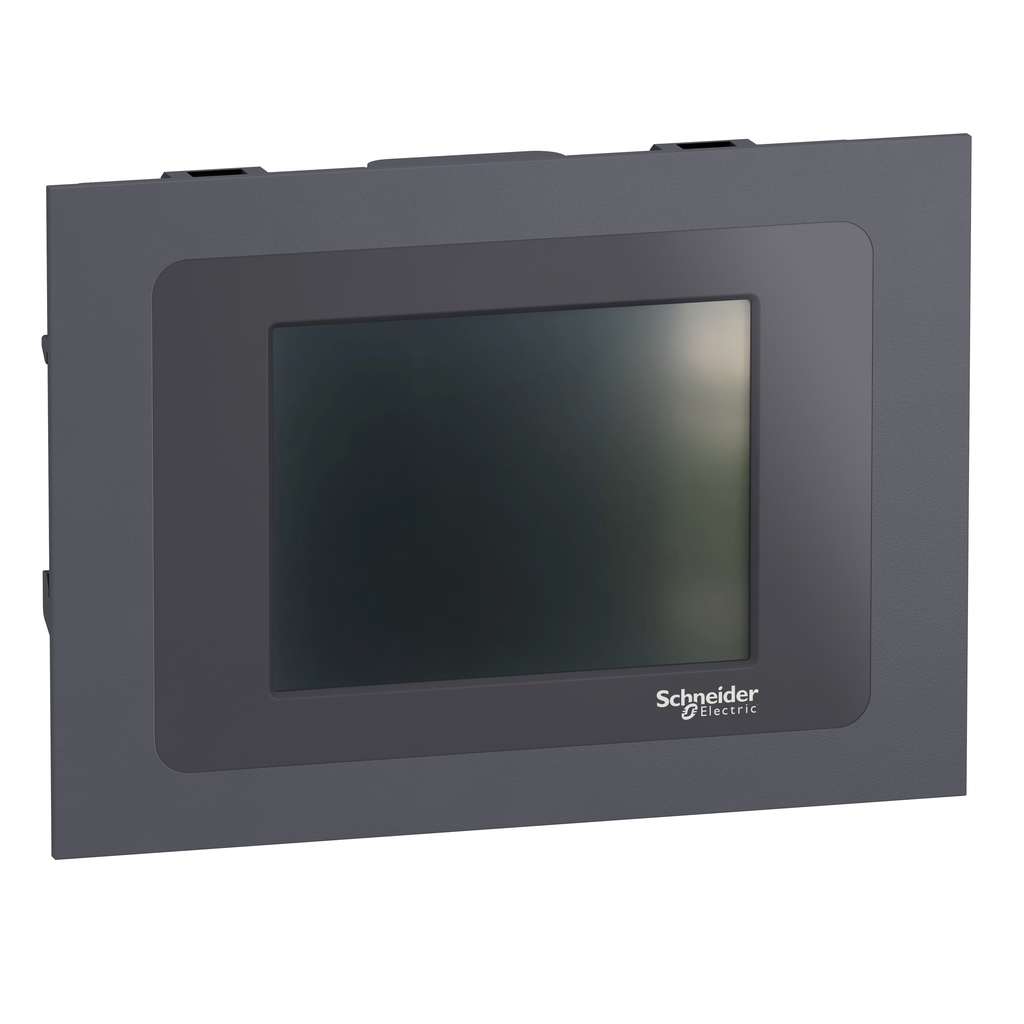

TM172DCLFG - Modicon M172 Display Color TouchScreen Grey

TM172DCLFG

Modicon M172 Display Color TouchScreen Grey

Add to Quote Catalogue

Specifications

Country of Origin	Italy
Width	134 mm
Height	96 mm
Weight	0.175 kg
Range Of Product	Modicon M171/M172
Supply	external source
Product Or Component Type	display module
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1803026EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1803026EN
Upgradeability	Upgradeable through digital modules and upgraded components
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Height	96 mm
Power Consumption In W	1.3 W 3.2 VA
Display Resolution	320 x 240 pixels
Net Weight	0.175 kg
[Us] Rated Supply Voltage	24 V AC/DC
Color	Gray
Width	134 mm
Display Type	LCD display colour touchscreen
Overvoltage Category	II
Depth	35 mm
Product Compatibility	logic controller M171 logic controller M172
Product Certifications	RCM CE cURus EAC CSA
Ambient Air Temperature For Operation	-20-60 °C
Standards	UL 60730-1 UL 60730-2-9 CSA E60730-2-9 IEC 61000-4-3 IEC 61000-4-6 CAN/CSA-E60730-1 IEC 61000-4-2 IEC 61000-4-4 IEC 60730-1 IEC 61000-4-11 IEC 61000-4-5 IEC 60730-2-9 UL 94
Pollution Degree	2
Directives	2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-30-60 °C
Ip Degree Of Protection	IP65 front panel:
