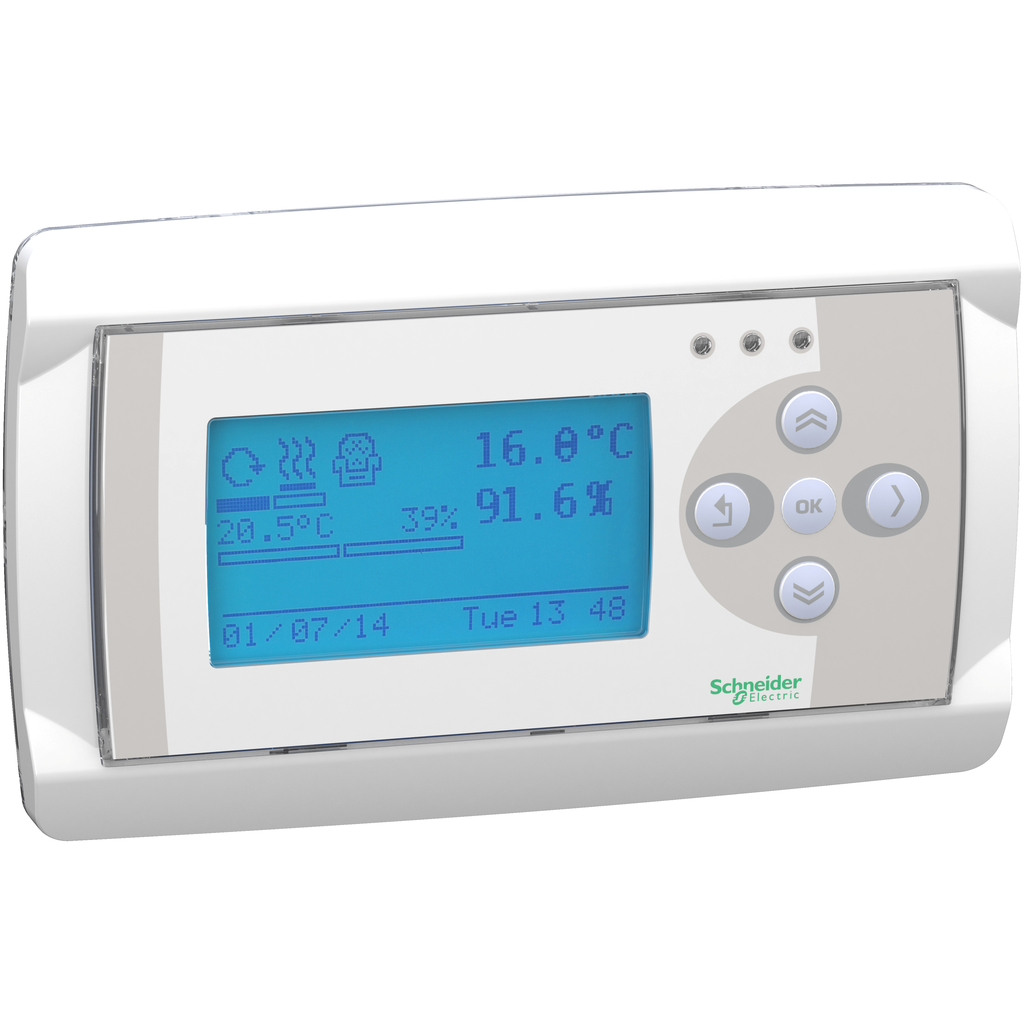

TM171PFE03
Modicon M171 Performance Flush 3 I/Os, Modbus SL/TCP & BACnet MSTP and IP
Specifications
| Country of Origin | Italy |
|---|---|
| Width | 72 mm |
| Height | 110 mm |
| Weight | 0.19 kg |
| Range Of Product | Modicon M171/M172 |
| Variant | programmable |
| Product Or Component Type | programmable controllers |
| Number Of Inputs/Outputs | 3 |
| Analogue Input Number |
|
| Product Specific Application | HVAC and pumping solution |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Upgradeability | Upgradeable through digital modules and upgraded components |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
| Product Certifications |
|
| Standards | EN/IEC 60730 |
| Pollution Degree | 2 |
| Ambient Air Temperature For Operation | -20-65 °C UL 60730-1 |
| Ambient Air Temperature For Storage | -20-85 °C |
| Relative Humidity | 10-90 % non-condensing |
| Ip Degree Of Protection | IP20 |
| Power Consumption In W |
|
| Height | 110 mm |
| Mounting Support |
|
| Display Type | Without Display |
| Net Weight | 0.19 kg |
| Number Of Port |
|
| [Us] Rated Supply Voltage |
|
| Local Signalling | without |
| Realtime Clock | without clock at -20-65 °C |
| Width | 72 mm |
| Analogue Input Type |
|
| Overvoltage Category | II |
| Depth | 60.5 mm |
| Input/Output Number | 3 analog input |
