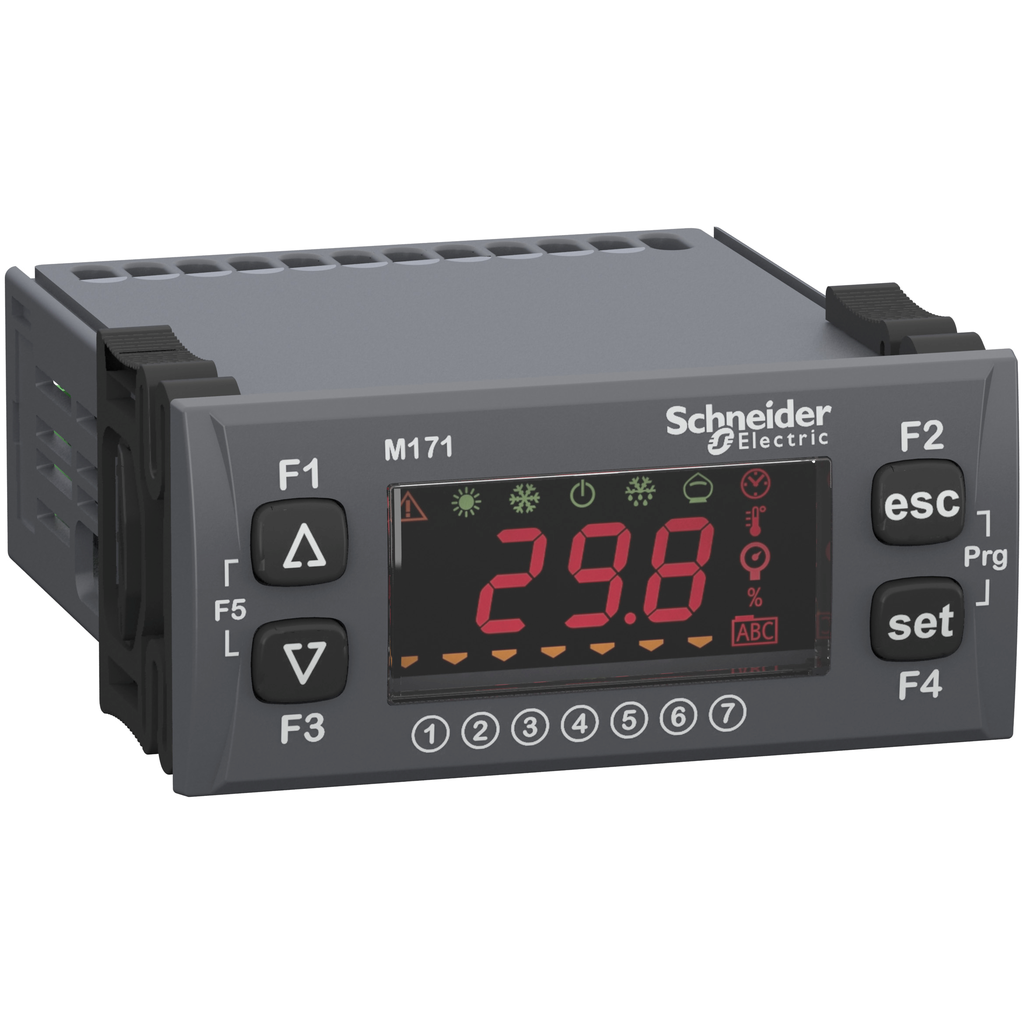

TM171OF22R - Modicon M171 Optimized Flush mounting 22 I/Os

TM171OF22R

Modicon M171 Optimized Flush mounting 22 I/Os

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Upgradeability	Upgradeable through digital modules and upgraded components
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Power Consumption In W	18 W 24...48 V AC/DC
Contacts Usage	volt-free contacts
Height	110 mm
Mounting Support	DIN rail
Display Type	Without Display
Net Weight	0.385 kg
Number Of Port	1 LAN expansion bus
[Us] Rated Supply Voltage	12...24 V +/- 20 % AC/DC 24 V +/- 20 % DC
Sensor Power Supply	12-12 V DC 85 mA 5-5 V DC 20 mA
Local Signalling	for programmable 1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green)
Realtime Clock	built-in clock at -10-55 °C
Width	140 mm
Analogue Input Type	voltage 0...5 V ratiometric) voltage 0...10 V NTC temperature probe - 50...100 °C 0.1 °C current 0...20 mA/4...20 mA voltage 0...1 V
Overvoltage Category	II
Depth	61.6 mm
Input/Output Number	5 analog output 6 digital input 5 analog input 6 digital output
Discrete Input Logic	sink or source (positive/negative)
Country of Origin	Italy
Width	140 mm
Height	110 mm
Weight	0.385 kg
Analogue Output Number	3 voltage 0...10 V 2 PWM/PPM 20 kHz, 12 V, 35 mA
Range Of Product	Modicon M171/M172
Discrete Output Number	1 open collector 3 relay outputs SPST with same common 2 relay outputs SPST with independent common
Variant	programmable
Product Or Component Type	controller
Number Of Inputs/Outputs	22
Discrete Output Current	2 A relay
Analogue Input Number	2 configurable 3 analog input NTC
Discrete Input Number	6
Product Specific Application	HVAC and pumping solution
Product Certifications	CE cURus CSA EAC
Standards	EN/IEC 60730
Pollution Degree	2
Ambient Air Temperature For Operation	-10-55 °C UL 60730-1
Directives	86/188/EEC - physical agents (noise) directive 2006/95/EC - low voltage directive
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	10-90 % non-condensing
Ip Degree Of Protection	IP20

Modicon M171 Optimized Flush mounting 22 I/Os
