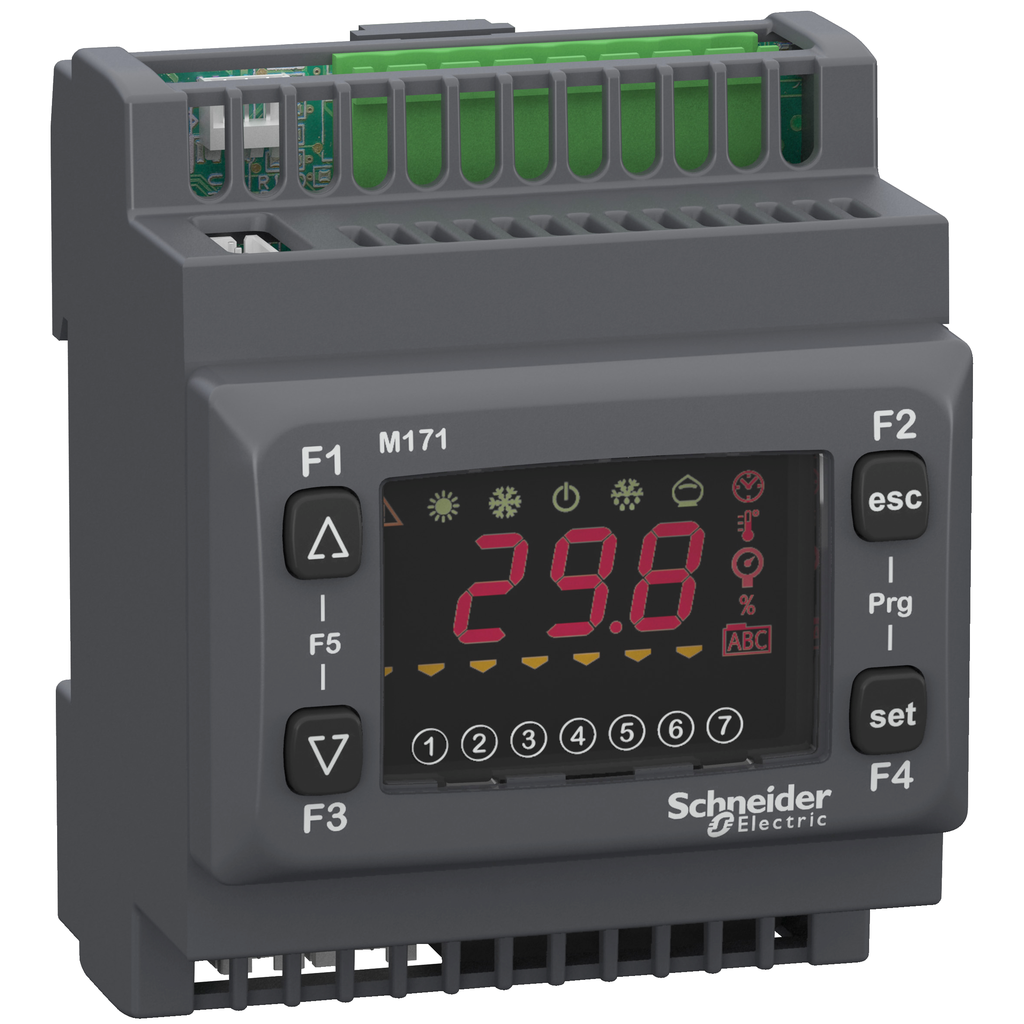

TM171ODM22S - Modicon M171 Optimized Display 22 I/Os, Modbus, 2 SSR

TM171ODM22S

Modicon M171 Optimized Display 22 I/Os, Modbus, 2 SSR

Add to Quote Catalogue

Specifications

Country of Origin	Italy
Width	74 mm
Height	32 mm
Weight	0.164 kg
Analogue Output Number	3 voltage 0...10 V 1 PWM/PPM 20 kHz, 12 V, 35 mA 2 triac 3 A
Range Of Product	Modicon M171/M172
Discrete Output Number	1 open collector 3 relay outputs SPST with same common 2 solid state SSR with independent common
Variant	programmable
Product Or Component Type	controller
Number Of Inputs/Outputs	22
Discrete Output Current	2 A relay 2 A triac
Analogue Input Number	2 configurable 3 analog input NTC
Discrete Input Number	6
Product Specific Application	HVAC and pumping solution
Product Certifications	CSA CE cURus EAC
Standards	EN/IEC 60730
Pollution Degree	2
Ambient Air Temperature For Operation	-20-55 °C UL 60730-1
Directives	2006/95/EC - low voltage directive 86/188/EEC - physical agents (noise) directive
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	10-90 % non-condensing
Ip Degree Of Protection	IP20
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1710004EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1710004EN
Upgradeability	Upgradeable through digital modules and upgraded components
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Power Consumption In W	4 W
Contacts Usage	volt-free contacts
Height	32 mm
Mounting Support	flush mounting
Display Type	four 7-segment display units
Net Weight	0.164 kg
Number Of Port	1 LAN expansion bus 1 RS485 - screw terminal block Modbus serial link)
[Us] Rated Supply Voltage	12...24 V +/- 10 % AC 24 V +/- 10 % DC
Sensor Power Supply	12-12 V DC 85 mA 5-5 V DC 20 mA
Local Signalling	6 LEDs (red) 5 LEDs (green) for programmable 7 LEDs (amber)
Realtime Clock	built-in clock at -20-55 °C
Width	74 mm
Analogue Input Type	voltage 0...5 V ratiometric) voltage 0...10 V NTC temperature probe - 50...100 °C 0.1 °C current 0...20 mA/4...20 mA voltage 0...1 V
Overvoltage Category	II
Depth	76 mm
Input/Output Number	5 analog output 6 digital input 5 analog input 6 digital output
Discrete Input Logic	sink or source (positive/negative)

Modicon M171 Optimized Display 22 I/Os, Modbus, 2 SSR
