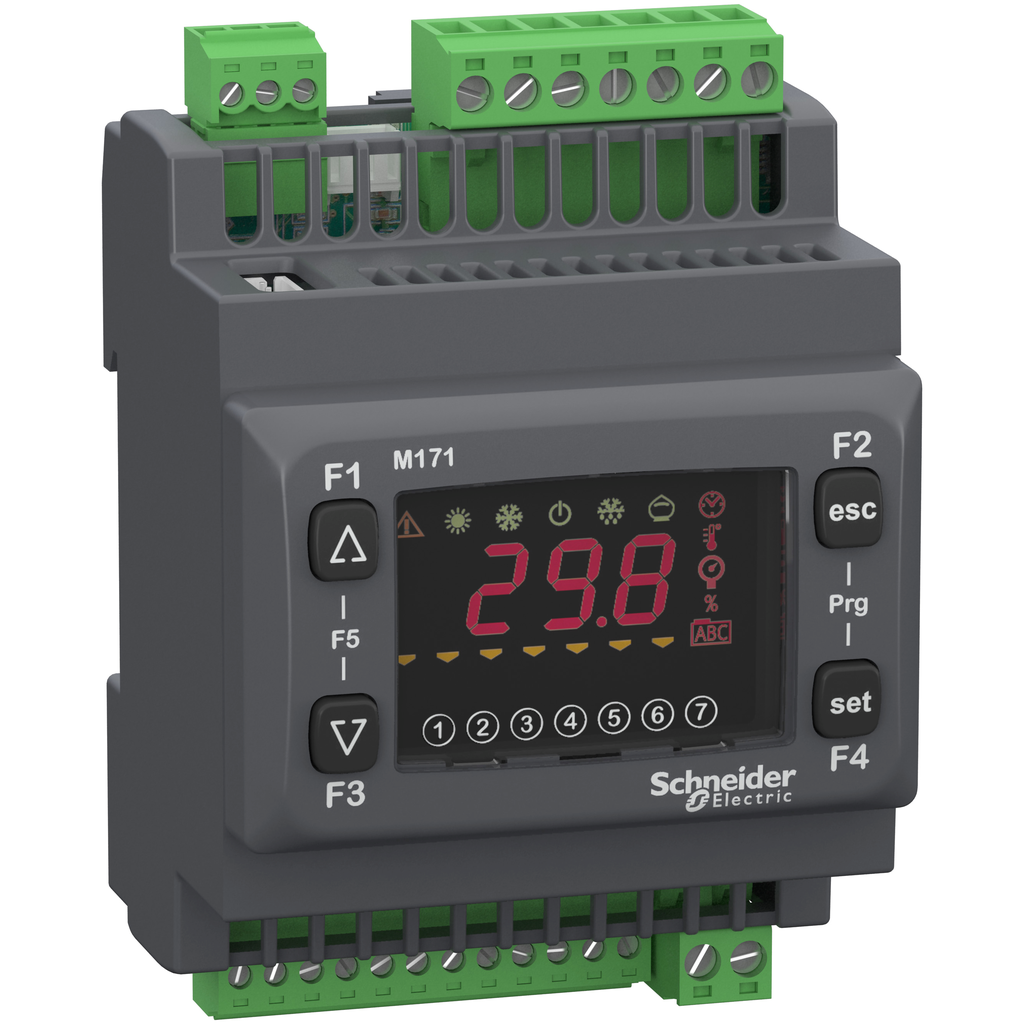

Controller, Modicon M171/M172/M173, optimized optimized, display 14 IO, Modbus, 100-240V AC
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 100V to 240V, ±10% AC. It is an IP20 rated product. Its dimensions are 70.2mm (width) x 61.7mm (depth) x 87mm (height). It weighs 0.19kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Italy |
|---|---|
| Width | 70.2 mm |
| Height | 87 mm |
| Weight | 0.19 kg |
| Analogue Output Number |
|
| Range Of Product | Modicon M171/M172 |
| Discrete Output Number |
|
| Variant | programmable |
| Product Or Component Type | controller |
| Number Of Inputs/Outputs | 14 |
| Discrete Output Current | 2 A relay |
| Analogue Input Number |
|
| Discrete Input Number | 2 |
| Product Specific Application | HVAC and pumping solution |
| Contacts Usage | volt-free contacts |
| Height | 87 mm |
| Mounting Support | DIN rail |
| Display Type | four 7-segment display units |
| Net Weight | 0.19 kg |
| Number Of Port |
|
| [Us] Rated Supply Voltage | 100...240 V +/- 10 % AC |
| Sensor Power Supply |
|
| Local Signalling |
|
| Realtime Clock | built-in clock at -20-55 °C |
| Width | 70.2 mm |
| Analogue Input Type |
|
| Overvoltage Category | II |
| Depth | 61.7 mm |
| Input/Output Number |
|
| Discrete Input Logic | sink or source (positive/negative) |
| Product Certifications |
|
| Standards | EN/IEC 60730 |
| Pollution Degree | 2 |
| Ambient Air Temperature For Operation | -20-55 °C UL 60730-1 |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 10-90 % non-condensing |
| Ip Degree Of Protection | IP20 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710004EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710004EN |
| Upgradeability | Upgradeable through digital modules and upgraded components |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- TM171 Optimized 14 I/O, Instruction Sheet - EAV96012_02 (pdf)
- Build HVAC machines with sustainability by design! - 998-21165013_GMA_Modicon+sustainability+flyer_QA1 (pdf)
- Spec Sheet
- Modicon M171/M172/M173_Logic controllers for HVAC and Pumping applications - Modicon+M171+M172+M173_Logic+controllers+for+HVAC+and+Pumping+applications_Catalog+January+2024 (pdf)
