TM171OD22R

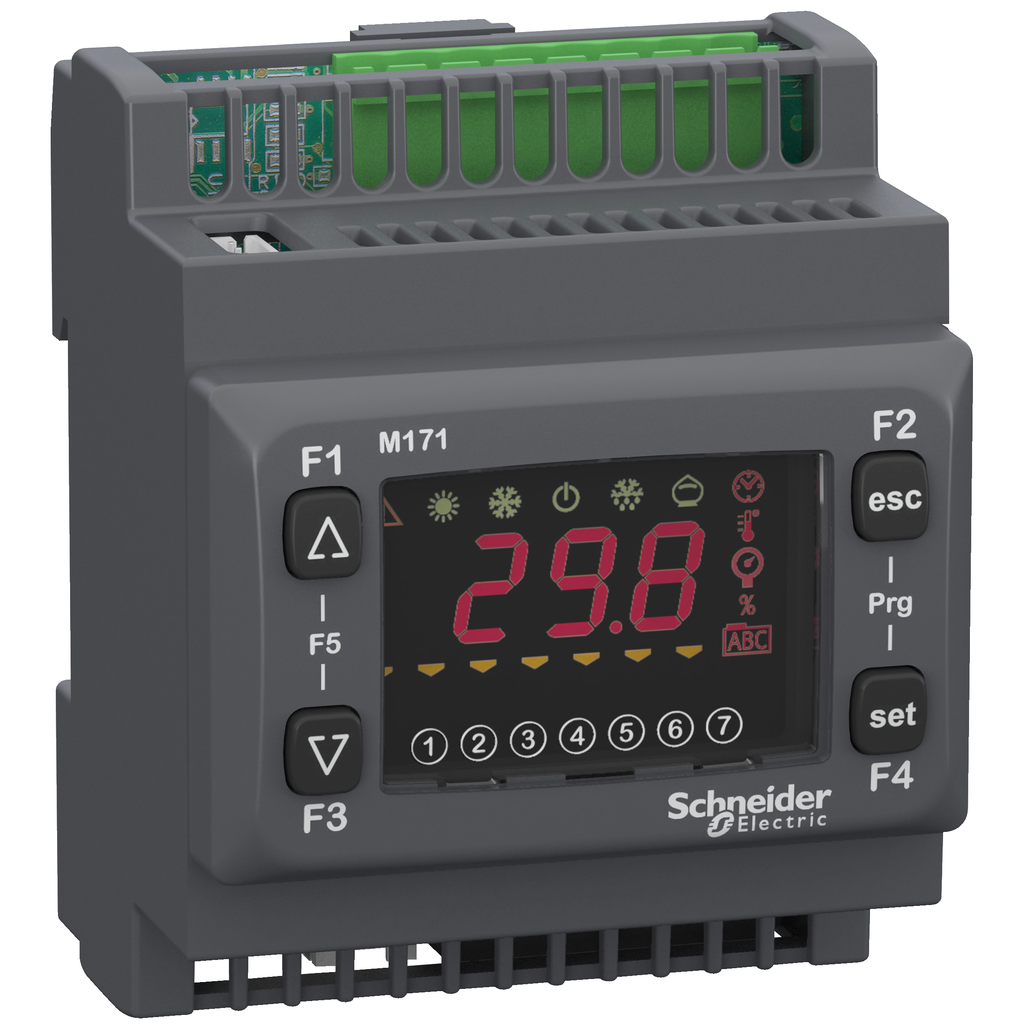

Modicon M171 Optimized Display 22 I/Os,

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1710004EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1710004EN
Upgradeability	Upgradeable through digital modules and upgraded components
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	Italy
Width	70.2 mm
Height	87 mm
Weight	0.19 kg
Analogue Output Number	3 voltage 0...10 V 2 PWM/PPM 20 kHz, 12 V, 35 mA
Range Of Product	Modicon M171/M172
Discrete Output Number	1 open collector 3 relay outputs SPST with same common 2 relay outputs SPST with independent common
Variant	programmable
Product Or Component Type	controller
Number Of Inputs/Outputs	22
Discrete Output Current	2 A relay
Analogue Input Number	2 configurable 3 analog input NTC
Discrete Input Number	6
Product Specific Application	HVAC and pumping solution
Contacts Usage	volt-free contacts
Height	87 mm
Mounting Support	DIN rail
Display Type	four 7-segment display units
Net Weight	0.19 kg
Number Of Port	1 LAN expansion bus
[Us] Rated Supply Voltage	24 V 12...24 V AC
Sensor Power Supply	12-12 V DC 85 mA 5-5 V DC 20 mA
Local Signalling	6 LEDs (red) 5 LEDs (green) for programmable 7 LEDs (amber)
Realtime Clock	built-in clock at -20-55 °C
Width	70.2 mm
Analogue Input Type	voltage 0...5 V ratiometric) voltage 0...10 V NTC temperature probe - 50...100 °C 0.1 °C current 0...20 mA/4...20 mA voltage 0...1 V
Overvoltage Category	II
Depth	61.6 mm
Input/Output Number	5 analog output 6 digital input 5 analog input 6 digital output
Discrete Input Logic	sink or source (positive/negative)
Product Certifications	cURus EAC CE CSA
Standards	EN/IEC 60730
Pollution Degree	2
Ambient Air Temperature For Operation	-20-55 °C UL 60730-1
Directives	2006/95/EC - low voltage directive 86/188/EEC - physical agents (noise) directive
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	10-90 % non-condensing
Ip Degree Of Protection	IP20
