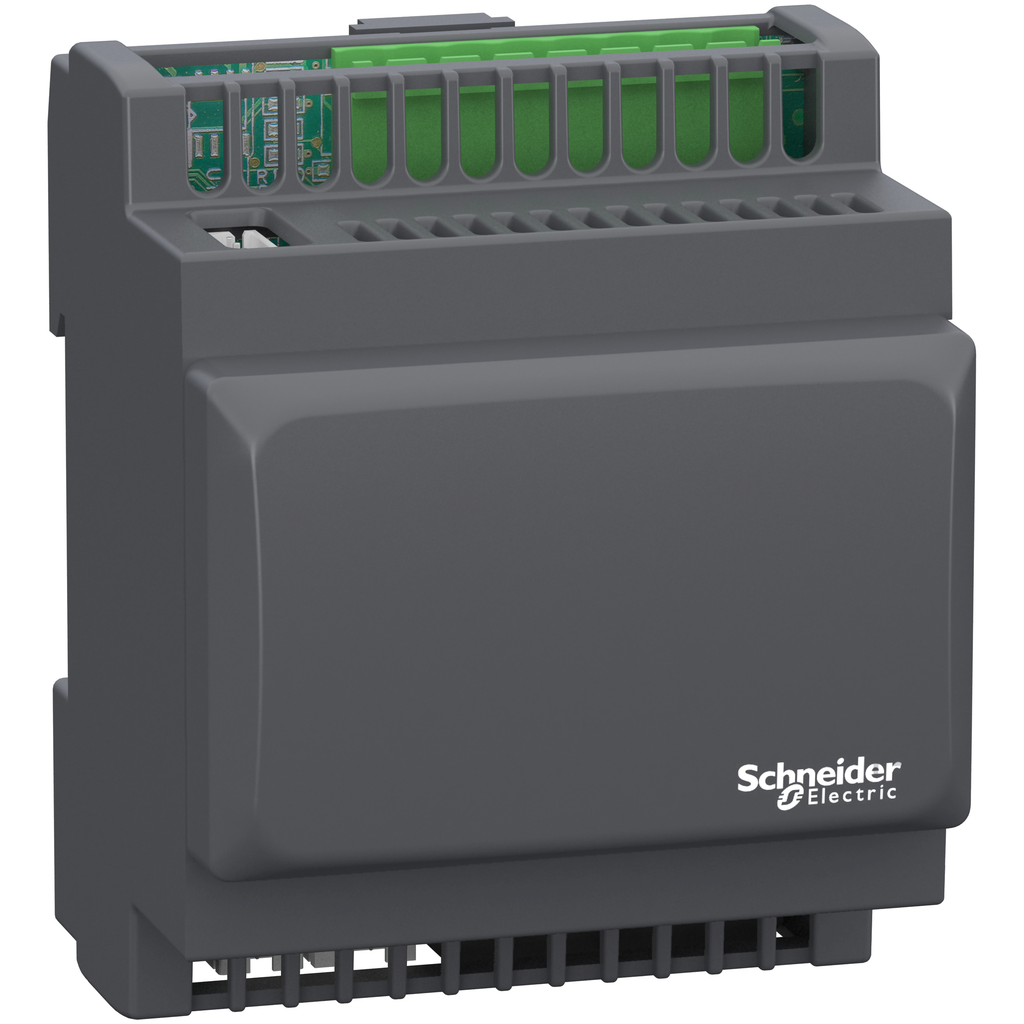

TM171EO22R
Modicon M171 Optimized expansion 22 I/Os
Specifications
| Country of Origin | Italy |
|---|---|
| Width | 70.2 mm |
| Height | 87 mm |
| Weight | 0.19 kg |
| Analogue Output Number |
|
| Range Of Product | Modicon M171/M172 |
| Discrete Output Number |
|
| Product Or Component Type | additional I/O module |
| Number Of Inputs/Outputs | 22 |
| Discrete Output Current | 2 A relay |
| Analogue Input Number |
|
| Discrete Input Number | 6 |
| Product Specific Application | HVAC and pumping solution |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710004EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710004EN |
| Upgradeability | Upgradeable through digital modules and upgraded components |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Contacts Usage | volt-free contacts |
| Height | 87 mm |
| Net Weight | 0.19 kg |
| Number Of Port | 1 LAN expansion bus |
| [Us] Rated Supply Voltage |
|
| Sensor Power Supply |
|
| Width | 70.2 mm |
| Analogue Input Type |
|
| Depth | 61.6 mm |
| Input/Output Number |
|
| Discrete Input Logic | sink or source (positive/negative) |
