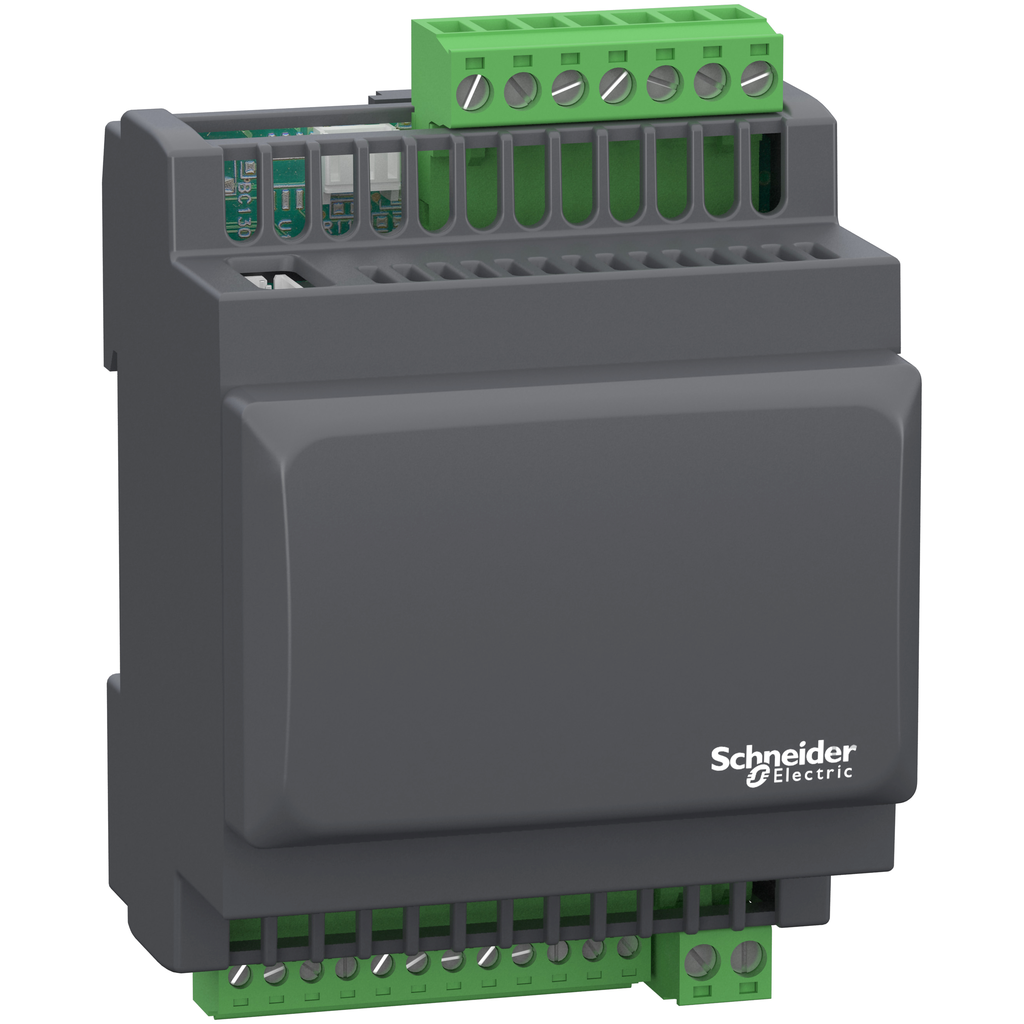

TM171EO14R - Modicon M171 Optimized expansion 14 I/Os, 100-240Vac

TM171EO14R

Modicon M171 Optimized expansion 14 I/Os, 100-240Vac

Add to Quote Catalogue

Specifications

Power Consumption In W	7 W
Contacts Usage	volt-free contacts
Height	87 mm
Mounting Support	DIN rail
Display Type	Without Display
Net Weight	0.385 kg
Number Of Port	1 LAN expansion bus
[Us] Rated Supply Voltage	100...240 V +/- 10 % AC/DC
Sensor Power Supply	12-12 V DC 85 mA
Local Signalling	for programmable 1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green)
Realtime Clock	built-in clock at -10-55 °C
Width	70.2 mm
Analogue Input Type	voltage 0...5 V ratiometric) voltage 0...10 V NTC temperature probe - 50...100 °C 0.1 °C Pt 1000 temperature probe - 50...400 °C 0.1 °C current 0...20 mA/4...20 mA voltage 0...1 V
Overvoltage Category	II
Depth	61.6 mm
Input/Output Number	5 analog output 4 digital output 5 analog input
Discrete Input Logic	sink or source (positive/negative)
Product Certifications	EAC cURus CSA CE
Standards	EN/IEC 60730
Pollution Degree	2
Ambient Air Temperature For Operation	-10-55 °C UL 60730-1
Directives	86/188/EEC - physical agents (noise) directive 2006/95/EC - low voltage directive
Ambient Air Temperature For Storage	-20-85 °C
Relative Humidity	10-90 % non-condensing
Ip Degree Of Protection	IP20
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1710004EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1710004EN
Upgradeability	Upgradeable through digital modules and upgraded components
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	Italy
Width	70.2 mm
Height	87 mm
Weight	0.385 kg
Analogue Output Number	2 voltage 0...10 V 2 PWM/PPM 20 kHz, 12 V, 35 mA 1 current 0...20 mA/4...20 mA
Range Of Product	Modicon M171/M172
Discrete Output Number	1 relay outputs SPDT with independent common 3 relay outputs SPST with same common
Product Or Component Type	additional I/O module
Number Of Inputs/Outputs	14
Discrete Output Current	2 A relay
Analogue Input Number	3 analog input NTC/Pt 1000 2 configurable
Discrete Input Number	2
Product Specific Application	HVAC and pumping solution
