Modicon 171, LAN-RS485 converter

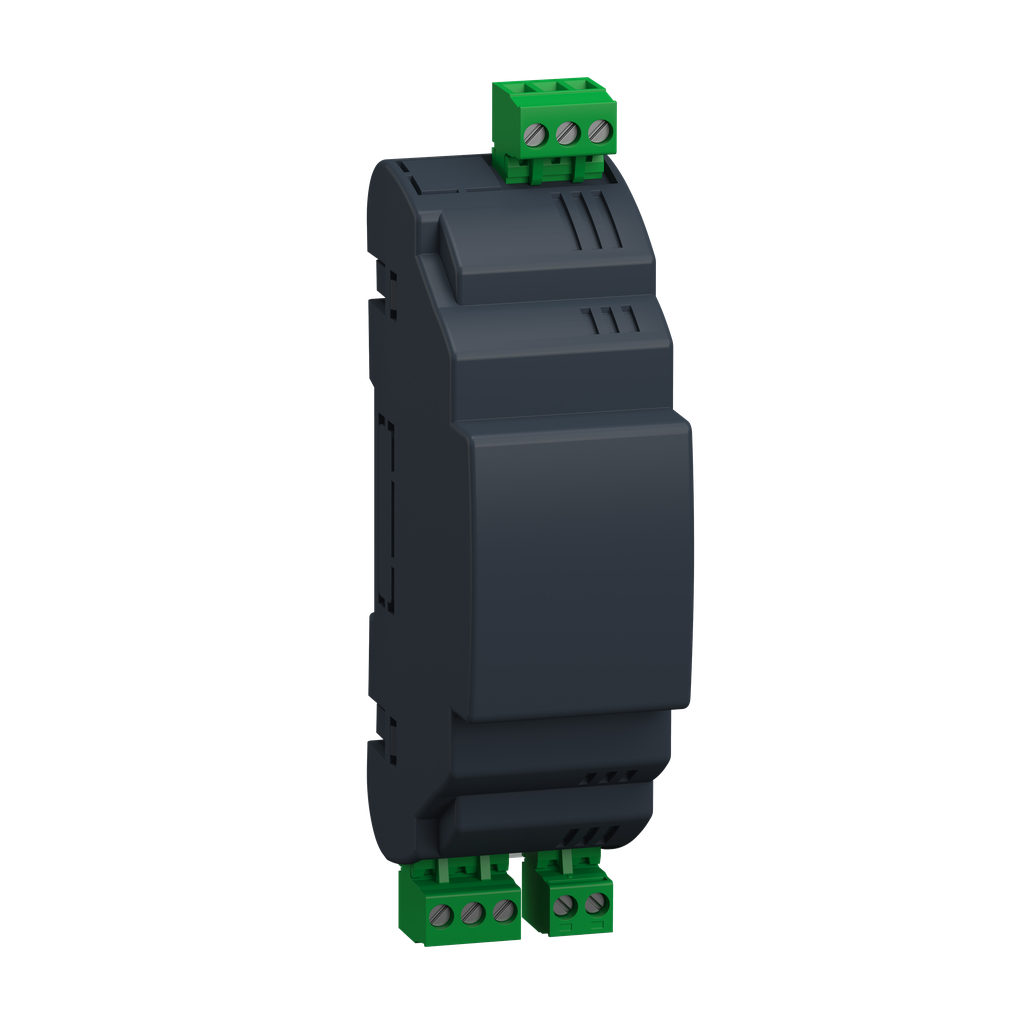

This accessory belongs to Modicon M171/M172 range of HVAC controllers. It is a LAN-RS485 converter. It has 3 screw terminals RS485 and 3 screw terminals LAN. This converter allows to connect Modbus devices through the LAN connector of the M171 Optimized controller. Its power consumption is 1 W, and rated supply voltage is 24V ACDC. It is supplied with removable terminal blocs for bus connections It weighs 0.170kg. It measures 35mm wide, 110mm high, 54.35mm deep. This connection accessory allows to connect Modbus devices through the LAN connector of the M171 Optimized controllers. This product is certified by CE, cURus (UL Recognized), CSA, EAC, RCM, RoHS China. This converter is dedicated to M171 Optimized controllers. It mounts on 35mm DIN rail. Modicon M171/M172 controllers is the best choice for complete automation solutions for HVAC machines. Modicon M171 and M172 logic controllers are designed for HVAC OEMs and help them to maximize profitability and energy efficiency.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -10-55 °C |
| Standards |
|
| Pollution Degree | 2 |
| Ambient Air Temperature For Storage | -30-85 °C |
| Relative Humidity | 5-95 % non-condensing |
| Ip Degree Of Protection | IP20 |
| Height | 110 mm |
| Electrical Connection |
|
| Power Consumption In W | 1 W |
| Net Weight | 0.6 kg |
| Product Compatibility | Modicon M171O |
| Width | 35 mm |
| Overvoltage Category | I |
| Depth | 60 mm |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Accessory / Separate Part Destination | base controller |
| Country of Origin | Italy |
| Width | 35 mm |
| Height | 110 mm |
| Weight | 0.6 kg |
| Range Of Product | Modicon M171/M172 |
| Accessory / Separate Part Category | adaptation accessory |
| Accessory / Separate Part Type | adaptor |
