Time delay relay, Harmony SE Relays, DPDT, 100ms to 9990hours, 7 time scales, 10 functions, socket compatible, 12A, 12...240V AC/DC

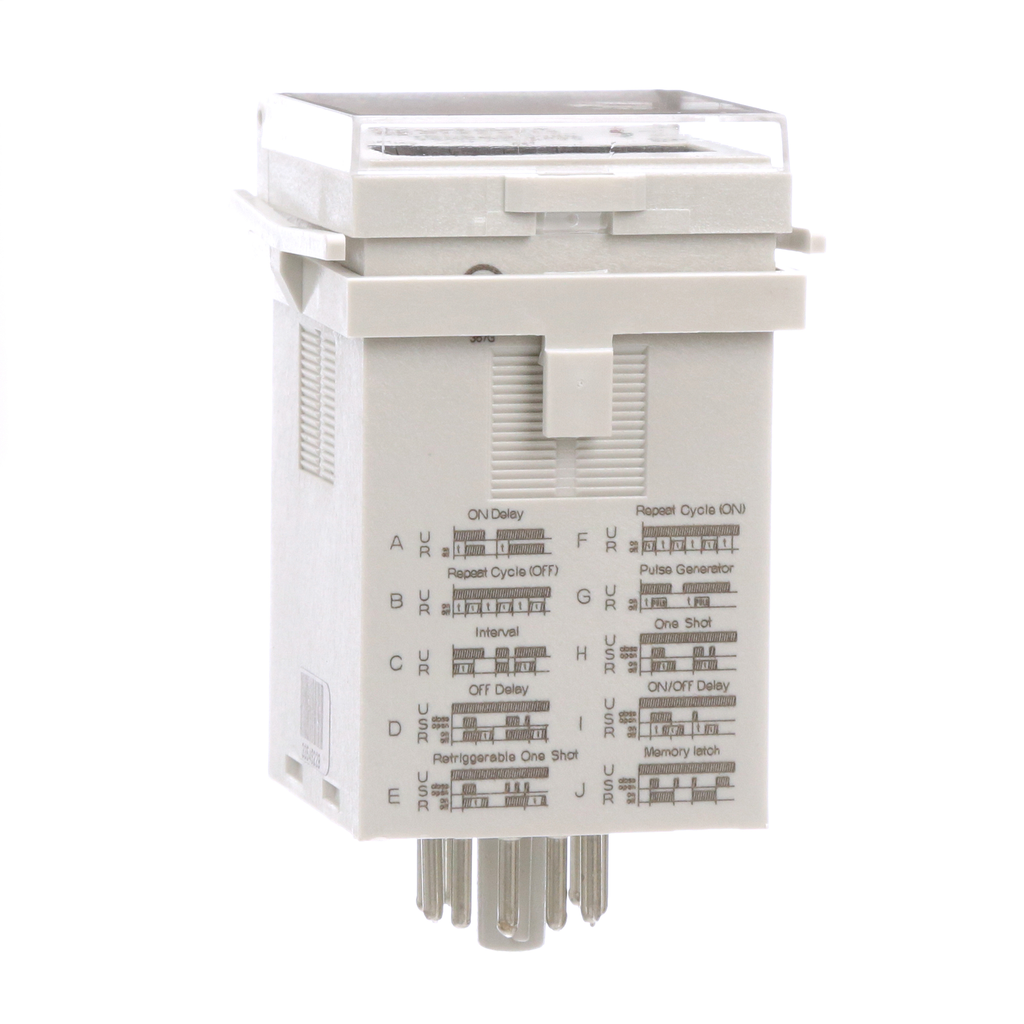

The SE Relays TDRPRO series, , time delay relay offers 10 different timing functions with ultra-wide timing range of 0.1 ms to 9990 hr with thumb-wheel adjustment dial wich helps to reduce mechanical deviation for supreme accuracy. Universal voltage input of 12 to 240 VAC/VDC with contact ratings of 12A 1/3hp at 120VAC and 1/2hp at 240 VAC makes this programmable, multifunction relay ideal in design flexibility. Contact configaration is performed by silver alloy contacts as DPDT. Socket compatible mounting option allows to set relay directly to panel and makes it ideal for tight spaces and allows easy installation. Dust cover retains settings and keeps dust out. 2 LED status indicators shows input indication in green LED and output indication in red LED blinking light as timing status relay or red steady on light as energized relay status. Environmentally friendly design is compliant with the European Restriction of Hazardous Substances directive (RoHS).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL |
|---|---|
| Ambient Air Temperature For Operation | -10-55 °C |
| Standards | IEC 61810-1 |
| Ip Degree Of Protection | IP40 IEC 60529 enclosure) |
| Ambient Air Temperature For Storage | -40-85 °C |
| Dielectric Strength | 2500 V between input and output |
| Height | 71.95 mm |
| Control Type | dial front |
| Time Delay Range |
|
| Voltage Range | 0.85...1.15 Un |
| Power Consumption In Va | 2.5 VA 12...240 V |
| Net Weight | 120 g |
| Reset Time | 150 ms maximum |
| Brake Release Time | 25 ms |
| [Ie] Rated Operational Current |
|
| Local Signalling |
|
| Mounting Support | socket |
| Nominal Output Current | 12 A |
| Mechanical Durability | 10000000 cycles |
| Width | 48 mm |
| Depth | 47.8 mm |
| Maximum Power Consumption In W | 2 W 12...240 V |
| Maximum Horse Power Rating |
|
| Electrical Durability | 100000 cycles |
| Operating Time | 25 ms |
| Repeat Accuracy | +/- 0.1 % of the measuring range |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Czechia |
| Width | 48 mm |
| Height | 71.95 mm |
| Weight | 120 g |
| Range Of Product | Legacy |
| Setting-Up | thumbwheel |
| Contacts Material | silver alloy contacts |
| Product Or Component Type | time delay relay |
| Switch Function | DPDT |
| Time Delay Type | multifunction |
| [Us] Rated Supply Voltage | 12...240 V AC/DC 50...60 Hz |
