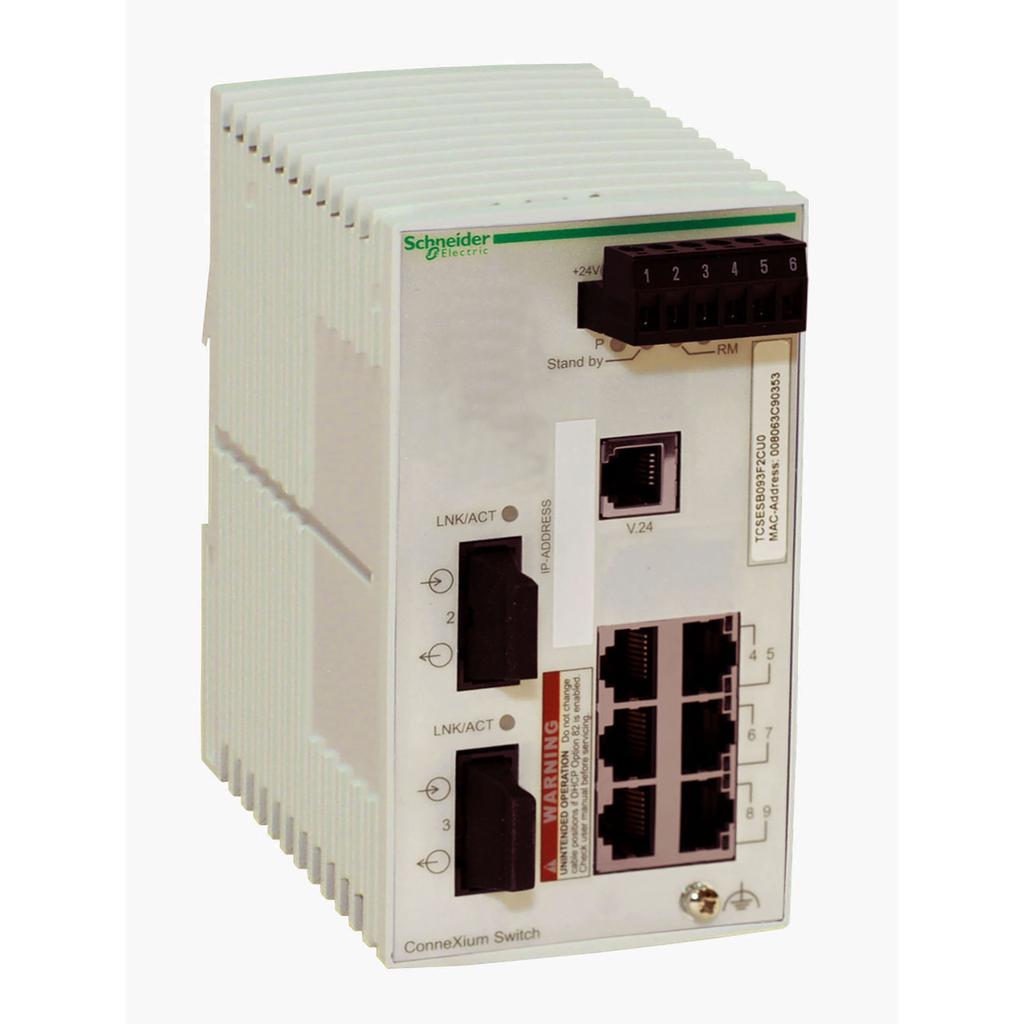

TCSESB083F2CU0 - network switch, Modicon Networking, basic managed, 6 ports for copper, 2 ports for fiber optic, multimode

TCSESB083F2CU0

network switch, Modicon Networking, basic managed, 6 ports for copper, 2 ports for fiber optic, multimode

Add to Quote Catalogue

Specifications

Maximum Number Of Switches In Cascade	unlimited
Range Of Product	ConneXium
Port Ethernet	10/100BASE-TX - 6 copper cable 100BASE-FX - 2 fiber optic
Product Or Component Type	Ethernet TCP/IP managed switch
Communication Port Protocol	Ethernet TCP/IP HTTP HTTPS SNMP RS232 LLDP SNTP MRP (Media Redundancy Protocol)
Cybersecurity	role-based access control
Concept	Transparent Ready
Warranty	18 months
Maximum Cable Distance Between Devices	100 m copper cable
[Us] Rated Supply Voltage	12...24 V
Height	131 mm
Alarm Function	power supply fault data link status switch fault redundancy ring fault incorrect configuration temperature threshold
Integrated Connection Type	shielded RJ45 copper cable duplex SC fiber optic
Transmission Support Medium	twisted shielded pairs cable CAT 5E fiber optic multimode optical fiber copper cable
Mounting Support	35 mm symmetrical DIN rail
Power Consumption In W	8 W
Communication Service	TFTP Quality of Service (QoS) port monitoring port mirroring
Marking	CE UL RCM
Alarm Output	1 voltfree contact 1 A
Redundancy	HiPER ring RSTP
Net Weight	0.41 kg
Attenuation	0-11 dB 62.2/125 µm) 0-8 dB 50/125 µm)
Electrical Connection	removable connector 6 ways power supply
Maximum Number Of Switches In A Ring	50
Function Available	system information
Ethernet Service	configuration via web server multicast filtering data stream control IGMP Snooping SNMP-Traps and SYSLOG
Ethernet Cabling System	TF switches
Supply Voltage Limits	9.6-32 V DC SELV
Local Signalling	for P1 P2 power supplies 1 dual colour LED (green/yellow) for fault 1 LED (red) for ring manager 1 dual colour LED (green/yellow) for stand-by 1 LED (green) for channel diagnostic 1 dual colour LED (green/yellow) Device status
Optic Fiber Length	4 km 62.5/125 µm 5 km 50/125 µm
Diagnostics Run Time	signal contact self test
Width	74 mm
Depth	111 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP100304EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1003004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	0-60 °C
Standards	UL 508 EN/IEC 61131
Product Certifications	CE UL RCM
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Relative Humidity	10-95 % non-condensing
Ip Degree Of Protection	IP20
