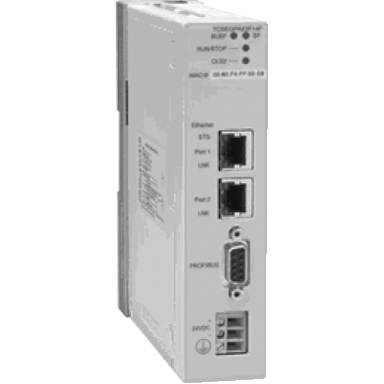

Profibus DP V1 remote master - for Premium/Quantum/M340/M580 PLC
This product is part of the Profibus DP range, an offer of remote master modules. The Profibus Remote Master (PRM) module is connected to the Ethernet Modbus TCP/IP network via its integrated 2-port switch, as close as possible to the process and the instrumentation. It has Profibus 2 twisted shielded pairs cable and Modbus TCP category 5 shielded twisted pair (STP) transmission support medium. It is equipped with 2 Ethernet TCP/IP-RJ45 for Modbus TCP, Profibus DP SUB-D 9 for Profibus DP V1 connections. Communication services are check slave configuration (on power up) class 1 master, manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, no master/master dialogue class 2 master etc. It weighs 0.62kg. This product can be used to connect Modicon Quantum, Premium, M580, and M340 Programmable Logic Controllers (PLC) to Profibus DP V1 via the I/O scanner function. The kit includes CD including the communication DTM and CD including the master DTM for configuration inside UNITY.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Ambient Air Temperature For Storage | -45-85 °C |
| Relative Humidity | 10-95 % without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mode Of Transmission | NRZ |
| Transmission Support Medium |
|
| Number Of Inputs | 2 |
| Current Consumption | 200 mA 24 V DC external |
| Transmission Rate |
|
| Net Weight | 0.62 kg |
| Communication Service |
|
| Number Of Server Device(S) | 126 |
| Integrated Connection Type |
|
| Physical Interface | RS485 |
| Method Of Access |
|
| Module Format | standard |
| Number Of Outputs | 2 |
| Country of Origin | Canada |
| Weight | 0.62 kg |
| Range Of Product | Profibus DP |
| Product Or Component Type | Profibus DP V1 remote master |
| Structure Type | industrial bus |
| Communication Gateway | Ethernet Modbus TCP to Profibus DP V1 gateway |
| Product Compatibility |
|
| Kit Composition |
|
