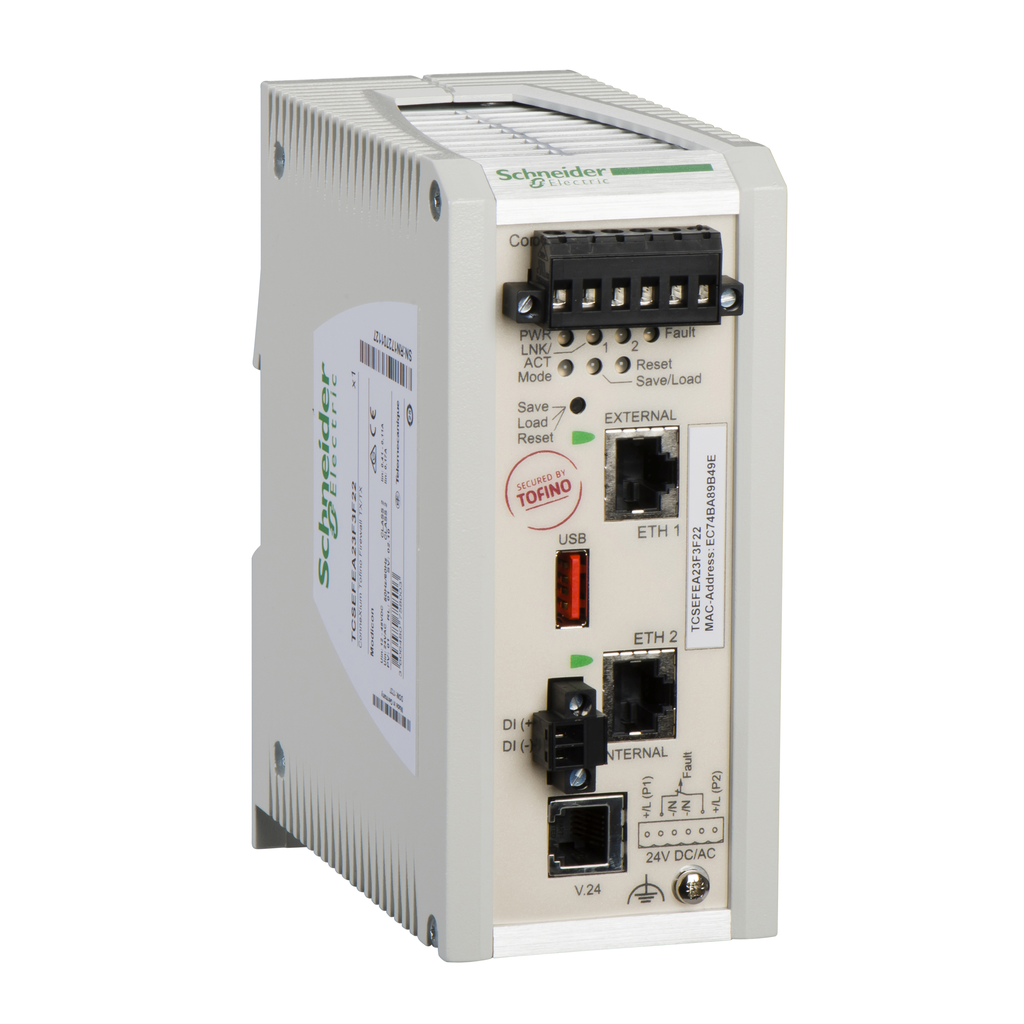

TCSEFEA23F3F22 - firewall, Modicon Networking, tofino firewall, 2 ports for copper

TCSEFEA23F3F22

firewall, Modicon Networking, tofino firewall, 2 ports for copper

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-40-70 °C
Standards	UL 508 EN/IEC 61131 EN/IEC 60950
Product Certifications	CE UL RCM DNV
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Relative Humidity	10-95 % non-condensing
Ip Degree Of Protection	IP20
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Cable Distance Between Devices	100 m copper cable
[Us] Rated Supply Voltage	12...48 V
Height	145 mm
Alarm Function	power supply fault data link status switch fault
Integrated Connection Type	shielded RJ45 copper cable
Transmission Support Medium	twisted shielded pairs cable CAT 5E copper cable
Mounting Support	35 mm symmetrical DIN rail
Power Consumption In W	5 W
Marking	CE
Alarm Output	1 voltfree contact 1 A
Redundancy	redundant power supplies
Net Weight	0.66 kg
Electrical Connection	removable connector 6 ways power supply
Ethernet Service	multicast filtering
Ethernet Cabling System	TF switches
Supply Voltage Limits	9.6-60 V DC SELV 18-30 V AC SELV
Local Signalling	for P1 P2 power supplies 2 LEDs (green) for fault 1 LED (red) for device status 1 dual colour LED (green/yellow) for memory key status 1 dual colour LED (green/yellow) for internal port status 1 dual colour LED (green/yellow) for serial port status 1 dual colour LED (green/yellow)
Width	60 mm
Depth	125 mm
Country of Origin	United States
Width	60 mm
Height	145 mm
Weight	0.66 kg
Range Of Product	ConneXium
Port Ethernet	10/100BASE-TX - 2 copper cable
Product Or Component Type	Ethernet TCP/IP firewall
Communication Port Protocol	Ethernet TCP/IP SSH HTTP HTTPS SNMP SFTP SCP LLDP RS232
User Interface	built-in firewall
Encryption Protocol	MAC addresses filtering
Cybersecurity	IPSec DoS prevention
Concept	Transparent Ready
