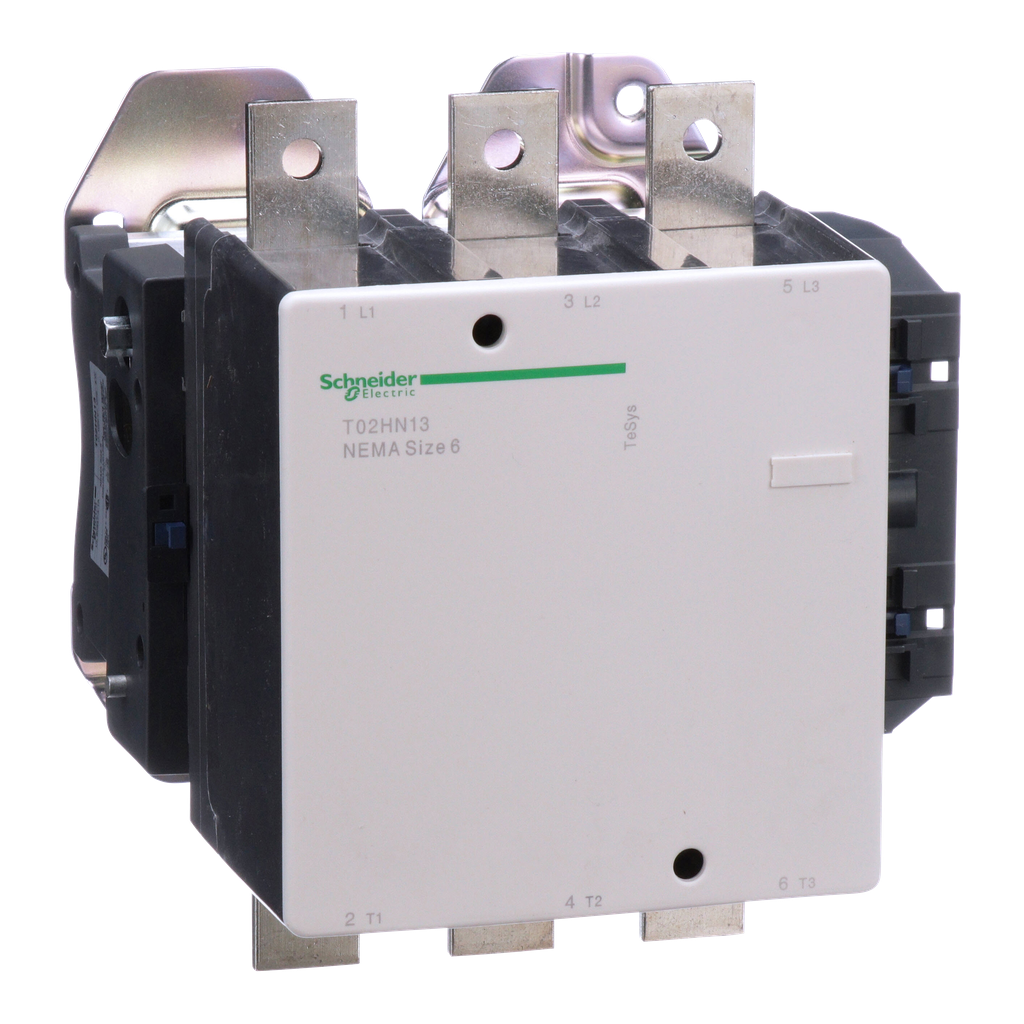

NEMA Contactor, TeSys N, nonreversing, Size 6, 540A, 400HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 6 nonreversing contactor mounts on 35mm DIN rail and has a 540 amperage continuous current rating. The contactor has ratings of 150 HP at 200, 200 HP at 230 VAC and 400 HP at 460 and 575 VAC poly phase. To maximize convenience and to reduce inventory the TeSys N contactor uses the common TeSys accessories. Contactor has 1 normally open auxiliary contact. This contactor is not in an enclosure. This contactor is 8.90 inches tall, 9.37 inches wide and 9.17 inches deep. It weighs 25.83 lbs. The screw clamp terminals will accept control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Uc] Control Circuit Voltage | 120 V AC |
|---|---|
| Height | 9.37 in |
| Auxiliary Contact Composition | 1 NO |
| Poles Description | 3P |
| Line Rated Current | 540 A |
| Electrical Connection | lugs ordered separately |
| Control Circuit | common control circuit |
| Width | 8.90 in |
| Depth | 9.17 in |
| Phase | 3 phase |
| Net Weight | 25.83 lb(US) |
| [Ue] Rated Operational Voltage | 600 V AC |
| Country of Origin | Czechia |
| Width | 8.90 in |
| Height | 9.37 in |
| Weight | 25.83 lbs |
| Range Of Product | TeSys N |
| Nema Size | 6 |
| Contactor Application | non-reversing |
| Product Or Component Type | contactor |
| Maximum Horse Power Rating |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | not rated (open device) |
