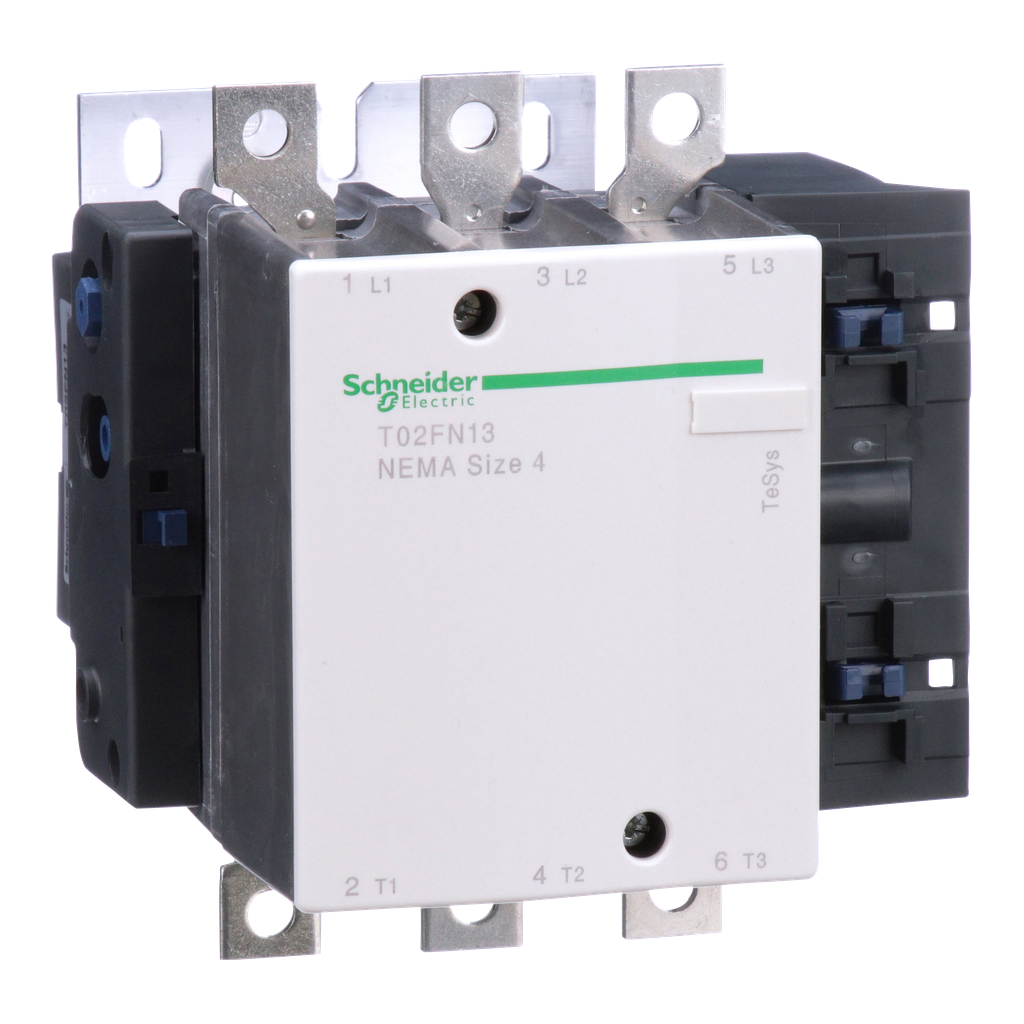

T02FN13G7 - NEMA Contactor, TeSys N, nonreversing, Size 4, 135A, 100HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open

T02FN13G7

NEMA Contactor, TeSys N, nonreversing, Size 4, 135A, 100HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 4 nonreversing contactor mounts on 35mm DIN rail and has a 135 amperage continuous current rating. The contactor has ratings of 40 HP at 200, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC poly phase. To maximize convenience and to reduce inventory the TeSys N contactor uses the common TeSys accessories. Contactor has 1 normally open auxiliary contact. This contactor is not in an enclosure. This contactor is 6.69 inches tall, 6.44 inches wide and 6.68 inches deep. It weighs 9.23 lbs. The screw clamp terminals will accept control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	United States
Width	6.44 in
Height	6.69 in
Weight	9.40 lbs
Range Of Product	TeSys N
Nema Size	4
Contactor Application	non-reversing
Product Or Component Type	contactor
Maximum Horse Power Rating	40 hp 200 V AC 50 hp 230 V AC 100 hp 460 V AC 100 hp 575 V AC
[Uc] Control Circuit Voltage	120 V AC
Height	6.69 in
Auxiliary Contact Composition	1 NO
Electrical Connection	lugs ordered separately
Phase	3 phase
Net Weight	9.40 lb(US)
Poles Description	3P
Line Rated Current	135 A
Control Circuit	common control circuit
Width	6.44 in
Depth	6.68 in
[Ue] Rated Operational Voltage	600 V AC
Product Certifications	UL Listed CSA
Nema Degree Of Protection	not rated (open device)
Rohs Exemption Information	Yes
Mercury Free	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
