SYPM4KP

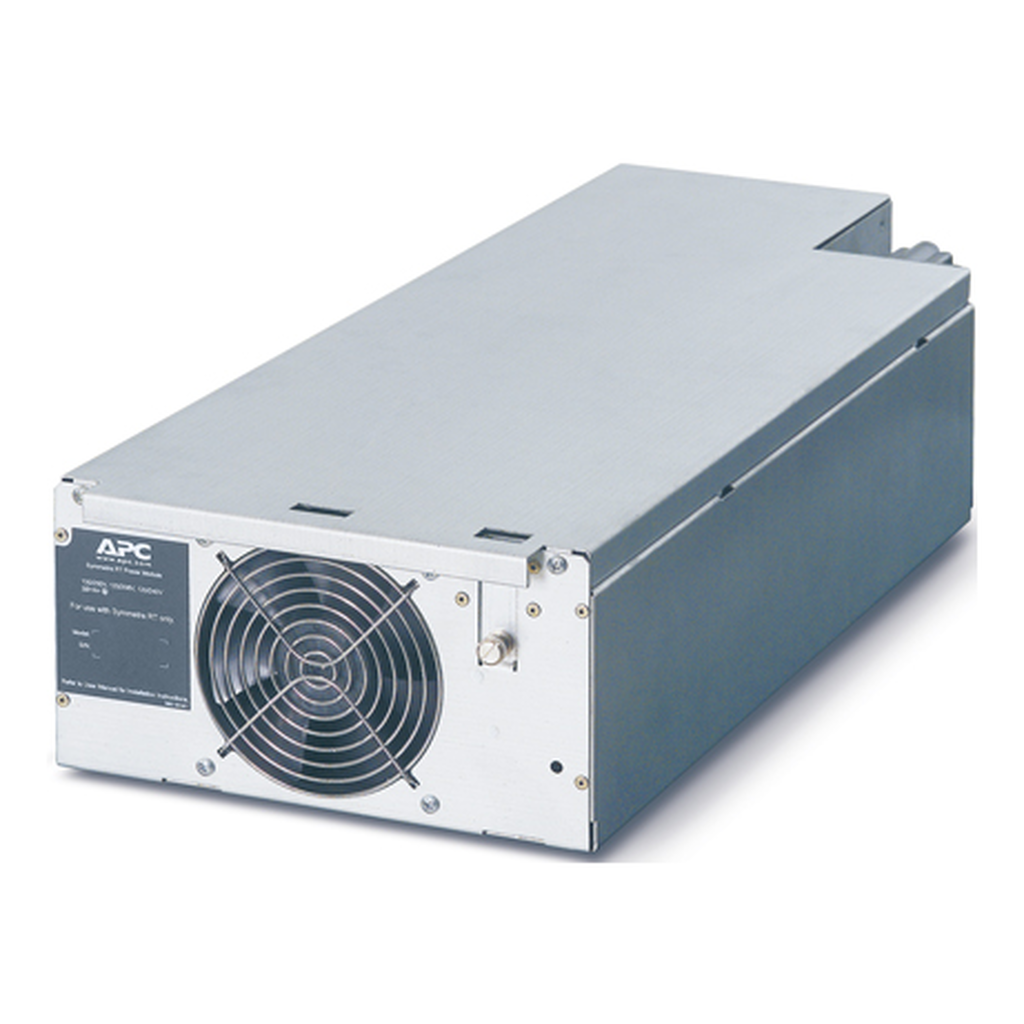

APC Symmetra LX 4kVA Power Module, 200/208V
Specifications
| Product Certifications | CSA |
|---|---|
| Standards |
|
| Warranty | 2 years repair or replace |
| Rohs Exemption Information | Yes |
| Take-Back | Take-back program available |
| Optimized Energy Efficiency | Energy efficient product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 15 cm |
| Usb Compatible | No |
| Net Weight | 15 kg |
| Mounting Mode | not rack-mountable |
| Color | Silver |
| Width | 25 cm |
| Depth | 56.5 cm |
| Cos Phi | 0.98 |
| Input Frequency | 45...65 Hz auto-sensing |
| Efficiency At Full Load | 155...276 V |
| Harmonic Distortion | less than 5 % at full load |
| Crest Factor | up to 5 : 1 |
| Additional Information | Configurable for 120/208 or 120/240 output voltage |
| Storage Relative Humidity | 0-95 % |
| Ambient Air Temperature For Operation | 0-40 °C |
| Storage Altitude | 0-15000 ft |
| Ambient Air Temperature For Storage | -15-45 °C |
| Relative Humidity | 0-95 % |
| Acoustic Level | 62 dBA |
| Operating Altitude | 0...10000 ft |
| Lead Time | Usually in Stock |
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
| Country of Origin | Philippines |
| Width | 25 cm |
| Height | 15 cm |
| Weight | 15 kg |
| Other Input Voltages | 240 V |
| Number Of Cables | 1 |
| Range Of Product | Symmetra Power Module |
| Product Or Component Type | power module |
| Rated Power In Va | 4000 VA |
| Main Input Voltage |
|
| Number Of Rack Unit | 0U |
| Kw Rating | 3200 W |
| Provided Equipment | Installation guide |
| Other Output Voltages | 240 V |
