SURTD5000RMXLP3U

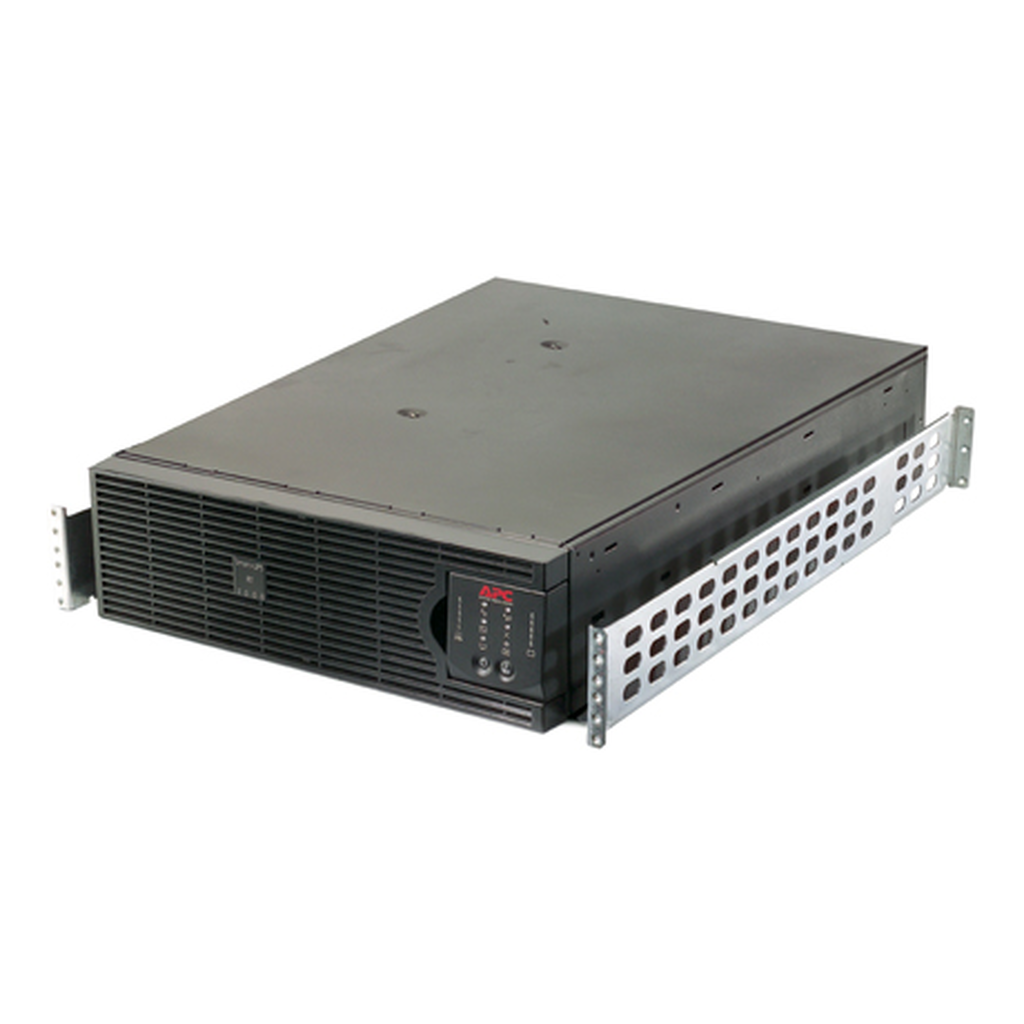

APC Smart-UPS RT 5kVA, 208V, Rack, 3U, 4x 5-20R, 1x L6-30R, 1x L14-30R NEMA outlets, with 208/240 (Split-Phase) to 120
Specifications
| Product Certifications | CSA |
|---|---|
| Warranty | 2 years repair or replace |
| Alarm | alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Free Slots | 0 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1512017_EN |
| Sustainable Offer Status | Green Premium product |
| Take-Back | Take-back program available |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Optimized Energy Efficiency | Energy efficient product |
| Circularity Profile | ENVEOLI1512017_EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 13 cm |
| Usb Compatible | No |
| Net Weight | 58.06 kg |
| Mounting Location | front |
| Mounting Mode | rack-mounted |
| Color | Black |
| Width | 43.2 cm |
| Depth | 66 cm |
| Input Frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Efficiency At Full Load |
|
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Harmonic Distortion | Less than 2% |
| Additional Information | Configurable for 208 or 240 nominal output voltage |
| Crest Factor | 3 : 1 |
| Efficiency At Full Load | 90 % full load) |
| Battery Life | 3-5 year(s) |
| Battery Type | Lead-Acid battery |
| Storage Relative Humidity | 0-95 % non-condensing |
| Ambient Air Temperature For Operation | 0-40 °C |
| Storage Altitude | 0-50000 ft |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Storage | -15-45 °C |
| Online Thermal Dissipation | 1589 Btu/h |
| Relative Humidity | 0-95 % non-condensing |
| Acoustic Level | 55 dBA |
| Operating Altitude | 0...10000 ft |
| Lead Time | Usually in Stock |
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
| Country of Origin | Philippines |
| Length | 10 ft |
| Width | 43.2 cm |
| Height | 13 cm |
| Weight | 58.06 kg |
| Other Input Voltages | 240 V |
| Number Of Cables | 1 |
| Range Of Product | Smart-UPS On-Line |
| Cable Length | 10 ft |
| Product Or Component Type | uninterruptible power supply (UPS) |
| Rated Power In Va | 5000 VA |
| Provided Equipment |
|
| Main Input Voltage | 208 V |
| Number Of Rack Unit | 3U |
| Kw Rating | 4000 W |
| Other Output Voltages | 240 V |
