SUA5000R5TXFMR

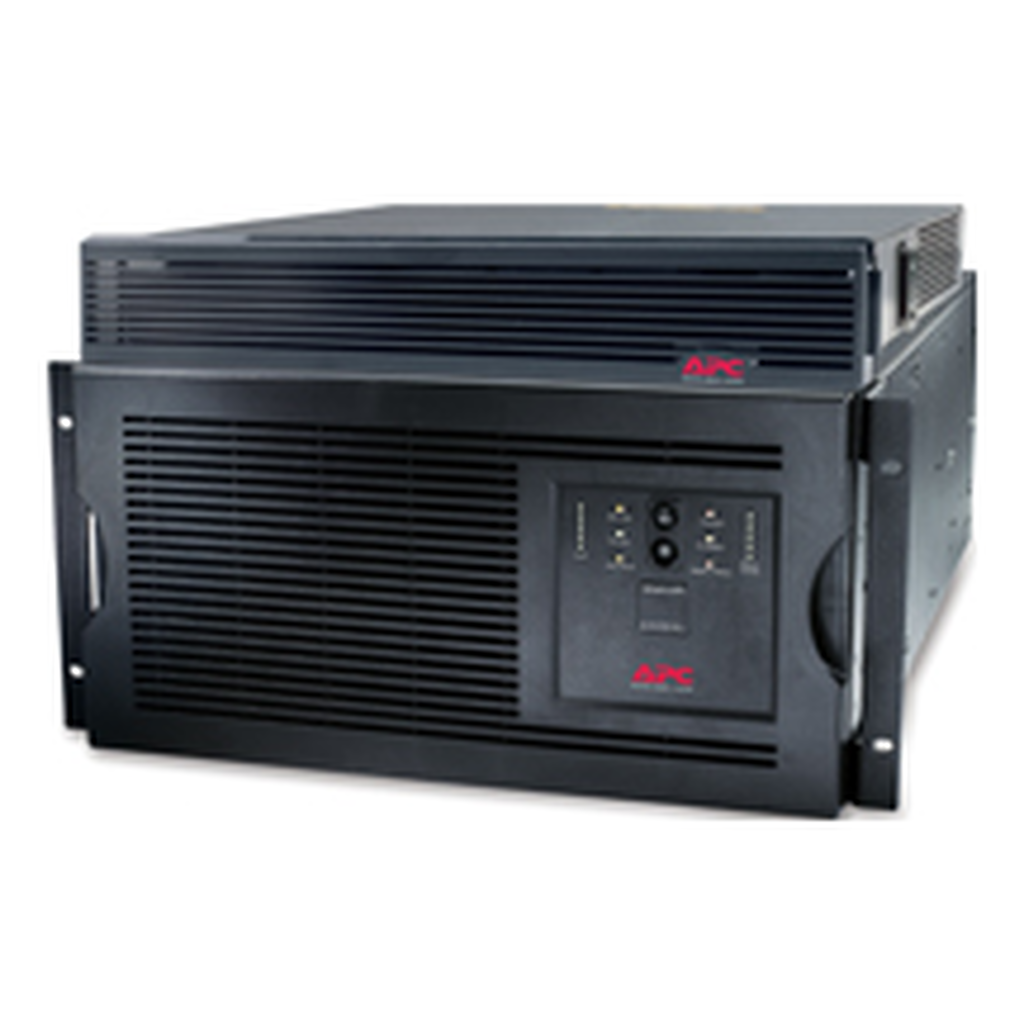

APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output
Specifications
| Product Certifications | CSA |
|---|---|
| Warranty | 2 years repair or replace, optional on-site warranties available, optional extended warranties available |
| Alarm | alarm when on battery : distinctive low battery alarm : configurable delays |
| Free Slots | 0 |
| Control Panel | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1612029_EN |
| Sustainable Offer Status | Green Premium product |
| Take-Back | Take-back program available |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Optimized Energy Efficiency | Energy efficient product |
| Circularity Profile | ENVEOLI1612029_EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 31.1 cm |
| Usb Compatible | No |
| Net Weight | 145.45 kg |
| Mounting Location | front |
| Mounting Mode | rack-mounted |
| Color | Black |
| Width | 48.3 cm |
| Depth | 63.5 cm |
| Input Frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Efficiency At Full Load |
|
| Harmonic Distortion | less than 5 % at full load |
| Efficiency At Full Load | 95 % full load) |
| Storage Relative Humidity | 0-95 % |
| Ambient Air Temperature For Operation | 0-40 °C |
| Storage Altitude | 0-50000 ft |
| Ambient Air Temperature For Storage | -15-45 °C |
| Online Thermal Dissipation | 1708 Btu/h |
| Relative Humidity | 0-95 % |
| Acoustic Level | 53 dBA |
| Operating Altitude | 0...10000 ft |
| Lead Time | Usually Ships within 3 Weeks |
| Country of Origin | India |
| Length | 8 ft |
| Width | 48.3 cm |
| Height | 31.1 cm |
| Weight | 145.45 kg |
| Number Of Cables | 1 |
| Range Of Product | Smart-UPS |
| Cable Length | 8 ft |
| Product Or Component Type | uninterruptible power supply (UPS) |
| Rated Power In Va | 5000 VA |
| Provided Equipment |
|
| Main Input Voltage | 208 V |
| Battery Type | Lead-Acid battery |
| Number Of Rack Unit | 7U |
| Kw Rating | 4000 W |
