SU3040D400CB - All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass

SU3040D400CB

All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass

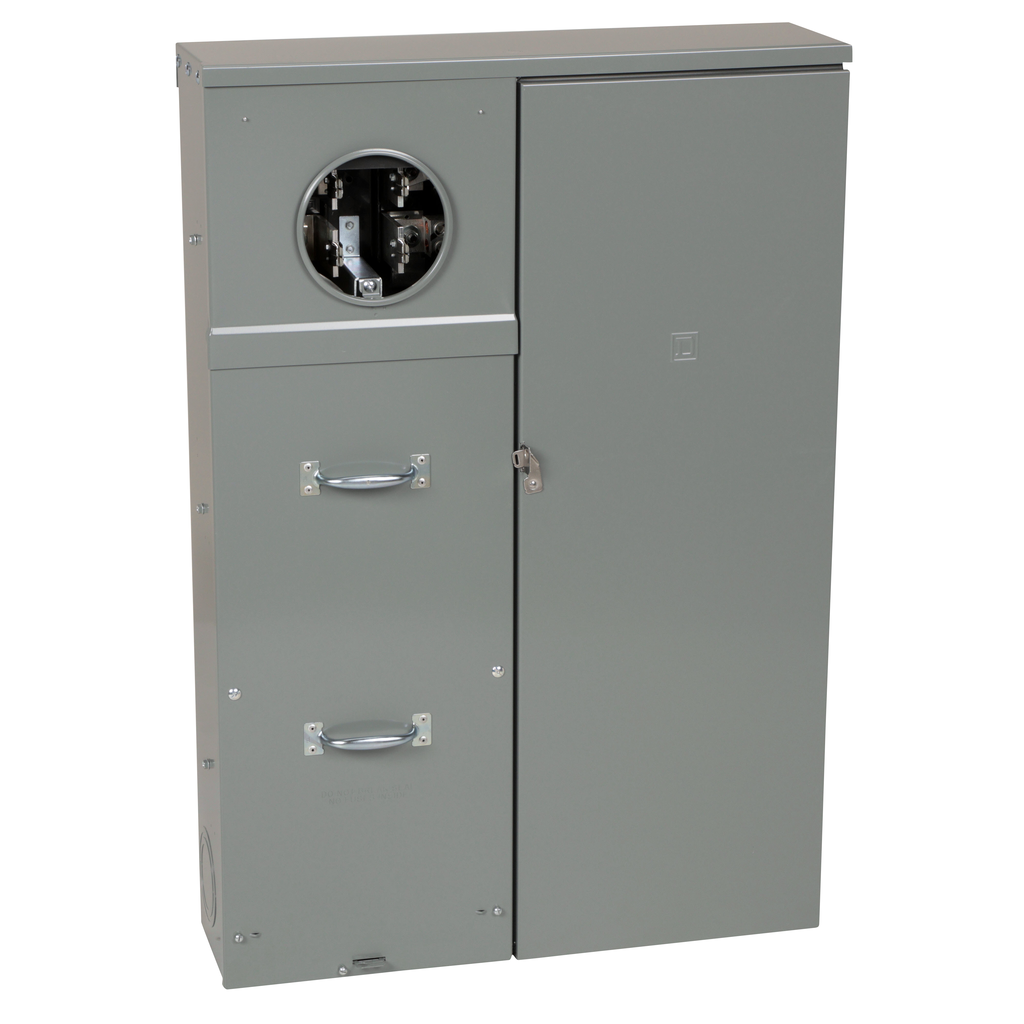

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with a Class 320 Manual bypass. The socket has 4 jaws. This unit can be feed from an underground service. The service disconnect has a QDL22200 with a maximum rating of 200 A. Device has a 25 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 41.25 inches tall, 28.25 inches wide and 7.50 inches deep. The line side has two studs. The service ground lug will accept 4 AWG to 250 kcmil copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL Listed
Nema Degree Of Protection	NEMA 3R
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	41.25 in
Tightening Torque	terminal screw 250 lb.in, AWG 4...250 kcmil, aluminium/copper service ground 50 lb.in, AWG 1/0, aluminium/copper service ground 45 lb.in, AWG 6...AWG 1, aluminium/copper service ground 40 lb.in, AWG 8, aluminium/copper branch lugs 50 lb.in, AWG 3...AWG 2/0, aluminium/copper branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 25 lb.in, AWG 8, aluminium/copper branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper Cover 10 lb.in
Branch Circuit Breaker Rated Current	200 A
Bypass Type	class 320 manual bypass
Service Feed Location	UG
Bus Rated Current	200.0 A
Electrical Connection	lugs, service ground studs, line side
Number Of Circuits	40
Number Of Spaces	30
Short-Circuit Current	25 kA
Number Of Tandem Circuit Breakers	10
Service Disconnect Rated Current	200 A
Line Rated Current	400 A
Width	28.25 in
Awg Gauge	AWG 4...250 kcmil (aluminium) service ground AWG 4...250 kcmil (copper) service ground
Depth	7.50 in
Device Composition	service disconnect (factory installed)
Device Mounting	surface semi flush with field installed flange kit
Country of Origin	Mexico
Width	28.25 in
Height	41.25 in
Range Of Product	Homeline
Product Or Component Type	All-In-One
Hub Type	A-L
Meter Socket Type	ringed

All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass
