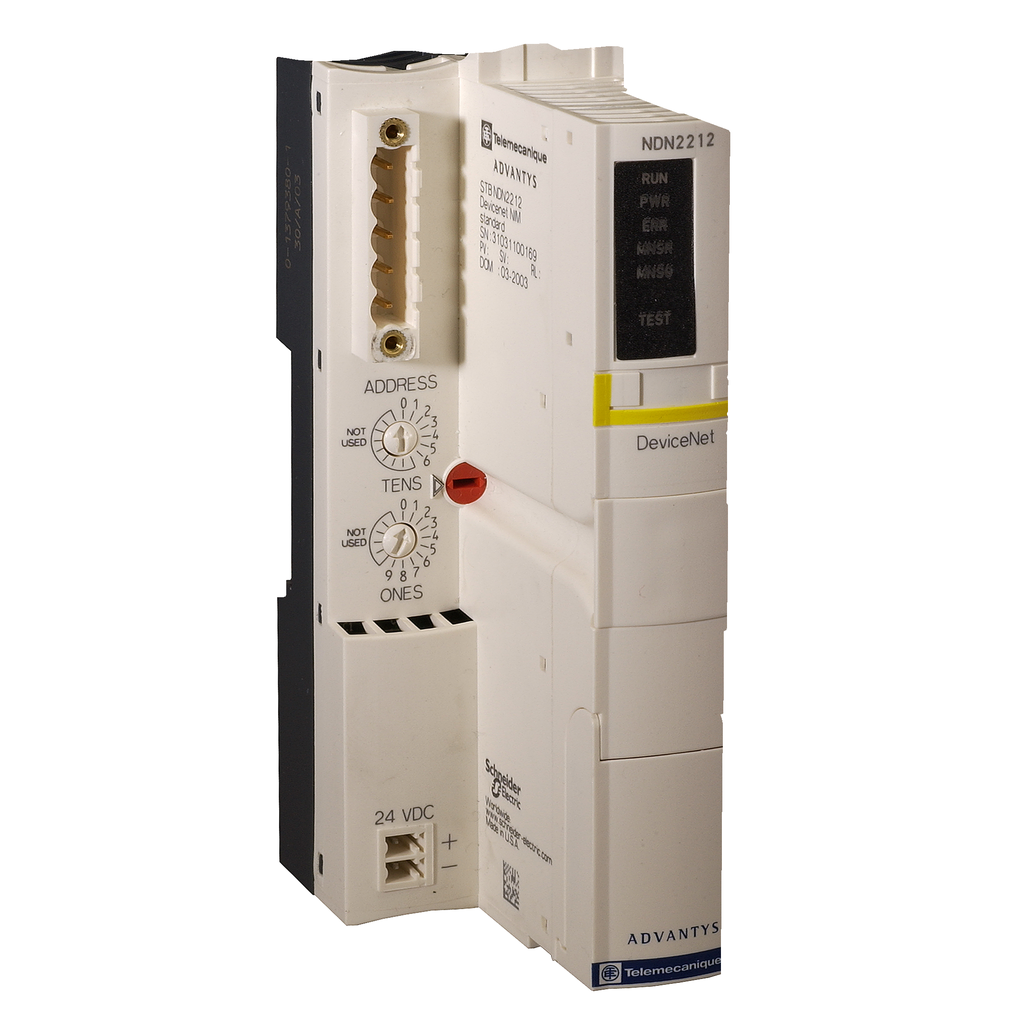

STBNDN2212 - standard Network Interface Module STB - DeviceNet - 125..500 kbit/s

STBNDN2212

standard Network Interface Module STB - DeviceNet - 125..500 kbit/s

Add to Quote Catalogue

Specifications

Product Certifications	FM Class 1 Division 2 CSA UL ATEX Cat 3G C-tick
Ambient Air Temperature For Operation	0-60 °C without derating) -25-70 °C with derating factor)
Electromagnetic Compatibility	immunity to electromagnetic interference IEC 61131-2
Shock Resistance	30 gn 11 ms IEC 88 reference 2-27
Vibration Resistance	3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail +/-0.35 mm 10-58 Hz
Ip Degree Of Protection	IP20 conforming to IEC 61131-2 class 1
Pollution Degree	2 IEC 60664-1
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	95-95 % 60-60 °C without condensation
Operating Altitude	<= 6561.68 ft (2000 m)
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP080803EN
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Height	40 mm
Number Of Addressable I/O Module	0-32 per island
Status Led	1 LED (Green) island state (RUN) 1 LED (Green) MNSG 1 LED (Green) MNSR 1 LED (Green) power supply (PWR) 1 LED (Red) module error (ERR) 1 LED (Yellow) test mode
Output Voltage	5.25 V DC +/- 0.21 %)logic bus
Communication Service	Island Bus Object (class ID101) DeviceNet Object (class ID3) Connection Object (class ID5)
Marking	CE
Power Supply Type	SELV
Input Current	430 mA supply circuit
Supply Voltage Limits	19.2-30 V
Maximum Supply Current	700 A
Width	128.3 mm
Overvoltage Category	II
Depth	70 mm
Maximum Output Impedance	0.05 Ohm 100000 kHz
[Us] Rated Supply Voltage	24 V DC
Nominal Output Current	0.575 A 60-70 °C 1.2 A
Country of Origin	United States
Width	128.3 mm
Height	40 mm
Range Of Product	Modicon STB distributed I/O solution
Number Of Segments	1 primary, maximum 6 extensions
Transmission Rate	125...500 kbit/s 0-1200 m
Product Or Component Type	standard Network Interface Module
Number Of Server Device(S)	64
Integrated Connection Type	DeviceNet Open DeviceNet Vendors Assoc 5-way male 1 twisted pair network) DeviceNet Open DeviceNet Vendors Assoc HE-13 RS232 port) DeviceNet Open DeviceNet Vendors Assoc 8-way female RS232 port)
