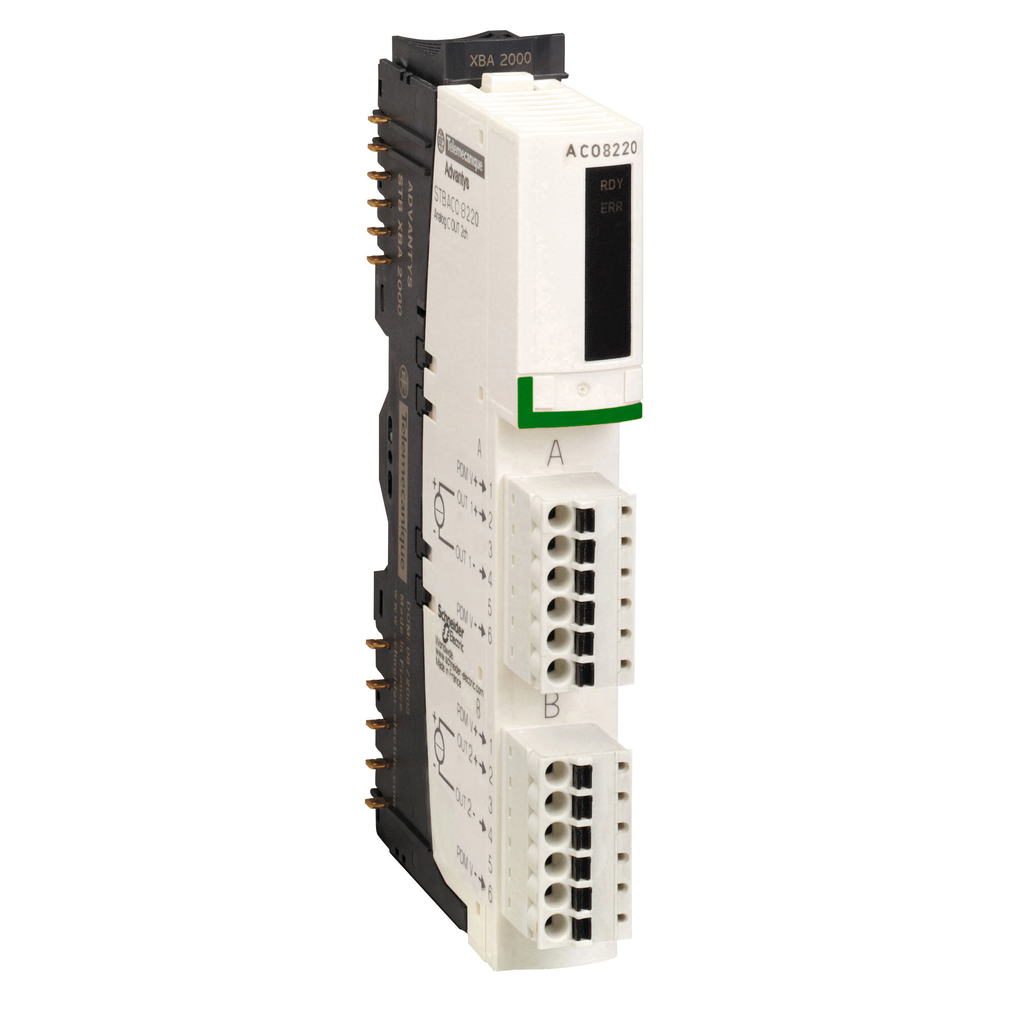

STBACO8220K
standard analog output HART kit STB - 4..20 mA - 2 O - 15 bits + sign
Specifications
| Country of Origin | Indonesia |
|---|---|
| Width | 128.3 mm |
| Height | 18.4 mm |
| Range Of Product | Modicon STB distributed I/O solution |
| Analogue Output Type | current 4...20 mA |
| Product Or Component Type | standard analog output kit |
| Analogue Output Number | 2 |
| Analogue Output Resolution | 15 bits + sign |
| Kit Composition |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Insulation Between Channels And Logic Bus | 1500 V for 1 minute |
| Cold Swapping | yes |
| Height | 18.4 mm |
| Status Led |
|
| Hot Swapping Fallback | yes for standard NIMs |
| Differential Linearity | monotonic |
| Integral Linearity | +/- 0.05 %FS |
| Supply | power distribution module |
| Analogue Output Current | 0.02-0.02 A |
| Data Format |
|
| Current Consumption | 210 mA 5 V DC logic bus |
| Marking | CE |
| Fallback Status |
|
| Temperature Drift | +/-0.005 %/°C |
| Insulation Between Channels And Actuator Bus | 200 V |
| Absolute Accuracy Error | +/- 0.3 % of full scale 25 °C |
| Response Time | 40 ms plus update time |
| Update Time | 8 ms |
| Width | 128.3 mm |
| Overvoltage Category | II |
| Depth | 70 mm |
| Product Compatibility |
|
| [Us] Rated Supply Voltage | 24 V DC |
| Product Certifications |
|
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to IEC 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C without |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Ambient Air Temperature For Operation | 32...140 °F without |
