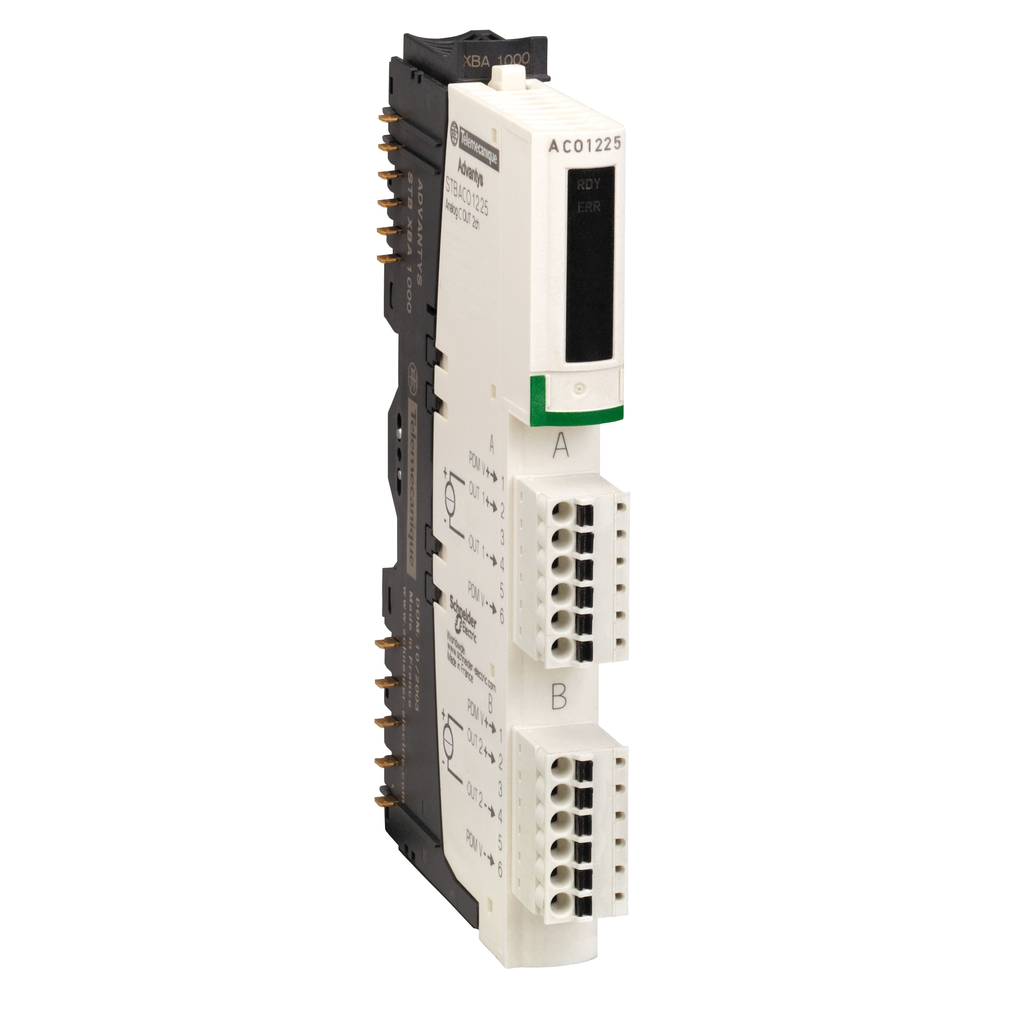

basic analog output kit, Modicon STB, 4 to 20mA, 2O, 10 bits
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue output kit has 2 analogue outputs with 10bit resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA1000. The kit includes STBXBA1000 base, STBAVI1270 module, STBXTS2100, 6-terminal spring clamp connector and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to IEC 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C without |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Ambient Air Temperature For Operation | 32...140 °F without |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Insulation Between Channels And Logic Bus | 1500 V for 1 minute |
| Cold Swapping | yes |
| Height | 13.9 mm |
| Status Led | 1 LED (Green) module status (RDY) |
| Hot Swapping Fallback | no for basic NIMs |
| Differential Linearity | monotonic |
| Integral Linearity | +/- 0.1 %FS |
| Supply | power distribution module |
| Analogue Output Current | 0.02-0.02 A |
| Data Format |
|
| Current Consumption | 40 mA 5 V DC logic bus |
| Marking | CE |
| Fallback Status | state 0 |
| Temperature Drift | +/-0.01 %/°C |
| Insulation Between Channels And Actuator Bus | 30 V |
| Absolute Accuracy Error | +/- 0.5 % of full scale per °C |
| Addressing Requirement | 2 output words |
| Response Time | 3 ms |
| Protection Type | short-circuit protection |
| Update Time | 25 ms |
| Width | 128.3 mm |
| Overvoltage Category | II |
| Depth | 70 mm |
| Product Compatibility |
|
| Conversion Time | 900 ms at +/- 0.1 % of final value |
| [Us] Rated Supply Voltage | 24 V DC |
| Country of Origin | Indonesia |
| Width | 128.3 mm |
| Height | 13.9 mm |
| Range Of Product | Modicon STB distributed I/O solution |
| Analogue Output Type | current 4...20 mA |
| Product Or Component Type | basic analog output kit |
| Analogue Output Number | 2 |
| Analogue Output Resolution | 10 bits |
| Kit Composition |
|
