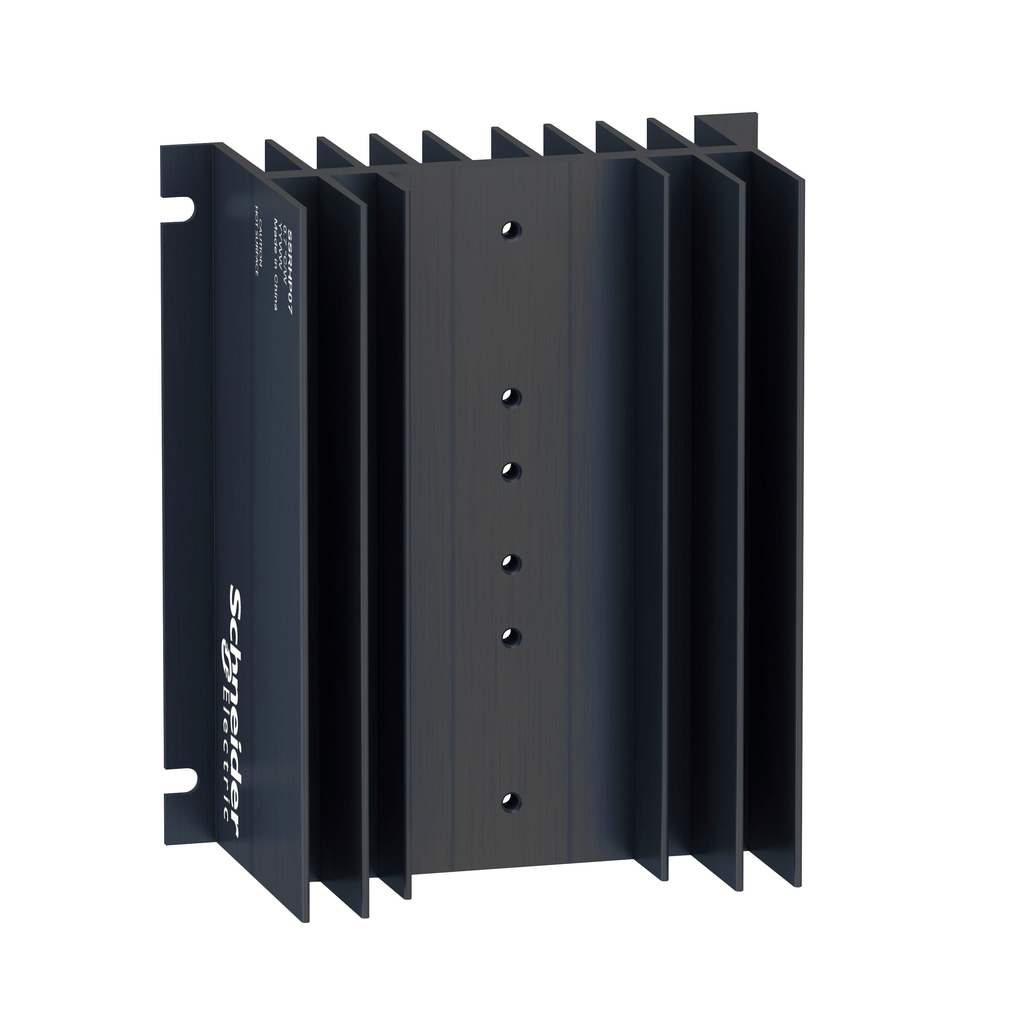

SSRHP07
heat sink, Harmony Solid State Relays, thermal resistance 0.7 degree C W
Specifications
| Height | 120.7 mm |
|---|---|
| Product Compatibility | 1 solid state relay SSR panel |
| Number Of Mounting Holes | 6 UNC 8-32 |
| Mounting Support | panel |
| Surface Finish | black anodized |
| Surface And Useful Surface | 1640 cm² |
| Thermal Resitance | 0.7 °C/W |
| Material | aluminium |
| Net Weight | 0.526 g |
| Sale Per Indivisible Quantity | 1 |
| Width | 139.7 mm |
| Depth | 66.8 mm |
| Tightening Torque | 1.7-2.2 N.m |
| Country of Origin | China |
| Width | 139.7 mm |
| Height | 120.7 mm |
| Weight | 0.526 g |
| Range Of Product | Harmony Solid State Relays |
| Product Or Component Type | heat sink |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308009 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
