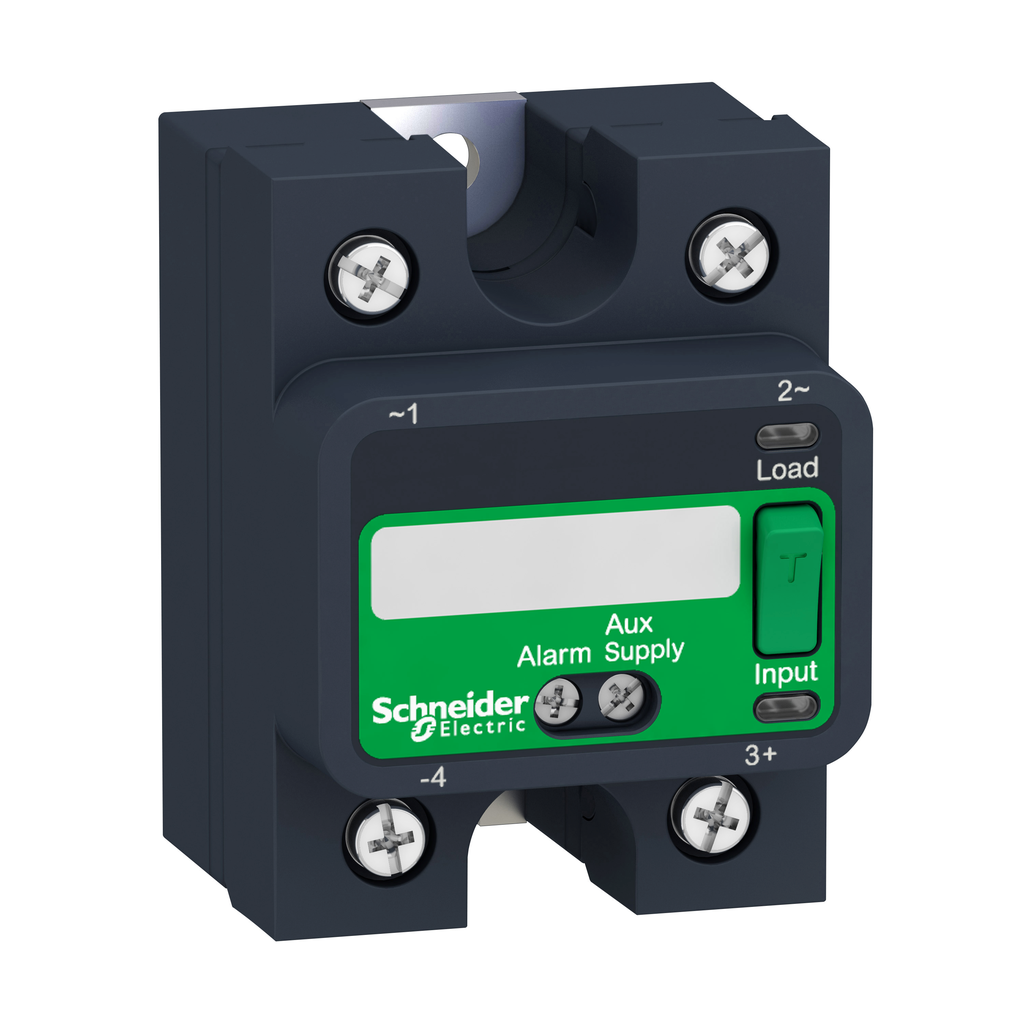

SSP1A4125BDS - Harmony, Solid state relay, 125 A, panel mount, zero voltage switching, thermal pad and smart diagnostic, input 4-32 V DC, output 48-660 V AC

SSP1A4125BDS

Harmony, Solid state relay, 125 A, panel mount, zero voltage switching, thermal pad and smart diagnostic, input 4-32 V DC, output 48-660 V AC

Add to Quote Catalogue

Specifications

Country of Origin	United States
Weight	97.1 g
Range Of Product	Harmony Solid State Relays
Mounting Support	panel
Output Switching Mode	zero voltage switching
Product Or Component Type	panel mount relay
Phase	1 phase
Solid State Output Type	SCR output zero voltage switching
Provided Equipment	thermal pad
Line Rated Current	125 A
Device Short Name	SSP1
Safety Reliability Data	MTTFd = 1875.9 years B10d = 1731395
Cos Phi	0.5-0.5 (with maximum load)
[Uc] Control Circuit Voltage	4...32 V DC
Output Voltage	48...660 V AC
Maximum Horse Power Rating	2 hp 120 V AC 5 hp 240 V AC 10 hp 480 V AC
Tightening Torque	1.5...1.7 N.m for input 2...2.2 N.m for output 17.7...19.47 lb.in for output 13.27...15.04 lb.in for input 0.5...0.6 N.m for auxillary terminal 4.4...5.3 lb.in for auxillary terminal
Insulation Resistance	1000 MOhm at 500 V DC
Thermal Resitance	0.22 °C/W junction to case
Maximum I²T For Fusing	12709 A².s for 8.33 ms at 60 Hz 13950 A².s for 10 ms at 50 Hz
Maximum Voltage Drop	<1.15 V on-state
Connections - Terminals	screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output forked type tag connectors 9.2 x 4 mm input ring lugs 9.2 x 4 mm input forked type tag connectors 11.7 x 4.5 mm output ring lugs 11.7 x 4.5 mm output
Dielectric Strength	4 kV AC for input/output 4 kV AC for input or output to case
Response Time	0.5 cycle (turn-on) 0.5 cycle (turn-off)
Surge Current	1750 A 16.6 ms
Load Current	0.15-125 A
Local Signalling	LED, steady, green ON status control input/test button actuated LED, steady, amber ON status load LED, flashing, amber control input to energise load LED, steady, red open-circuit control input LED, flashing, red load cut-off/short-circuit
Net Weight	97.1 g
[Uimp] Rated Impulse Withstand Voltage	6 kV output to case 6 kV input to output
Minimum Switching Voltage	4 V DC turn-on
Maximum Leakage Current	1 mA off-state
Ip Degree Of Protection	IP20
Control Type	with test button
Device Presentation	complete product
Electromagnetic Compatibility	electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 radiated radio-frequency electromagnetic field immunity test criteria A output ports conforming to IEC 61000-4-3 radiated radio-frequency electromagnetic field immunity test criteria B alarm port conforming to IEC 61000-4-3 electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4 surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5 surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5
Absolute Maximum Voltage	1200 V
Dv/Dt	500 V/µs off-state at maximum voltage
Maximum Output Current	30 mA 32 V DC
Maximum Switching Voltage	1 V DC turn-off
Capacitance Unbalance	8 pF for input/output
Minimum Load	150 mA
Input Current Limits	7-12 mA
Protection Device Type	type 1 - 80 A miniature circuit breaker (MCB) B type 2 - 63 A miniature circuit breaker (MCB) B
Auxiliary Connection Terminal	screw-type connector, 0.5...1.5 mm² AWG 20...AWG 16)slotted Philips
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1505006EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI1505006EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CE EAC UL CSA
Ambient Air Temperature For Operation	-40-80 °C
Standards	CSA C22.2 No 14-13 IEC 62314 UL 508 IEC 60950-1
Pollution Degree	2
Marking	CE EAC CSA UL
Ambient Air Temperature For Storage	-40-125 °C
Overvoltage Category	III
