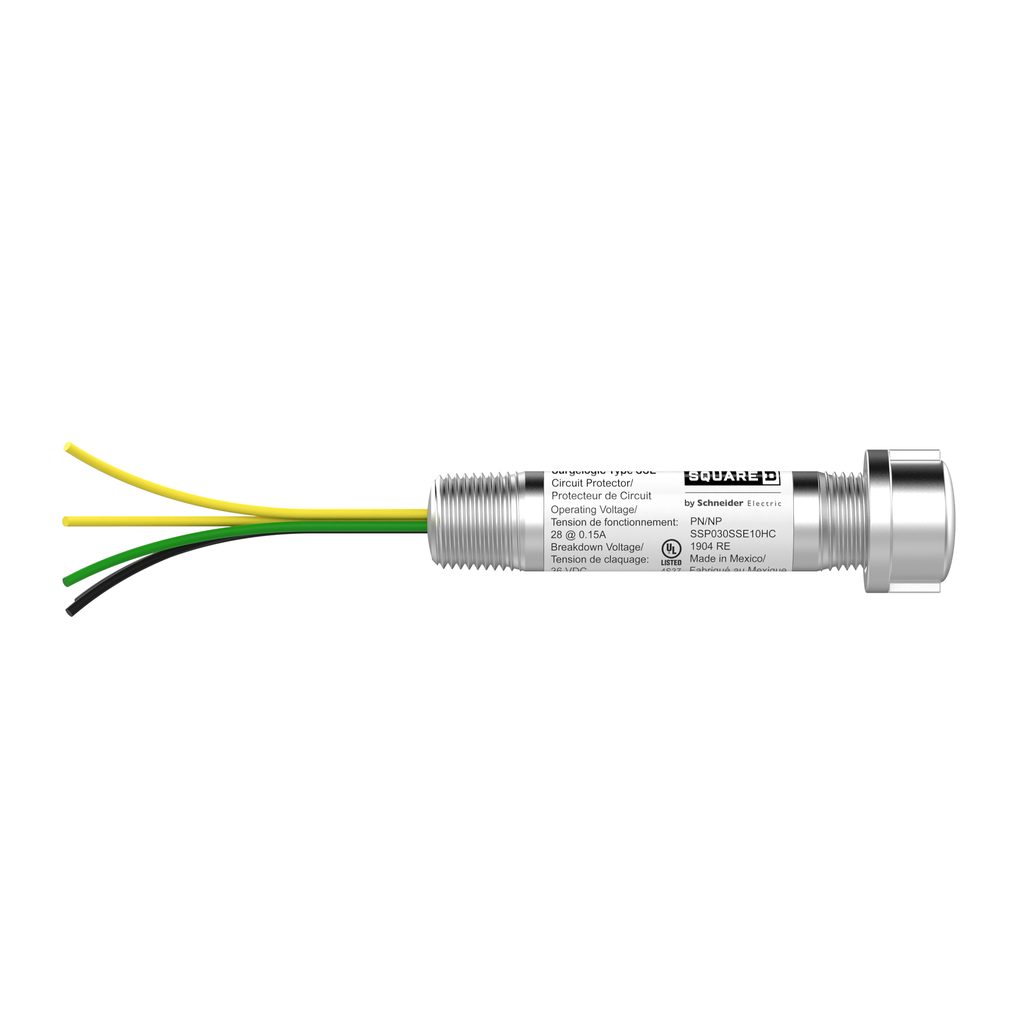

SSP030SSE10HC
Surge protection device, Surgelogic, SSE, 0.15A, 28VDC, 10kA, pipe nipple mount, capped
Surgelogic™ Type SSE systems are Hybrid Surge Protective Device for Circuit Protection (SPD/CP) encapsulated in a stainless steel enclosure, making it suitable for use in severe environments. The multi-stage hybrid suppressors address overvoltage transients with a gas tube and silicon avalanche technology to protect network signals on critical panels. This unit provides 10,000 Amps of surge current protection for loads up to 0.15 Amps.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 12.7 mm |
|---|---|
| Line Rated Current | 0.15 A |
| Switching Voltage | 36 V DC |
| Surge Current | 10 kA |
| Width | 119.38 mm |
| Depth | 12.7 mm |
| [Ue] Rated Operational Voltage | 28 V DC |
| Device Mounting | pipe nipple |
| Country of Origin | Mexico |
| Width | 119.38 mm |
| Height | 12.7 mm |
| Product Or Component Type | surge protection device |
