SSP030SLACSE39
Surge protection device, Surgelogic, SLACSE, 15A, 120V, 39kA, surface mount, hybrid

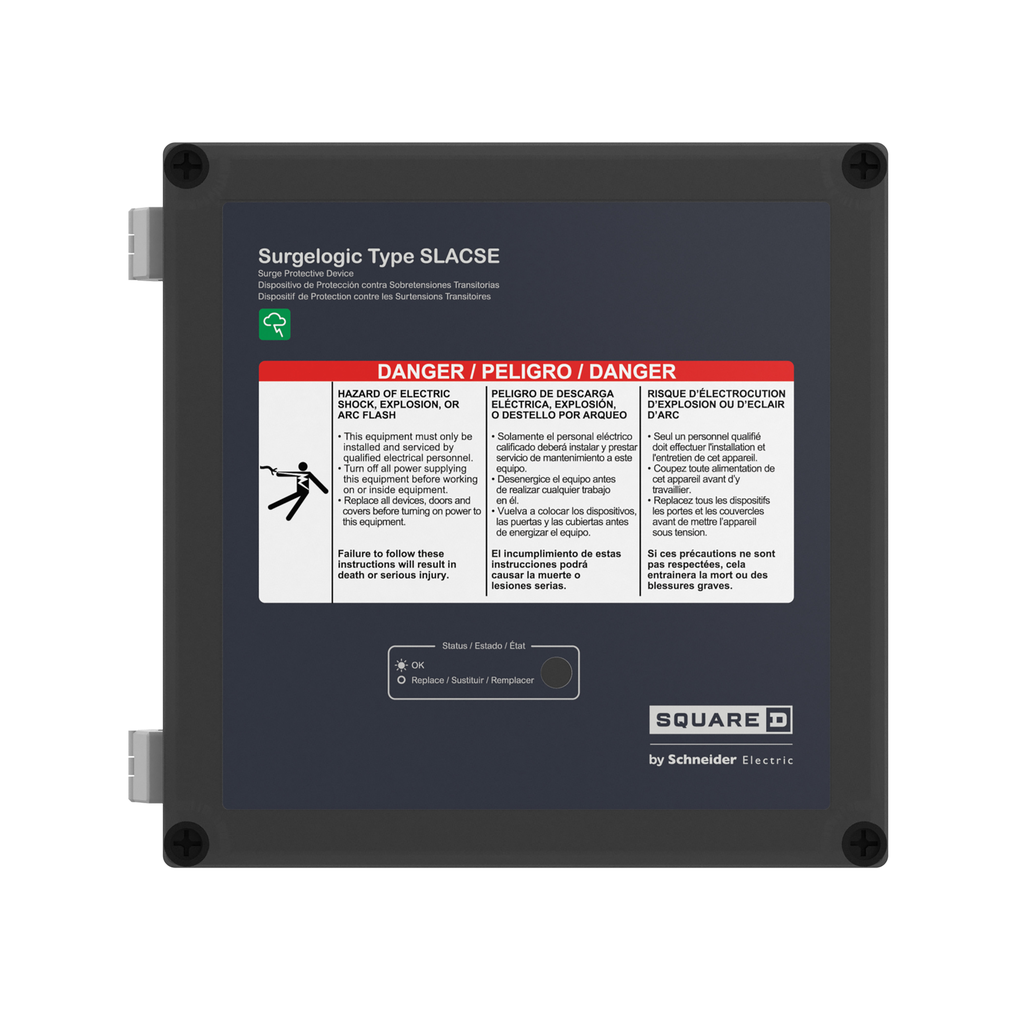

Surgelogic™ Type SLACSE systems are Hybrid Surge Protective Device with Data Circuit Protection (HSPD/DCP) that offer hybrid transient surge protection for AC power and signal line. This module is designed to protect electronic instruments used by the water/wastewater industries in an all-in-one NEMA-4X polycarbonate case. This unit provides 39,000 Amps of surge current protection for loads up to 15 Amps.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 17.78 mm |
|---|---|
| Surge Current |
|
| Line Rated Current | 15 A |
| Width | 17.78 mm |
| Depth | 7.62 mm |
| Rated Voltage | 120 V |
| [Ue] Rated Operational Voltage | 30 V DC |
| Device Mounting | surface |
| Country of Origin | Mexico |
| Width | 17.78 mm |
| Height | 17.78 mm |
| Product Or Component Type | surge protection device |
